Section 4: Input/ Output
2/2013 90 51303 Rev. 1

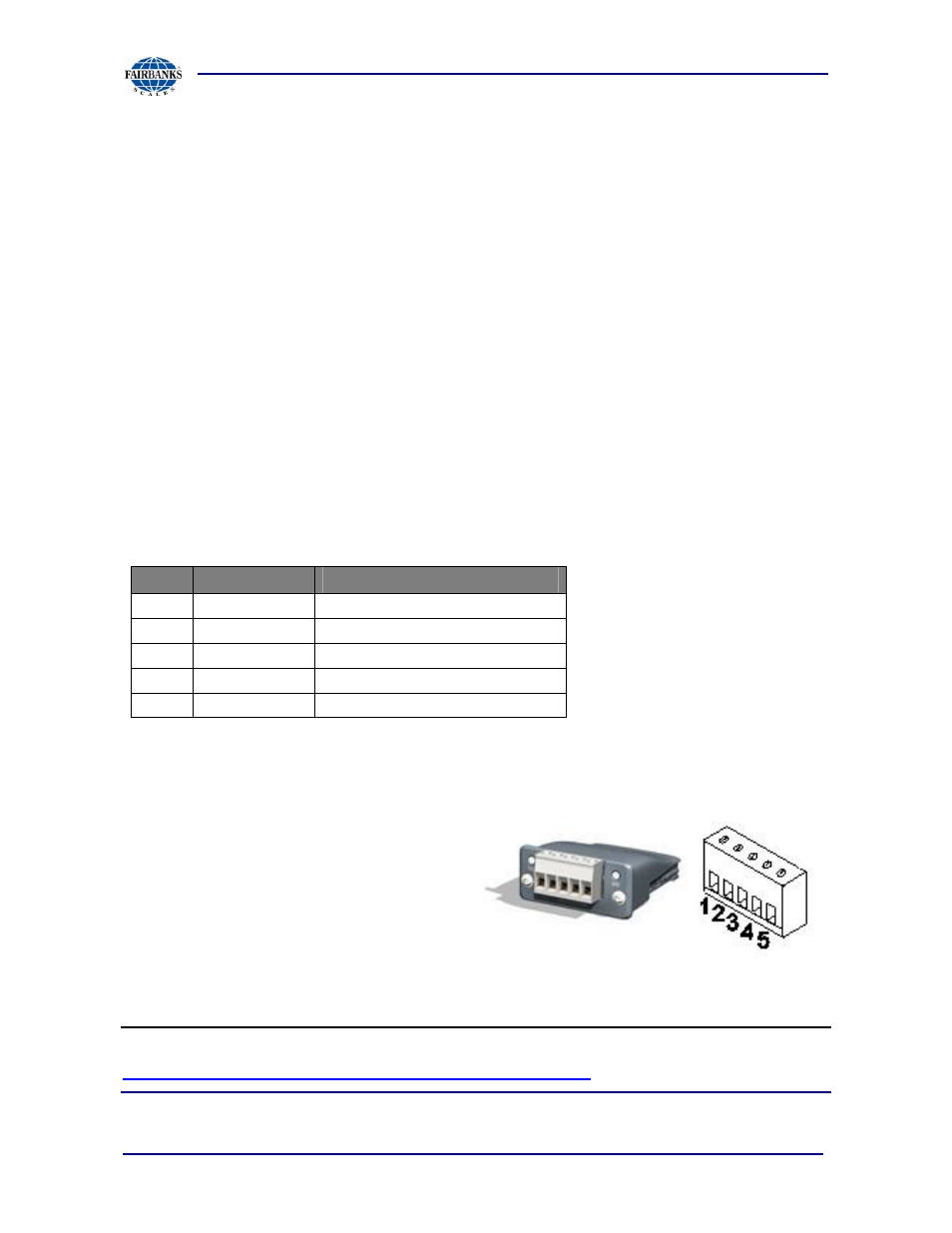

5.8.2. DEVICENET
DEVICENET ( 30923 ) is a low-cost communications link that connects industrial
devices to a network, eliminating expensive hardwiring.
– It is based on a broadcast-oriented, communications protocol the CAN.
– The
CAN Protocol
was originally developed by BOSCH for the European
automotive market for replacing expensive wire harnesses with low-cost
network cable.
– The
CAN Protocol
has fast response and high reliability for applications like
anti-lock brakes and air bags.
DEVICENET also provides power to the network. This allows devices with limited
power requirements to be powered directly from the network.
– This reduces connection points and physical size.
– The maximum network size is up to 64 Nodes, with message data packets up
to 8 bytes.
NOTE: Additional information and EDS files are available at the following website.
http://www.hms.se/products/DeviceNet.shtml .
WIRE SIGNAL DESCRIPTION
1 V Negative bus supply voltage
2 CAN_L CAN low bus line
3 SHIELD Cable shield
4 CAN_H CAN high bus line
5 V+ Positive bus supply voltage
