Section 4: Input/ Output

2/2013

82

51303 Rev. 1

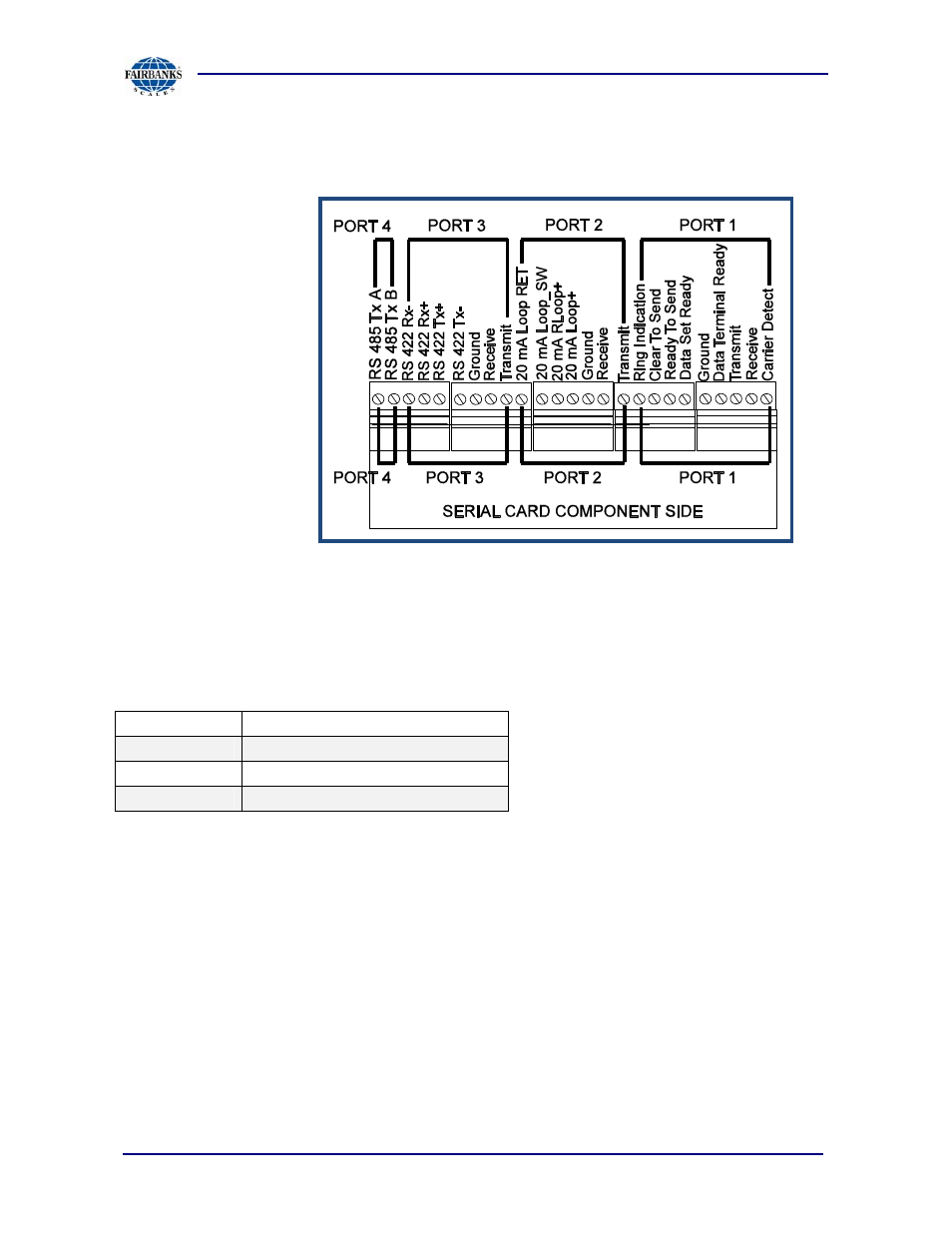

5.4. SERIAL CARD













The

SERIAL CARD

(

30921

) provides four (4) outputs with a maximum of two

(2) cards

per Instrument. See the Port Assignments listed below.

– A bus cable is provided to connect the multi-function board to the expansion

card.

PORT 1

RS-232 (Full Duplex 9 Pin Port)

PORT 2

RS-232 OR 20 Ma *

PORT 3

RS-232 OR RS-422 *

PORT 4

RS-485

*

Only one (1) may be selected at a time, and not both.
