Section 2: Operations
2/2013 26 51303 Rev. 1
2.5.4. LOAD CELL DIAGNOSTICS
Instruments equipped with Intalogix ®
technology have load cell diagnostics
features for easier troubleshooting
capabilities.
1. To view the diagnostic information, select
the correct scale.
 Select BACK: OPERATOR MENU to
return to the Operator Menu.

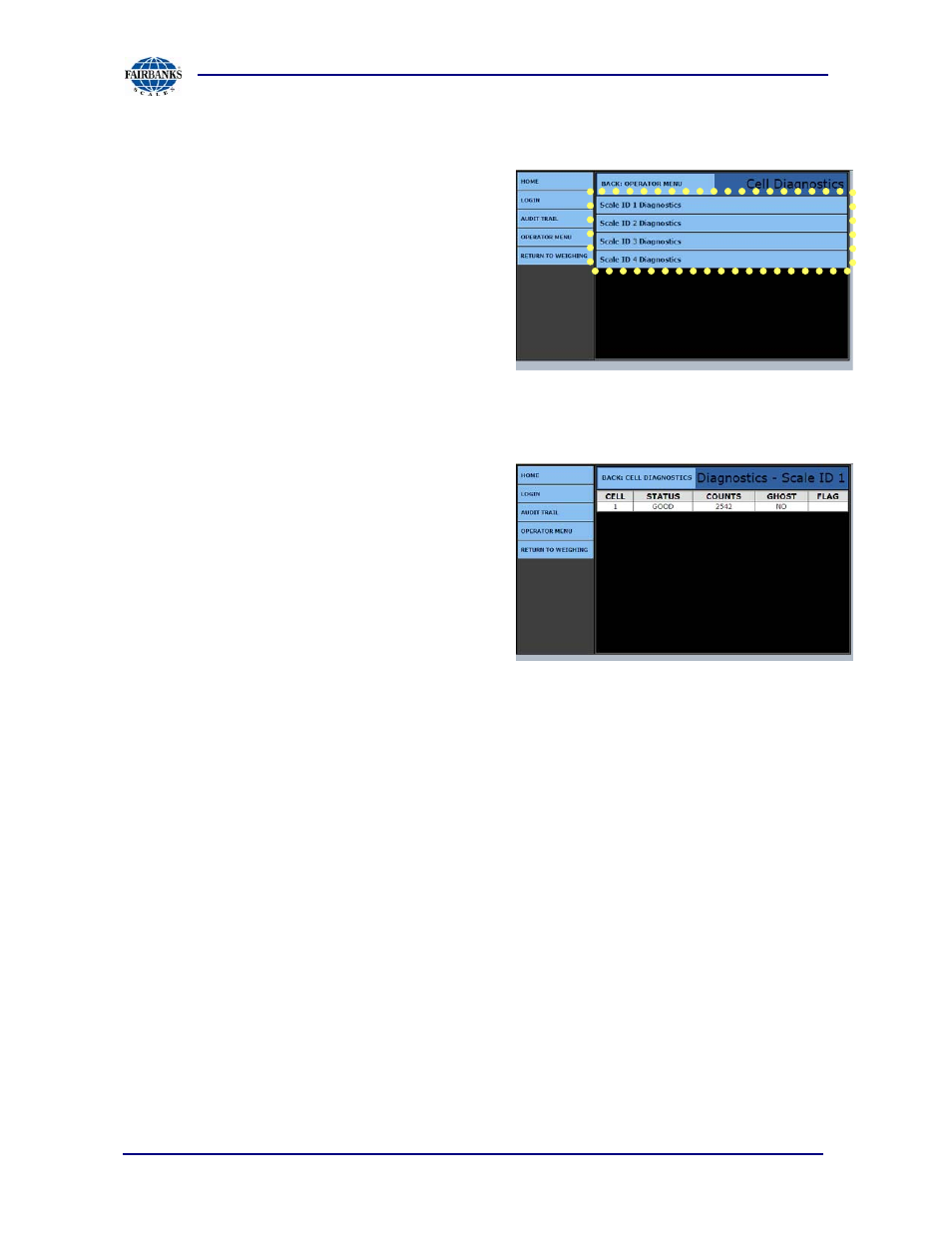

A. SCALE ID X DIAGNOSTICS
The diagnostic screen gives a quick snapshot
of how each load cell is performing.
 CELL: Identifies the load cell in the scale
platform.
 STATUS: Compares the load cell output
to stored calibration values and posts a
GOOD
or BAD condition.

COUNTS: Displays the load cell’s
current counts.
 GHOST: Ability to electronically “mimic” or duplicate a load cell if equipped with
an Intalogix ™ Interface for load cell communications (preventing system failure
and/or shutdown).
 FLAG: Visual flags “ * ” are used to identify problem load cell(s) on diagnostic
screen until flag is manually cleared This improves the ability to identify
intermittent issues.
 Select BACK: CELL DIAGNOSTICS to return to the Cell Diagnostics
Menu
.
