Electricalbasemoduleoutput
19. ELECTRICAL BASE MODULE OUTPUT
19.1. Collective socket

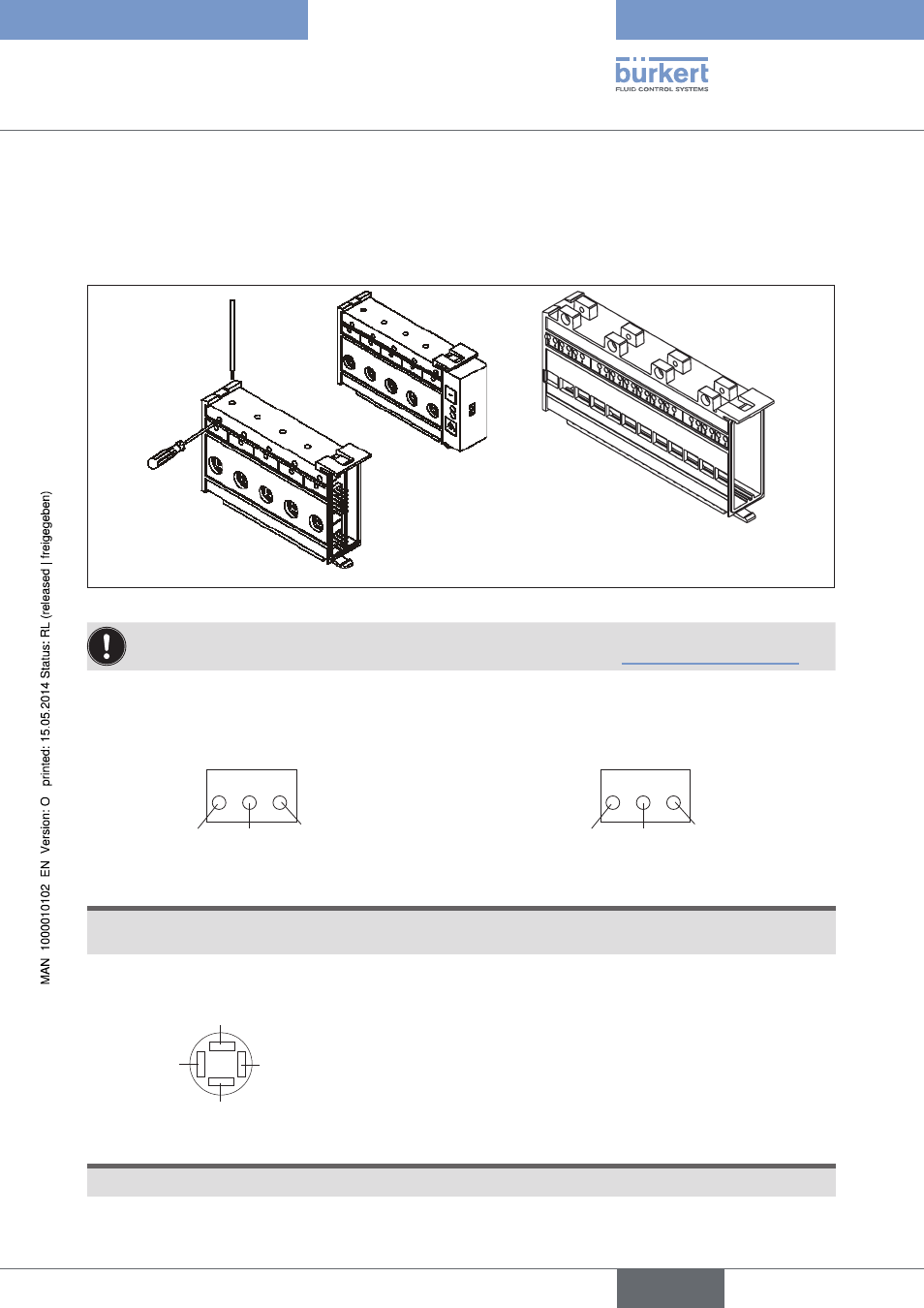

Figure 66: Collective socket
Electrical base module collective socket only in connect with the collective socket module for valve
outputs (see module for the conventional electrical connection technology “Collective socket module”).
19.1.1. Allocation plan
Valve types 6510, 6511, 6524, 6525: Valve types 0460, 6524 (2 x 2/3-way valve):
+ 24 V Ground (GND)
n.c. / not
used + 24 V Ground (GND) Ground (GND)
NOTE!
For the valve types 6524 (2 x 3/2-way valve) and 0460 the outputs are negative switched: GND are switched;
24 V are applied.
Valve types 0460, 5470, 6512, 6513, 6516, 6517, 6526 and 6527:
Ground (GND) + 24 V
FE
n.c. / not used
NOTE!
The outputs are positive switched: 24 V are switched; GND is applied.
