Electricalbasemoduleoutput
19.4. Valve outputs with external switch-off
Nominal voltage U
N
24 V

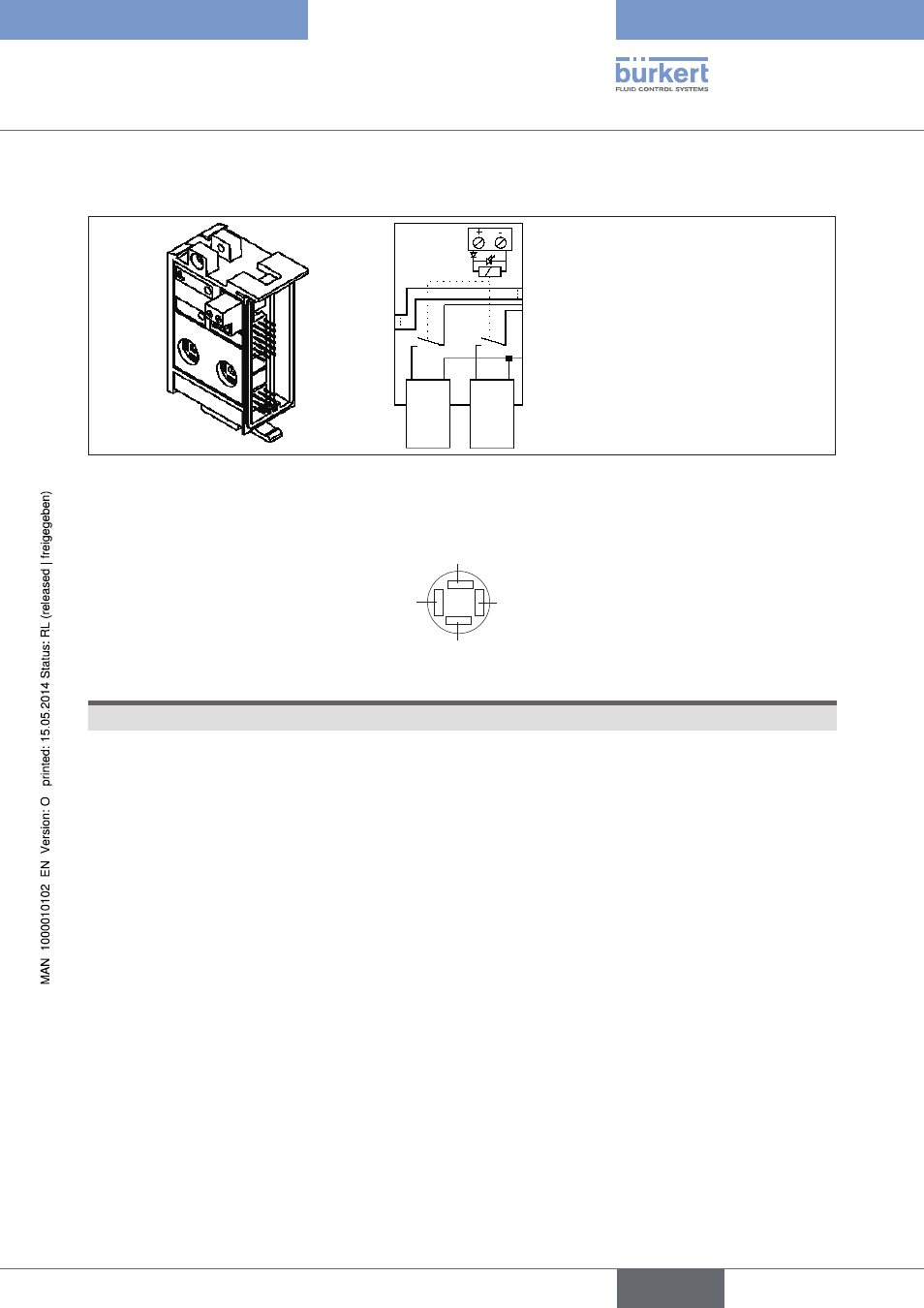

Figure 70: Valve outputs with external switch-off - circuit diagram of the valve outputs
19.4.1. Allocation plan
Valve types 5470, 6512, 6513,
6516, 6517, 6526, 6527:
Ground (GND) + 24 V
FE
n.c. / not used
NOTE!
The outputs are positive switched: 24 V are switched; GND is applied.
