Configurationandparameter
settingsforProfinetIO
The main terminal is assigned to the first 7 slots with 3 output modules (slots 1–3) and 4 input modules
(slots 4–7). Each slot contains 8 bits and so can serve 8 valves or 8 inputs:
Output modules
Slot 1 Slot 2 Slot 3
Valve 1–8 Valve 9-16 Valve 17-24
Input modules
Slot 4 Slot 5 Slot 6 Slot 7
Input 1–8 Input 9-16 Input 17-24 Input 25-32
The RIO nodes follow then in chronological order. 7 slots per node are assigned by default.

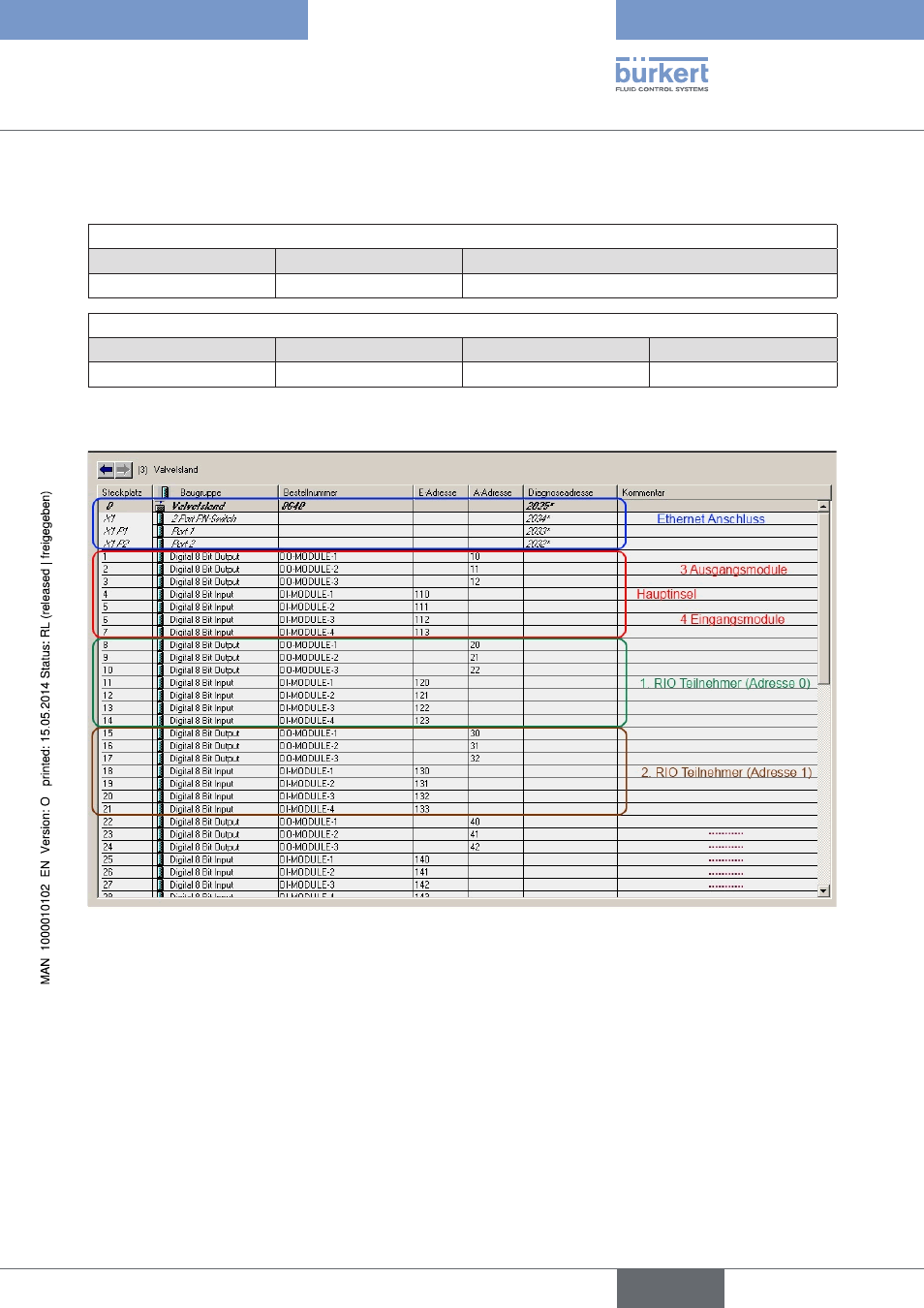

Figure 61: Example of slot assignment of a main terminal 8640 with 2 nodes
