86
Configurationandparameter
settingsforProfinetIO
16.
CONFIGURATION AND PARAMETER
SETTINGS FOR PROFINET IO
16.1. Hardware configuration by GSDML based on the
example of Siemens STEP 7
To configure the network master a software program such as Siemens STEP 7 is required.
Siemens's SIMATIC S7-300 CPU 315-2 PN/DP was used for the example configuration procedure.
Before accessing PROFINET IO slave 8640 the relevant GSDML must be imported into the hardware catalog of
the tool. For details on how to do this refer to the software manual.
16.1.1. Configuration: Main terminal with 0 up to 8 RIO modules
Depending on the number of connected Rio modules, the right Device Access Point (DAP) must be selected
from the hardware catalog in the right-hand screen pane (see “Figure 60”). It can be dragged and dropped onto
the PROFINET network.
The default device name is "ValveIsland". As PROFINET IO slave 8640 has the same name by default, a con-
nection can be made without making any further changes. As soon as multiple devices have been configured,
their device names must match the configured names. The device names can be assigned as described in
chapter “15.6.3. Device configuration” by way of the Web server or with STEP 7 (double-click on DAP and
change device name).

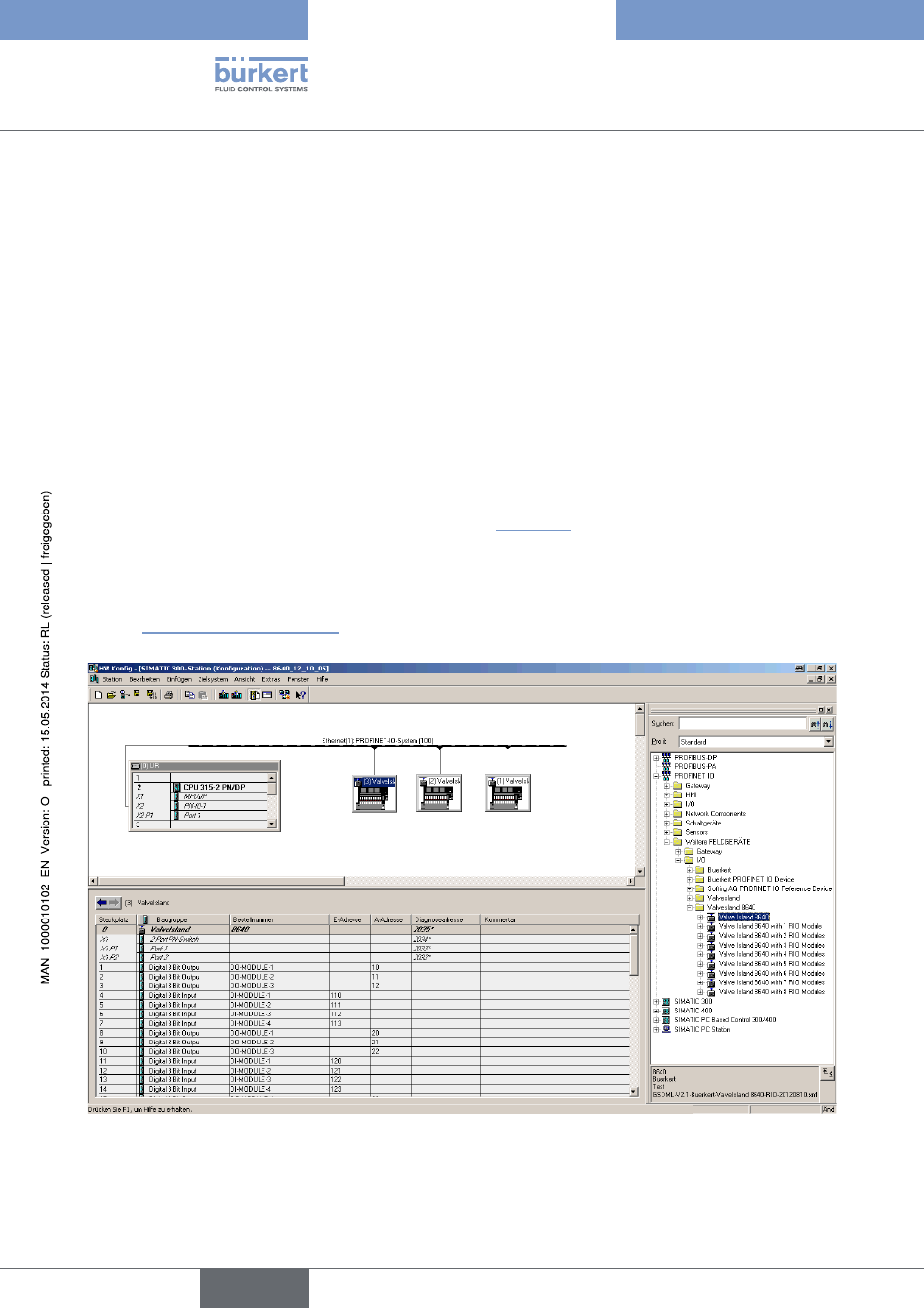

Figure 60:
Konfiguration
english
Type 8640
