106
Pneumaticbasemodule
21. PNEUMATIC BASE MODULE
21.1. General description
The pneumatic base module features the working connections for the following applications. Several modules can
be placed in rows by connecting them. The seal on the outside is retained. The P-connection can be sealed by using
a bulkhead. This allows movement in one valve block with different operating pressures.
Variants
The variant versions differ in add-on dimension, number of valve locations, wiring diagram of the valves, version of
the working connections and optional use of non-return valves Not all conceivable variants have been implemented.
3
1
5
RS in R/3
P shut-off
RS in S/5

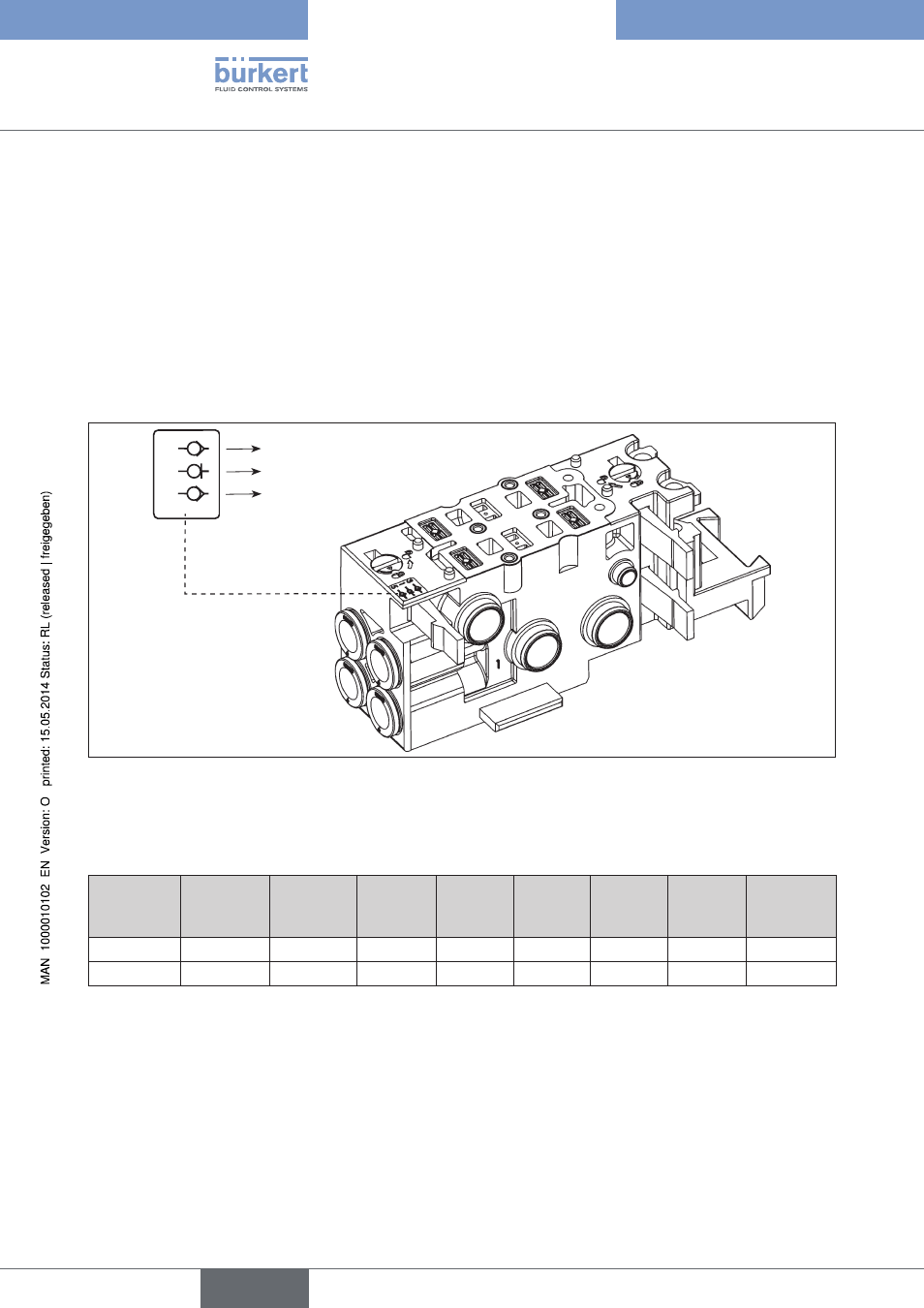

Figure 76: Example of a pneumatic base module (Type MP11 / 2-fold)
Add-on dimension
Larger valves also require wider base modules. This allows a higher flow rate to be implemented. Currently the fol-
lowing add-on dimensions are available:
Variants Add-on
dimension
mm
2-fold
mono
2-fold
2 x mono
2-fold
bistable
3-fold
mono
4-fold
mono
8-fold
mono
8-fold
2 x mono
MP11 11 X* X* X - - X* X*
MP12 16.5 X - X X X - -
* Also with P shut-off
Number of valve locations per module
As module optimization is based on low granularity, cost savings, structure of valve discs and utilization of the elec-
tronics, it is useful to have modules with a varying number of valve locations.
Type of working connections
Whether quick plug-in connections or thread - you as the customer decide which is the optimum variant for you.
english
Type 8640
