104
Electricalbasemoduleinput
20. ELECTRICAL BASE MODULE INPUT
20.1. Terminal inputs for repeaters (initiators)

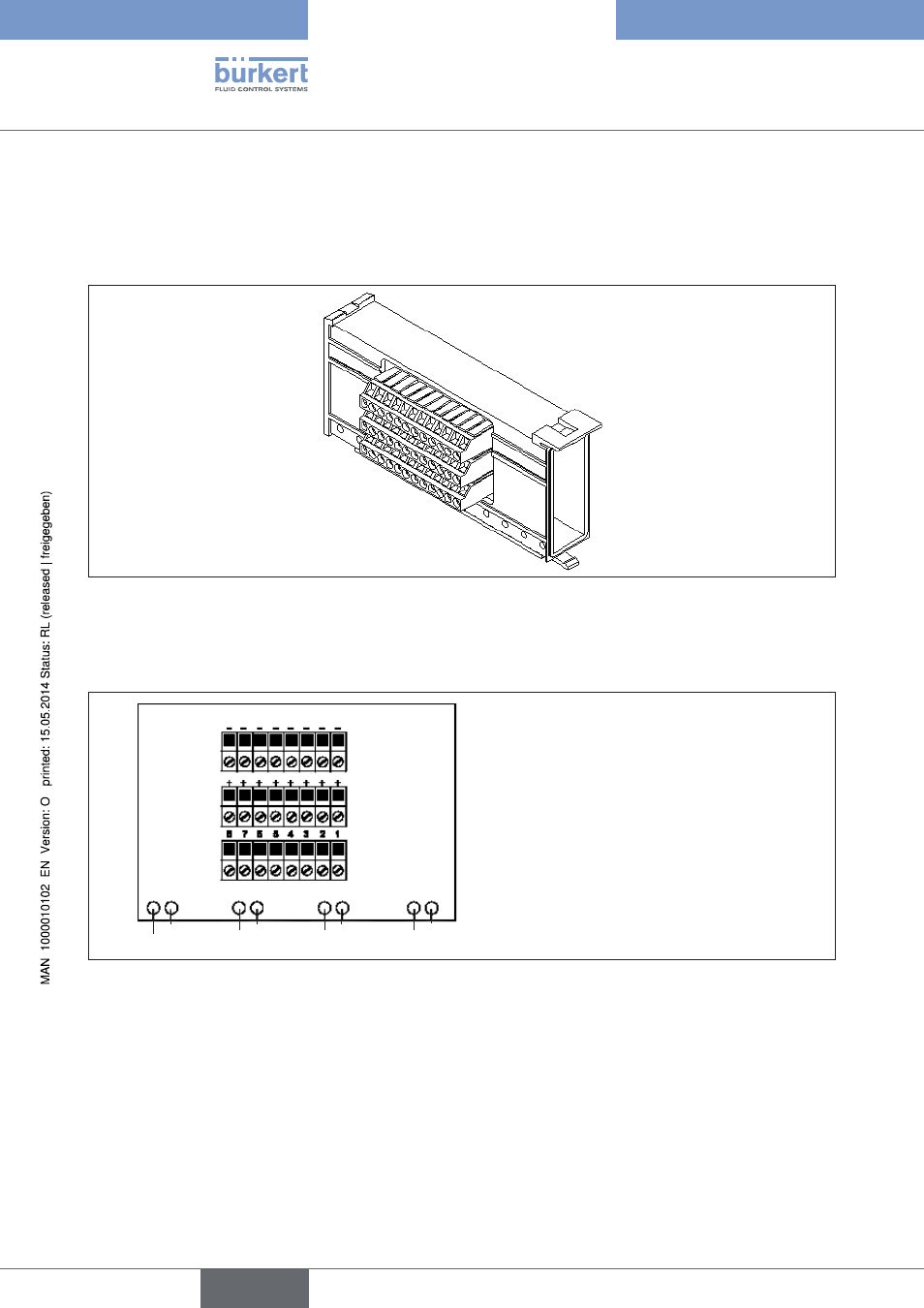

Figure 71: Electrical base module for repeater inputs (initiators) for terminals (IP20)
20.1.1. Terminal assignment
LED input 7
LED input 8
LED input 5 LED input 3 LED input 1
LED input 6 LED input 4 LED input 2
Input voltage + 24 V
Signal
0 (logical)
0 to 5 V
1 (logical) 12 to 30 V
Input current for 1-signal: ≤10 mA
Figure 72: Terminal assignment
english
Type 8640
