Sub-Index
Table of Contents
Default
Access
read
write
00 hex
Number of object entries
(here 4: 01 hex - 04 hex)
x
-
01 hex
State of the first group of inputs
00 hex - FF hex
x
02 hex
State of the second group of inputs
00 hex - FF hex
x
03 hex
State of the third group of inputs
00 hex - FF hex
x
04 hex
State of the fourth group of inputs
00 hex - FF hex
x
14.4. Input filter
Object 6003
hex
Input filter
The input filter suppresses disturbances which affect the input modules. Therefore the activation of this input filter
is always recommended.
When the filter is activated only signals are recognized which have a duration of ≥ 2 ms. The regulations
contained in EMC legislation require that the input filter be activated.
Length 8 bits
Default value 01
hex
0 = input filter deactivated
1 = input filter activated
14.5. Mode inputs
Object 601F
hex
Mode inputs
The input modes can be used to achieve different assignments of the inputs (repeaters) to the process image of
the inputs (PAE).
Length 8 bits
Default value without EME 00
hex
with EME 01
hex
14.5.1. Normal mode
In normal mode all outputs are read in from right to left.
Extension module
inputs
16
15
14
13 12 11 10
9 8 7
6
5 4 3
2
1
Power supply earth
Power supply +24 V
Inputs
8
7
6
5
4
3
2
1
8
7
6
5
4
3
2
1
16
15
14
13 12 11 10
9 8 7
6
5 4 3
2
1
Power supply earth
Power supply +24 V
Inputs
8
7
6
5
4
3
2
1
8
7
6
5
4
3
2
1
EME 32
Input module (e.g. 16-fold)
Input module (e.g. 16-fold)
Byte 3
Byte 1
Byte 0
Byte 2

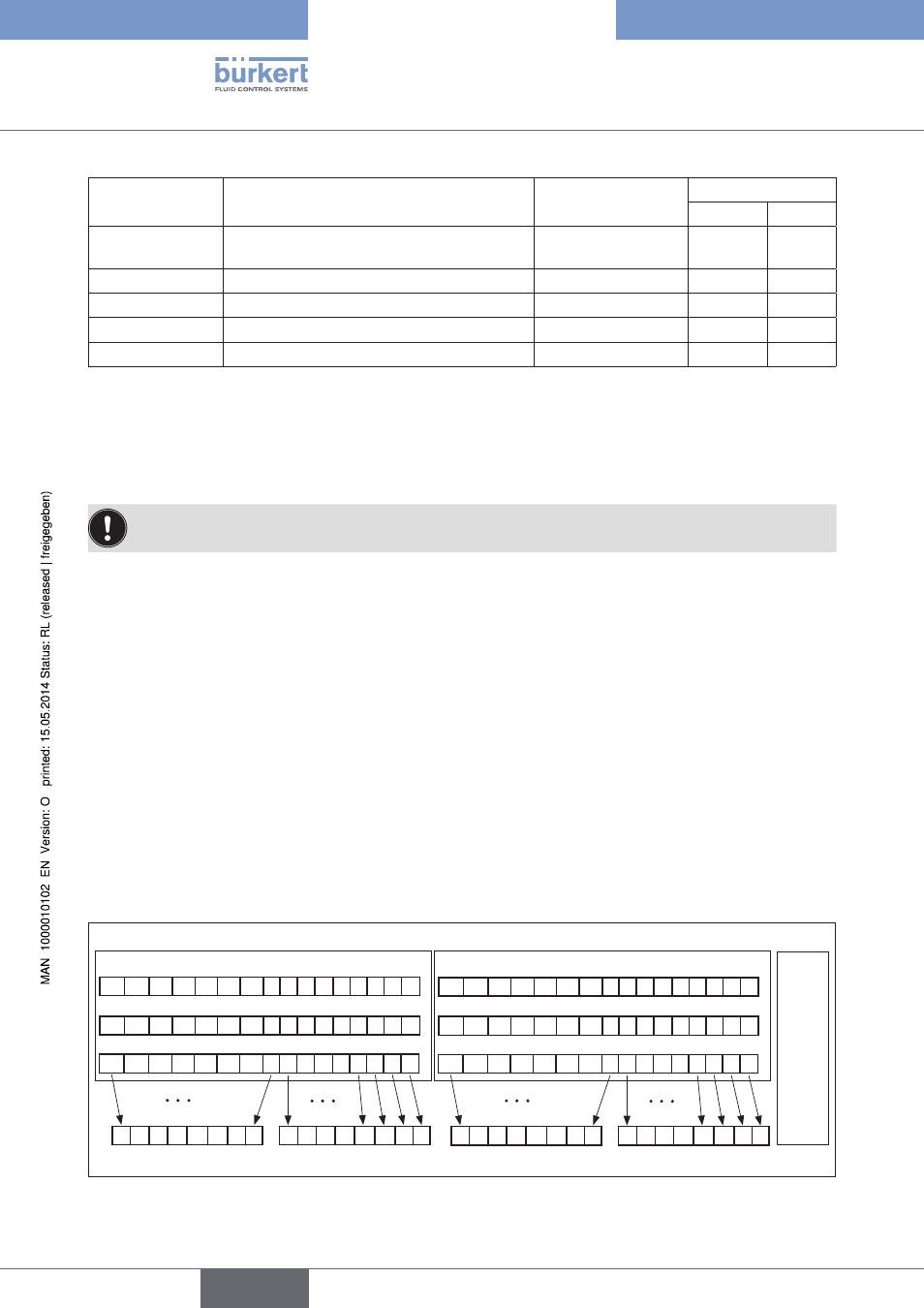

Figure 45:
Normal mode
