101
Electricalbasemoduleoutput
19.3. Valve outputs with manual / automatic switching
Using this module, the connected valves can be switched to manual or automatic as required.

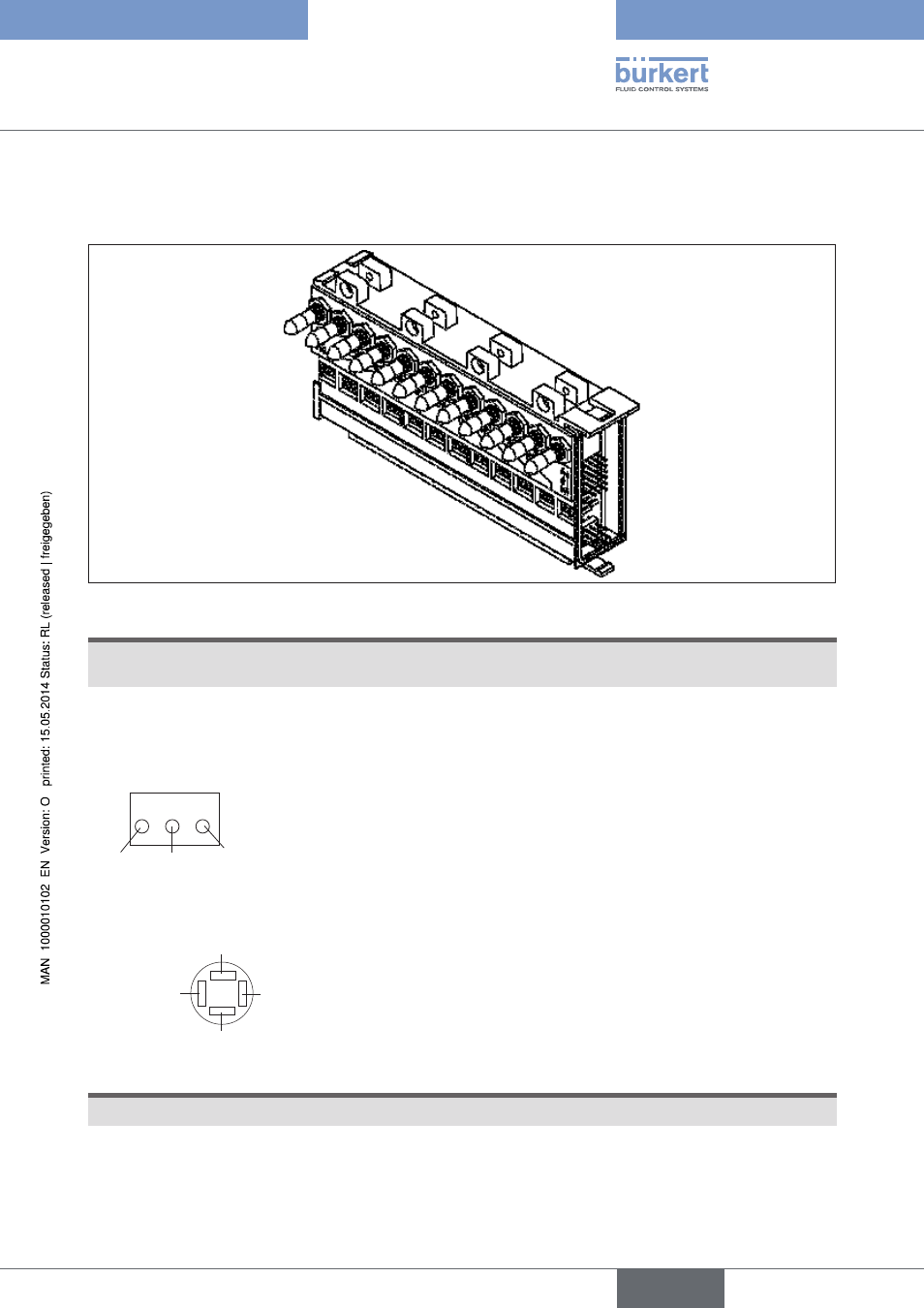

Figure 68: Electrical base module for valve outputs with manual / automatic switching (12-fold)
NOTE!
Locked switches! The manual / automatic switches have a mechanical locking mechanism. Before being deployed,
the lever must be pulled out of the lock position!
19.3.1. Allocation plan
Valve types 6510, 6511, 6524, 6525:
+ 24 V
Ground (GND)
n.c. / not
used
Valve types 0460, 5470, 6512, 6513, 6516, 6517, 6526 and 6527:
Ground (GND) + 24 V
FE
n.c. / not used
NOTE!
The outputs are positive switched: 24 V are switched; GND is applied.
