FELDBUSmoduleDeviceNet
11.3.1. Field bus module address: DIP switches 1 to 6
The address of the field bus module can be set on DIP switches 1 ... 6 in the range 0 ... 63.
DIP 1
DIP 2
DIP 3
DIP 4
DIP 5
DIP 6
Address
OFF
OFF
OFF
OFF
OFF
OFF
0
ON
OFF
OFF
OFF
OFF
OFF
1
OFF
ON
OFF
OFF
OFF
OFF
2
ON
ON
OFF
OFF
OFF
OFF
3
...
ON
ON
ON
ON
ON
ON
63
The baud rate can be set on DIP switches 7 and 8:
DIP 7
DIP 8
Baud rate
OFF
OFF
125 kbaud
ON
OFF
250 kbaud
OFF
ON
500 kbaud
11.4. LED status display
BUS_STATUS (BF)
FAILURE_NUMBER (FN)
U_LOGIK_OK (U
l
)
BUS_STATUS (BO)
FAILURE_SELECT (FS)
U_TREIBER_OK (U
0
)

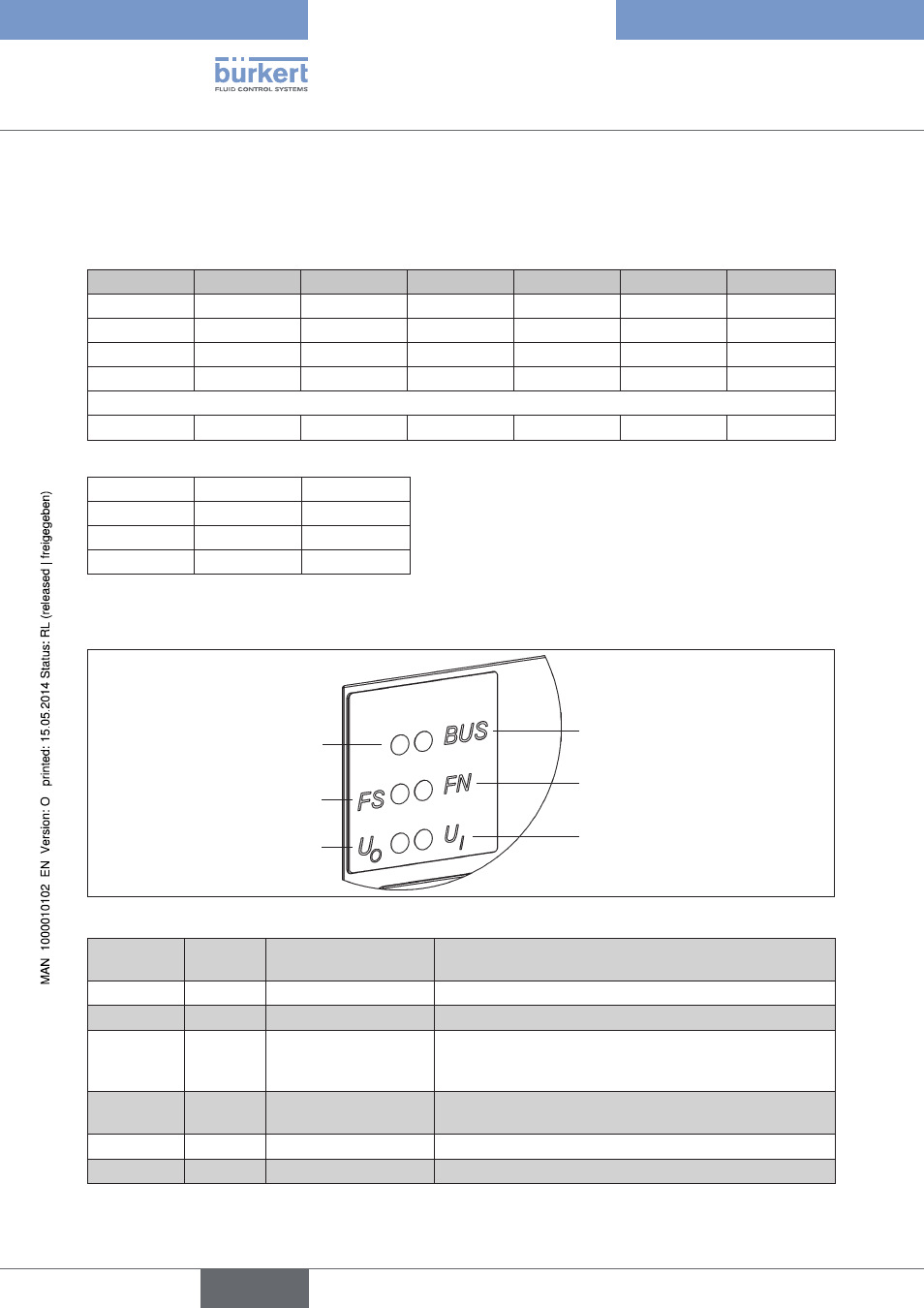

Figure 35:
LED state display (detail)
Abbre-
viation
Colour
Description
Explanation
BO
green
Bus status
See state of bus status LEDs
BF
red
Bus status
See state of bus status LEDs
FS
yellow
Failure Select
Determines the function of the FN LED:
FS lit up: FN displays fault type
FS not lit up: FN displays failure number
FN
red
Failure Number
The number of flash impulses indicates the fault type or the
failure number depending on whether FS is lit up or not
U
l
green
U LOGIC OK
Voltage for logic supply, inputs and bus interface present
U
0
green
U driver OK
Voltage for outputs present
