SMX System MultiMatrix Switcher • HTML Configuration and Control
90
Physical Configuration
The Physical Configuration read-only page lists the currently installed boards for the SMX
system, showing the size and the total slots of that frame. For each slot, it shows the
installed board function or type, board size, and the plane address allocated to that board
(see figure 48).

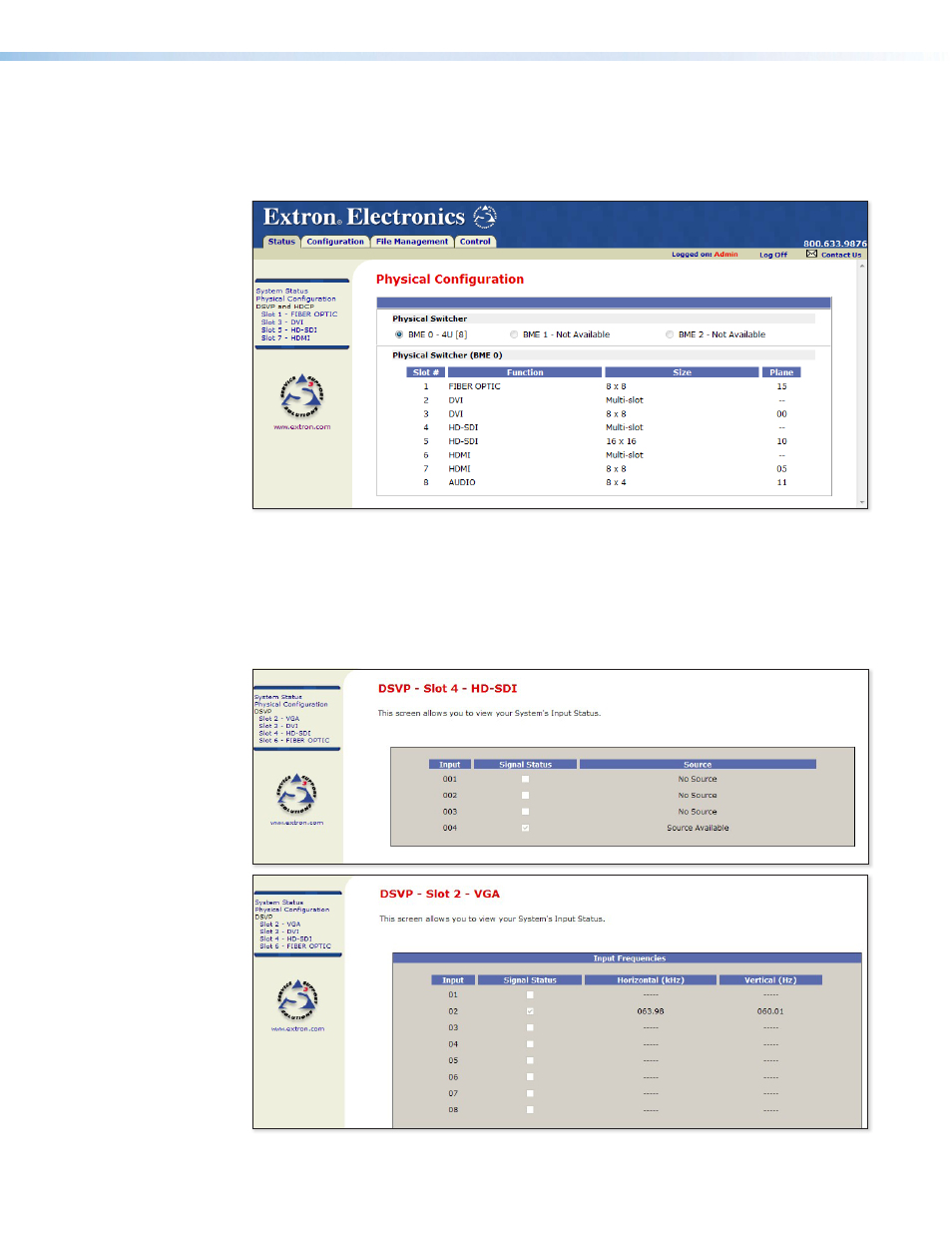

Figure 48.
Physical Configuration Page
DSVP
The Digital Sync Validation Processing (DSVP) page displays the current signal status and
source of connected video inputs per board. For VGA/RGBHV boards, the horizontal and
vertical frequencies per slot are also shown (see figure 49).
Figure 49.
DSVP Pages for HD-SDI (top) and VGA (with H and V Data)
