Configuring via the rear panel rs232/rs422 port, Using the front panel, Viewing and adjusting the audio input level – Extron Electronics SMX System User Guide User Manual

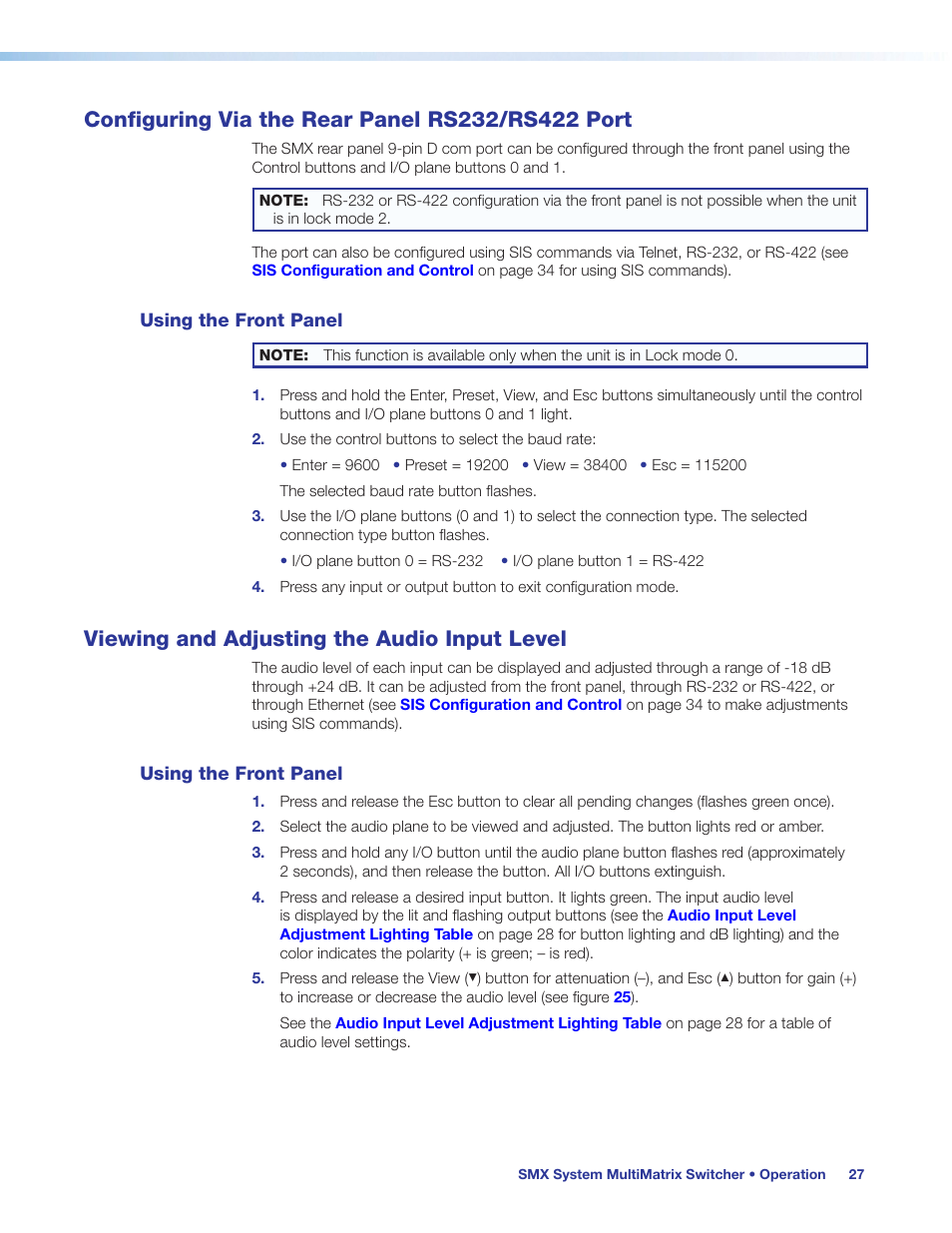

Page 33: Configuring via the rear panel, Rs232/rs422 port, Configuring the rear panel rs232/rs422 port
