Creating ties, An example of creating an input to output tie – Extron Electronics SMX System User Guide User Manual

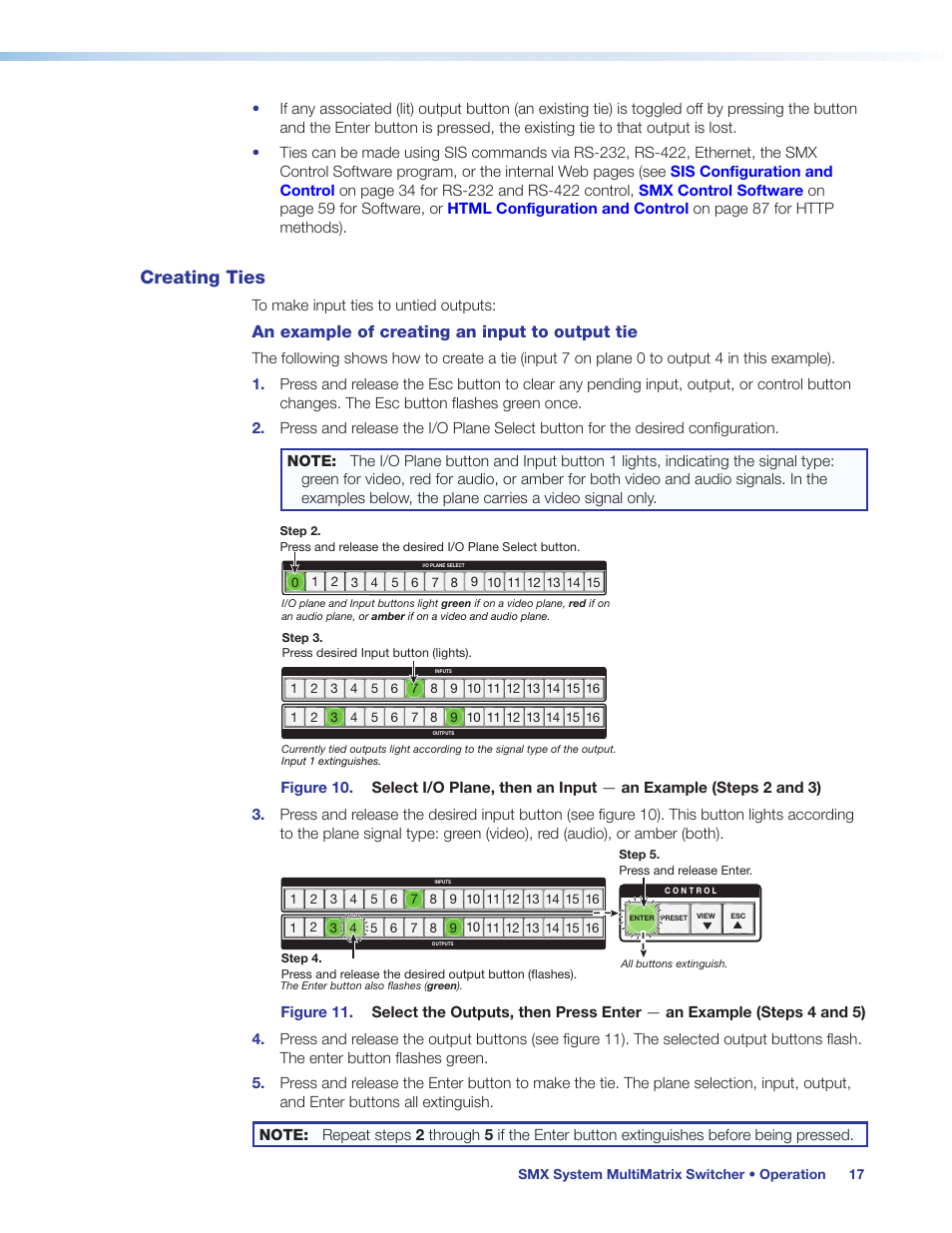

Page 23
