Text mode
Original mode

iRIS Datalogger User Guide V1.50

iQuest (NZ) Ltd - PO Box 15169, Hamilton, New Zealand Tel: +64 7 857-0810 Fax: +64 7 857-0811 Email: [email protected]

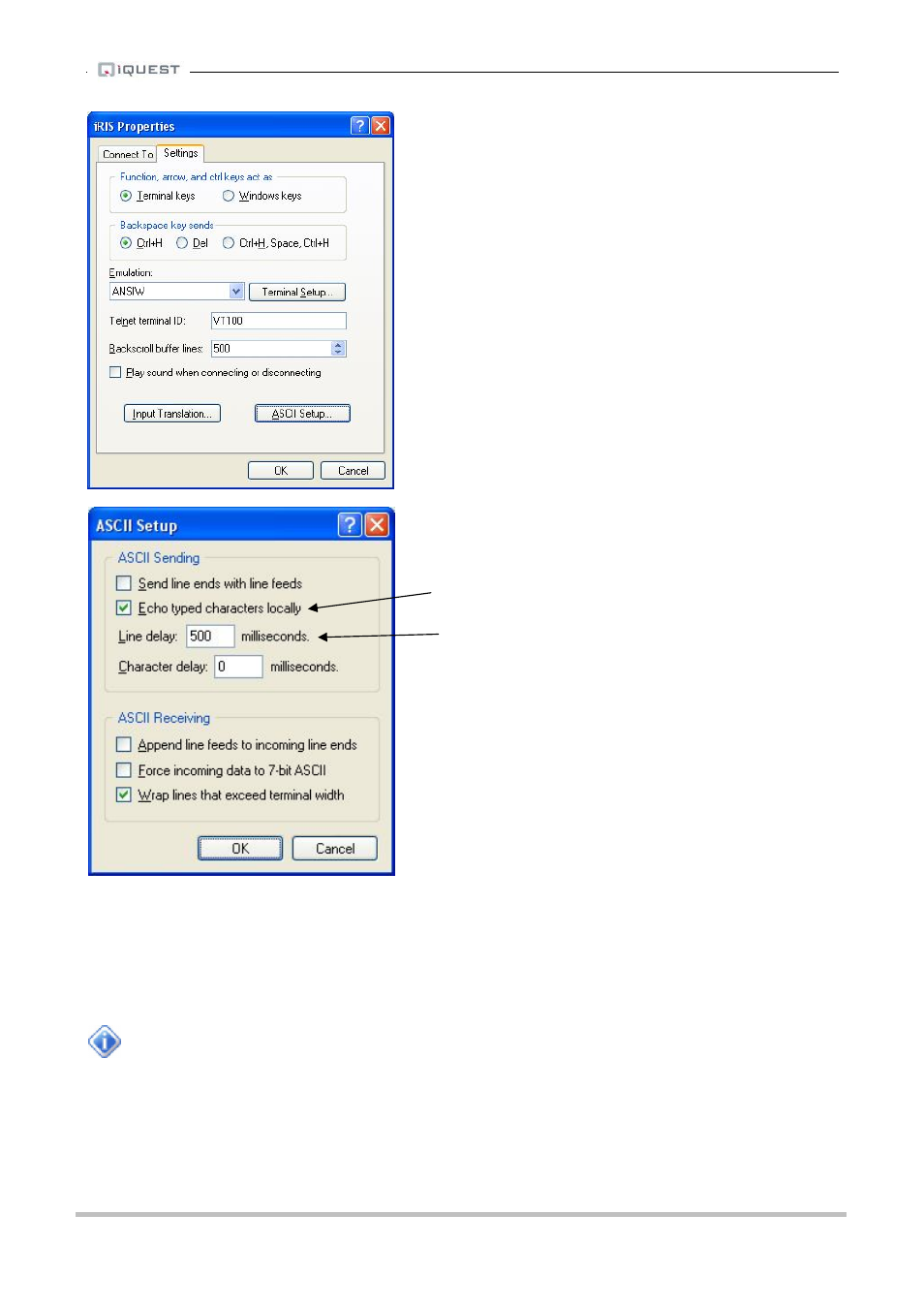

Because the iRIS does not echo received characters, it is necessary to enable “Echo typed characters
locally” otherwise you will not see the characters that you type in at the terminal.

Also, set the “Line delay” time to 500ms for pacing the input from text files if this method is used for setting
up a unit from a common template.

For configuring the sensors it is recommended that the iRIS sensor configuration tool in iLink
is used. This tool enables common sensor configurations to be saved / loaded from disk and

also sent or retrieved by any communication method that the logger supports.

See Section 7 for details on using the integrated sensor tool in iLink.

Enable echo

Set line pacing delay
