Aquavar cpc (slave pump) diagram, Programming, Multipump – slave pump control – Xylem IM167 R8 Aquavar CPC (Centrifugal Pump Control) User Manual
Page 94
94
START/STO
P
SLAVE PUM
P
STARTER
RELAY OUTPUTS CAN BE ASSIGNED
IN GROUP 18.
SET TO
“START SLV”
X1 TERMINAL BOARD
AQUAVAR
RELAY OUTPUTS
CUSTOMER SUPPLIED
CONTROL PANEL
19
R01C
20
R01A
21
R01B
22
R02C
23
R02A
24
R02B
25
R03C
26
R03A
27
R03B
CONTROL LOOP POWER SOURCE
T1 T2 T3
AC
POWER SUPPLY
SLAVE PUMP
MOTOR
NOTE: AQUAVAR ISSUES RUN COMMANDS TO CONSTANT SPEED (SLAVE PUMP) VIA RELAY OUTPUTS (R01, R02, R03)
CONTROL LOOP MUST BE POWERED (EG. 120 AC) BY SEPARATE SOURCE OR CONTROL PANEL.
NOTE:
RELAY STATE R01C = NC
R01A = CC R01B = NO
RELAY OUTPUT SPECS 250 VAC MAX, 2 AM
P

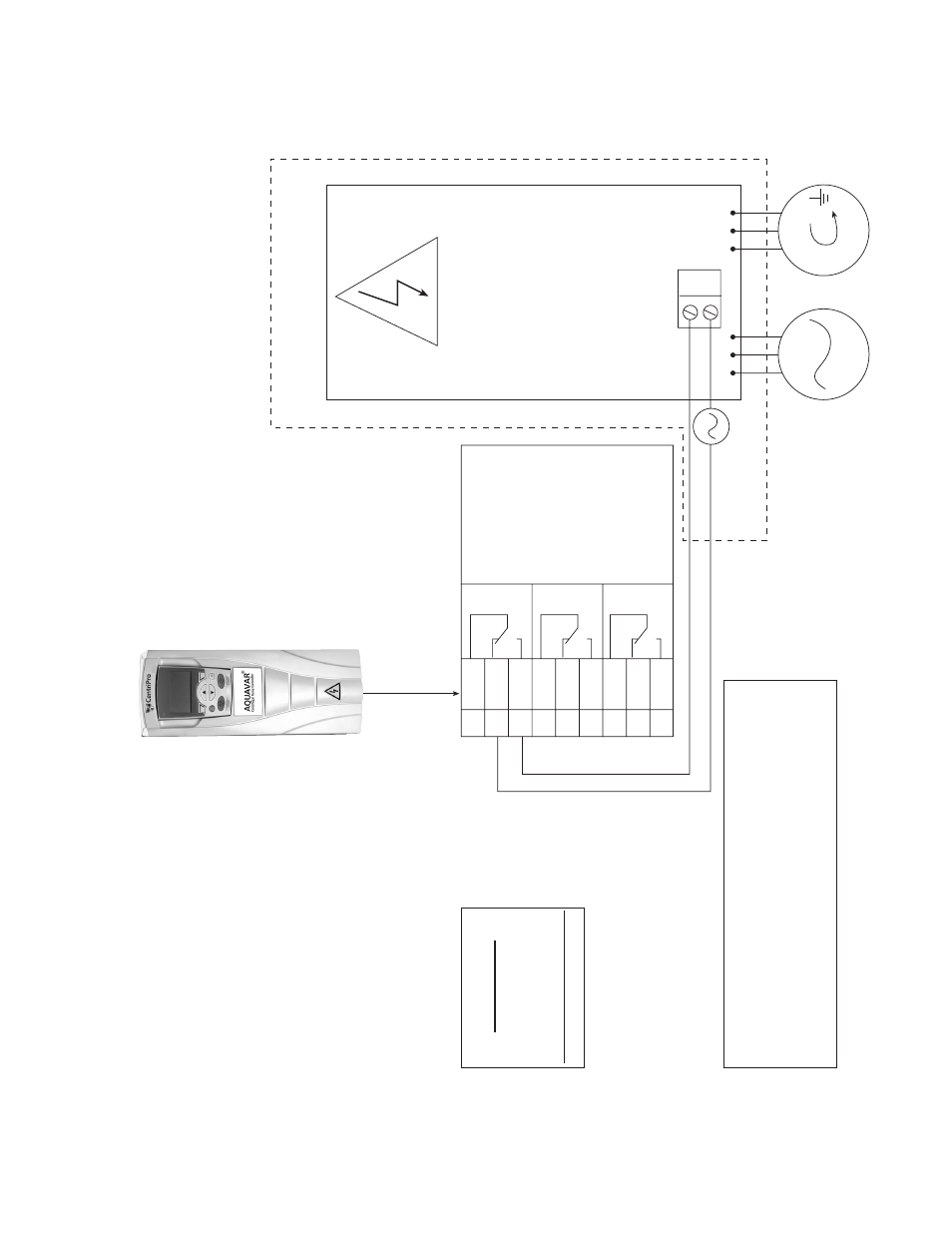

AQUAVAR CPC (SLAVE PUMP) DIAGRAM
MultiPump – Slave Pump Control
PROGRAMMING
