Single Pump Programming (Pressure transducer)

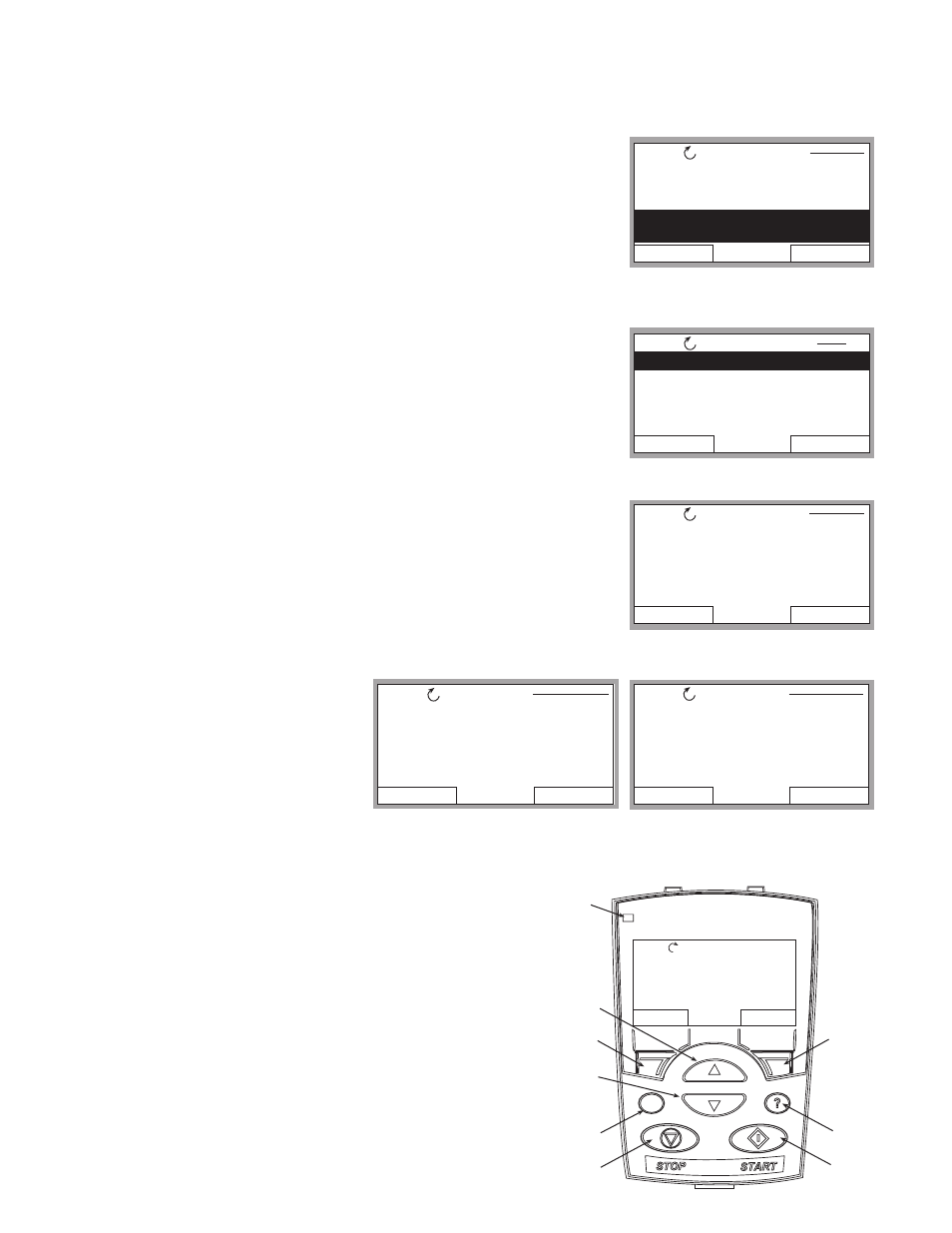

12. From group 1402, press the down arrow until group 1502
TRANSDUCER MAX is highlighted, then press EDIT. Default
pressure transducer setting is 300 psi. Adjust this based on
your maximum rating for a new transducer. NOTE: CentriPro
provides a 0 -300 psi transducer as standard. Select the
appropriate range, then press SAVE. If no changes are
necessary, press CANCEL.
13. Use the down arrow to highlight 1503 “TRANSDUCER MIN”
0.0 , then press EDIT. Default should be 0 psi. Press CANCEL
to advance to the next step. If this group needs to be
changed based on another type of transducer value, press
SAVE to store.
14. Use the down arrow to highlight 1506 “SENSOR MIN”,
then press EDIT. Use the up arrow until the “TUNE” value is
displayed, press the SAVE key. This provides the transducer
a tune value of 0 (ZERO) psi. NOTE: Make sure that your
transducer is wired to the Aquavar but free from any
pressure in the system. The transducer must be exposed to
0 psi only when this step is performed. Press the SAVE key to
tune your transducer.
15. Final step is to enter your required pressure in
the system. After above programming has been
completed, press the EXIT key three (3) times, until
you arrive back to the first control display screen.
Then press the UP or DOWN arrow to select the
required system pressure. Once pressure has
been selected, press the green START key on the
keypad.
EXIT EDIT
REM PARAMETERS
1504 SENSOR
1505 K-DP FLOW METER
1506 SENSOR MIN
4 mA
CANCEL SAVE
REM PAR EDIT
1506 SENSOR MIN
4 mA
EXIT EDIT
REM PARAMETERS
1410 UNDERVOLT CTRL
1411 PRIMING DELAY
1501 TRANSDUCER UNIT
1502 TRANSDUCER MAX
300.0
EXIT SEL
REM
15 XDUCER VARIABLES
16 REFERENCE SELECT
18 RELAY OUTPUTS
19 ANALOG OUTPUTS
21 REGULATE
PAR GROUPS 15
CANCEL SAVE
REM PAR EDIT
1506 SENSOR MIN
TUNED VALUE
DIR MENU
REM 11.1%
LOC
REM
Status
LED
UP
SOFT
KEY 1
DOWN
LOC/REM
STOP START
HELP
SOFT
KEY 2
40.2 PSI
sp
0.0 PSI
ac
0.0 HZ
PROGRAMMING
