Single Pump – Submersible Pump Constant Pressure
16. Final step is to enter your required pressure in
the system. After above programming has been
completed, press the EXIT key three (3) times, until
you arrive back to the first control display screen.
Then press the UP or DOWN arrow to select the
required system pressure. Once pressure has been
selected, press the green START key on the keypad.
17. Optional Step: To lock out access to the control panel (keypad), refer to page 109. This
will prevent unauthorized users from changing programming.
NOTE: If an error or fault occurs, refer to the troubleshooting/faults section of this
manual, page 116. When troubleshooting an Aquavar system, always break down into the
following components:
1. Aquavar programming — check default settings recommended for single pump, multi-
pump, slave pump etc.
2. Electrical supply/ motor/ wiring/grounding — check your supply voltage, motor
wiring, transducer wiring, and grounding.
3. Mechanical/Pump/ Rotation — check your pump rotation, rubbing or other mechanical
problems. Pump “run out”.
4. Hydraulic System/ Piping — check to ensure proper suction and discharge piping
layout, proper NPSHa, air entrainment, vortex, friction loss, system curve compensation
etc.
5. Environment — protect from high temperatures, direct sun, freezing temperatures, high
altitude, dust, vibration, lack of air flow.

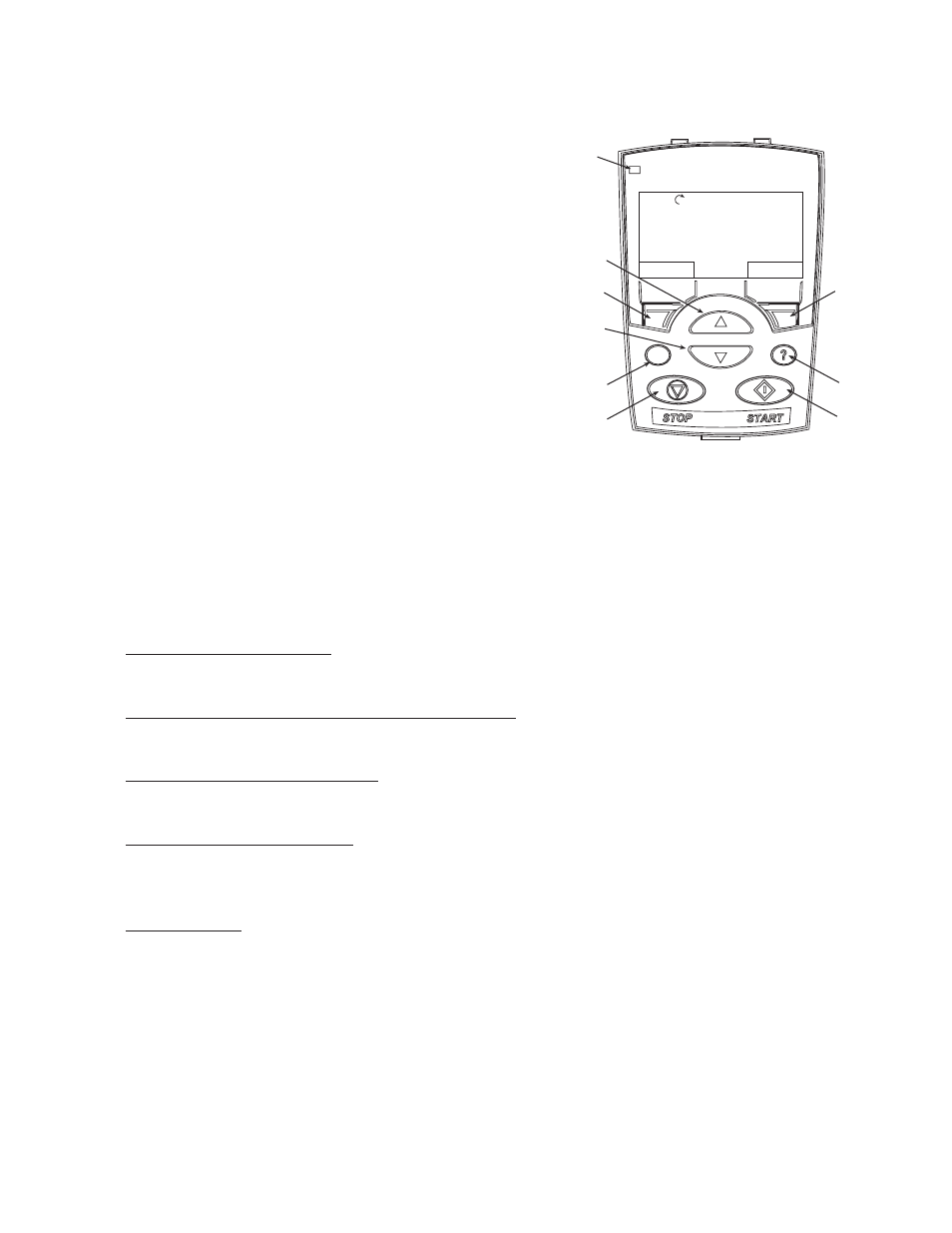

DIR MENU
REM 11.1%
LOC
REM
Status
LED
UP
SOFT
KEY 1
DOWN
LOC/REM
STOP START
HELP
SOFT
KEY 2
40.2 PSI
sp
0.0 PSI
ac
0.0 HZ
PROGRAMMING
