Dimensions and Weights
Frames R1-R6
The dimensions and mass for the AQUAVAR depend on the frame size and enclosure type.
If unsure of frame size, first, find the “Type” code on the drive labels. Then look up that type
code in the “Technical Data” on page 142, to determine the frame size. A complete set of di-
mensional drawings for AQUAVAR drives is located in the Technical Data section.
Units with UL Type 1 Enclosures
Outside Dimensions

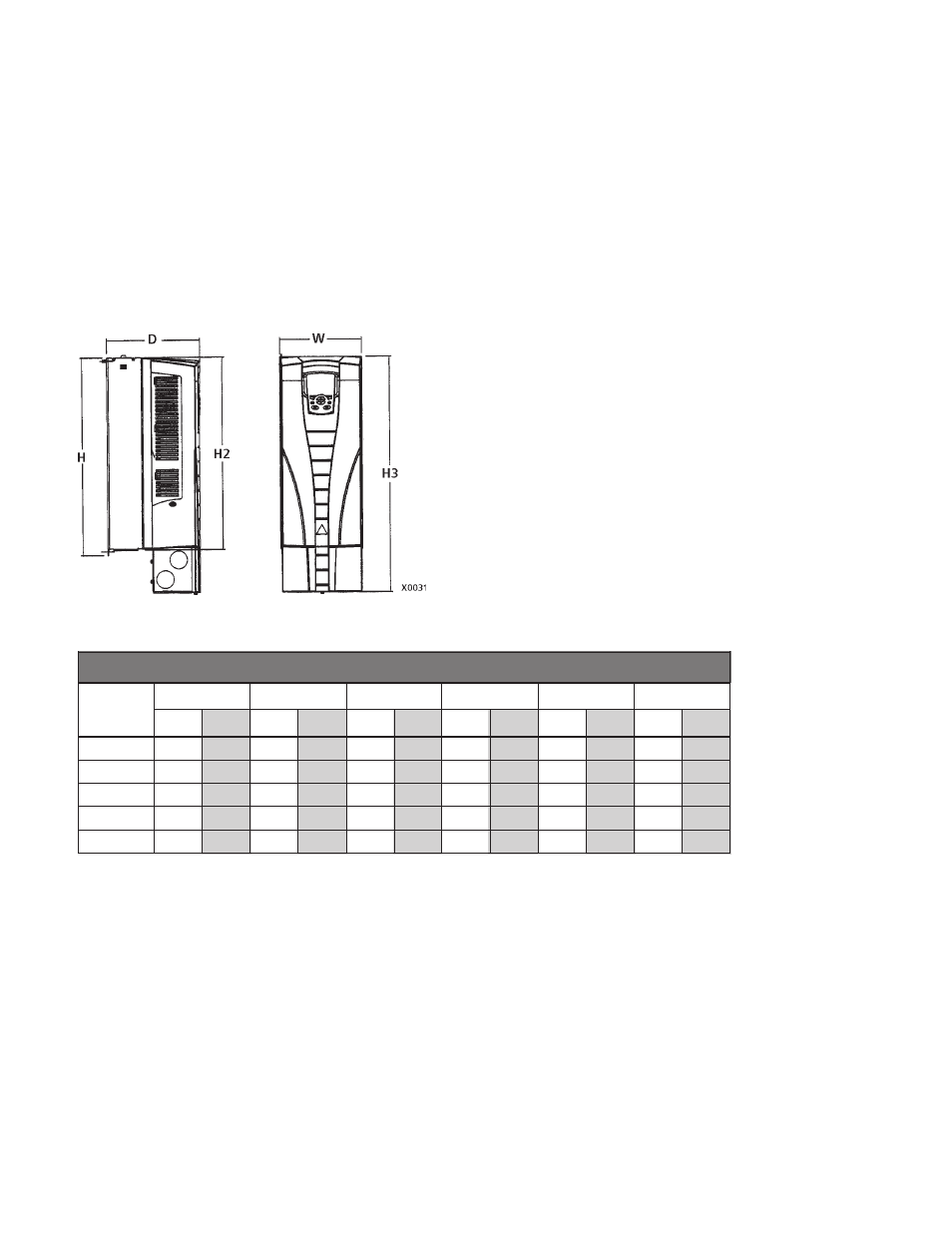

UL Type 1 – Dimensions for each Frame Size
Ref. R1 R2 R3 R4 R5 R6
mm in mm in mm in mm in mm in mm in
W
125
4.9
125 4.9
203 8.0
203 8.0 265 10.4 300 11.8
H
330 13.0 430 16.9 490 19.3 596 23.4 602 23.7 700 27.6
H2 315 12.4 415 16.3 478 18.8 583 23.0 578 22.8 698 27.5
H3 369 14.5 469 18.5 583 23.0 689 27.1 739 29.1 880 34.6
D 212 8.3 222 8.7 231 9.1 262 10.3 286 11.3 400 15.8
NOTE: Enclosures are standard NEMA 1, indoor use only.
