Xylem IM167 R8 Aquavar CPC (Centrifugal Pump Control) - Manual (Page 74)

74
Single Pump Programming (Pressure transducer)
Programming Step(s)
1. Access the main menu on the keypad. Press the MENU key
once and the display will show (PARAMETERS, WIZARDS,
CHANGED PAR). Using the arrow keys, highlight the
“parameters” option, then press the “ENTER” key .
2. Once the parameters option has been chosen, the
parameter groups will be displayed. Each group will be
numbered (see parameter groups list on page 50 for
detailed information). Use the arrow keys to highlight the
parameter group 10, “LOCKS/PASSWORDS, then press the
SEL key.
3. Use the arrow keys to highlight group 1002 “PASSCODE”,
then press the EDIT key. Enter your factory password
number (Default is 66). Press the save key.
4. Use up arrow to group 1001 “PARAMETER LOCK”, then
press the EDIT key. Next, use the up arrow to select “OPEN“,
then press the SAVE key. This group should appear as
“OPEN”, if it does not you have entered the pass code
incorrectly, or it has changed. Contact your local CentriPro
representative for the master code. Once your group 1001
is showing “OPEN”, you can access all of the pump and
drive parameters in the Aquavar.
5. After the SAVE key is pressed in the above group, press
the EXIT key, then the down arrow to highlight the group
11 “START UP DATA”, then Press the SEL key once. Using
the arrows, highlight 1102 “APPLIC MACRO”, then press
the EDIT key. Default is set for SINGLE PUMP. Change
this group whether your system is Single Pump, Multi-
Pump, Slave Pump etc. To exit press CANCEL, to save this
parameter, press the SAVE key once.
6. Use down arrow until group parameter 1104 “MOTOR
NOM VOLTAGE” is highlighted, then press EDIT. Use the
arrows to enter your motors nameplate voltage, then press
the SAVE key.

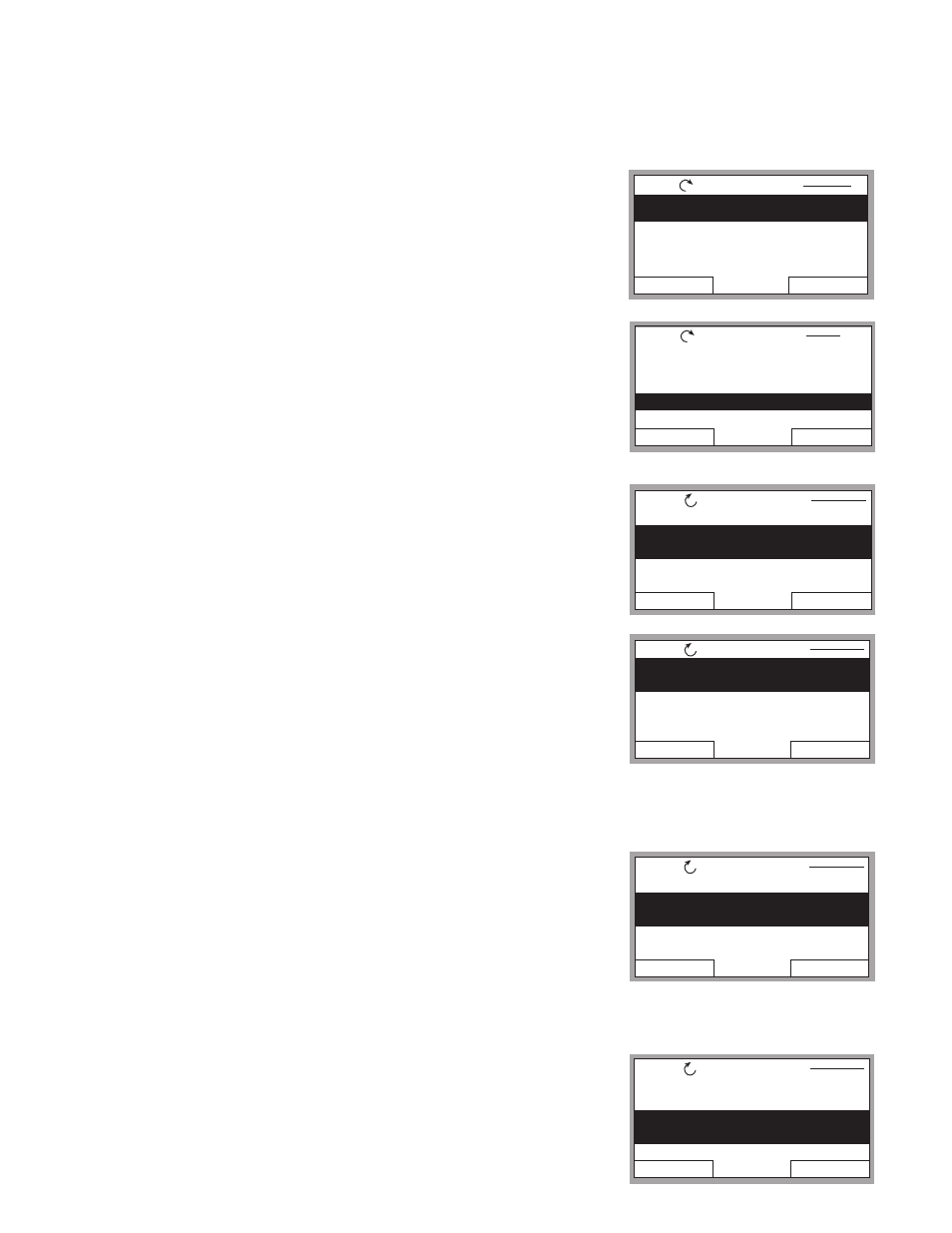

EXIT EDIT
REM PARAMETERS
1101 LANGUAGE
1102 APPLIC MACRO
SINGLE PUMP
1104 MOTOR NOM VOLT
1105 MOTOR NOM CURR
EXIT SEL
REM PAR GROUPS 10
01 VFD SIGNALS
02 PUMP SIGNALS
03 FB ACTUAL SIGNALS
10 LOCKS/PASSWORDS
11 START-UP DATA
EXIT EDIT
REM PARAMETERS
1001 PARAMETER LOCK
1002 PASS CODE
0
1003 LOCAL LOCK
1004 PARAM SAVE
EXIT EDIT
REM PARAMETERS
1001 PARAMETER LOCK
OPEN
1002 PASS CODE
1003 LOCAL LOCK
1004 PARAM SAVE
EXIT ENTER
REM MAIN MENU 1
PARAMETERS
WIZARDS
CHANGED PAR
PROGRAMMING
EXIT EDIT
REM PARAMETERS
1101 LANGUAGE
1102 APPLIC MACRO
1104 MOTOR NOM VOLT
230V
1105 MOTOR NOM CURR
