The Alarm Status function provides a convenient method for creating alerts for various
conditions that may warrant immediate attention from operators. A single LED located at the
top of the screen next to the Alarm Status button alerts the user to changes in the status of any
configured alarms on a “most severe” basis, and provides navigation to the more detailed Alarm
Status screen.
Each HMI instance (either remote or local) can have customized alarms, see
However, if the user updates the HMI with files from the CPU it will overwrite the alarm
configuration, see chapter 9 in the System Administrator Manual, DEH-430 for more details.
13.1 Use
During regular operation, Alarm Status is displayed as shown in Figure 13-3.

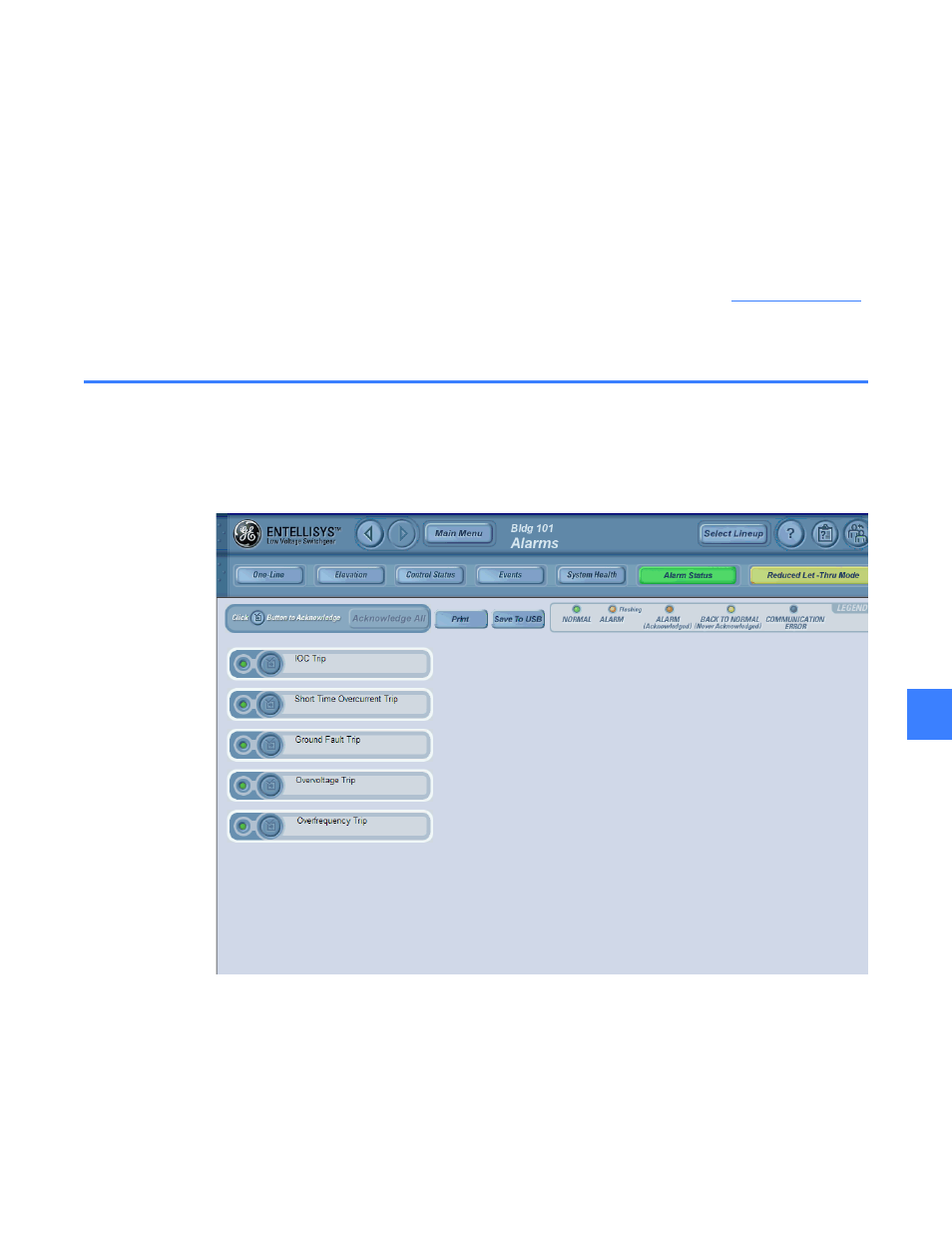

Figure 13-3 Alarm Status screen
Printing and Saving the Alarm Buttons
Use the Print or Save to USB buttons, to capture the alarm status. The print report includes the
list of all configured alarms with their current state. Click the Save to USB button to export the
data to a html file.
Note: The Print and Save to USB buttons are disabled when there are no alarms configured or
the HMI is off-line. The Print button is also disabled in Local HMI (Located in the gear).
