System Hardware Configuration Chapter 5
5-3-9 Terminal Emulation You can issue commands and
receive response by clicking the Terminal button on the tool bar.
There are two kinds of command format supported by this
emulating function. Users can choose ASCII or Hexadecimal mode as
their communication base. If the ASCII mode has been selected, the
Windows Utility will translate the request and response string both
in Modbus and ASCII format. Please refer Chapter 6-2 to use Modbus
Command; and refer Chapter 6-4 to apply ASCII command.
For example, select ASCII mode and key-in the ASCII command “$01M”
(read module name), then click Send. The response will show as figure 5-
23.

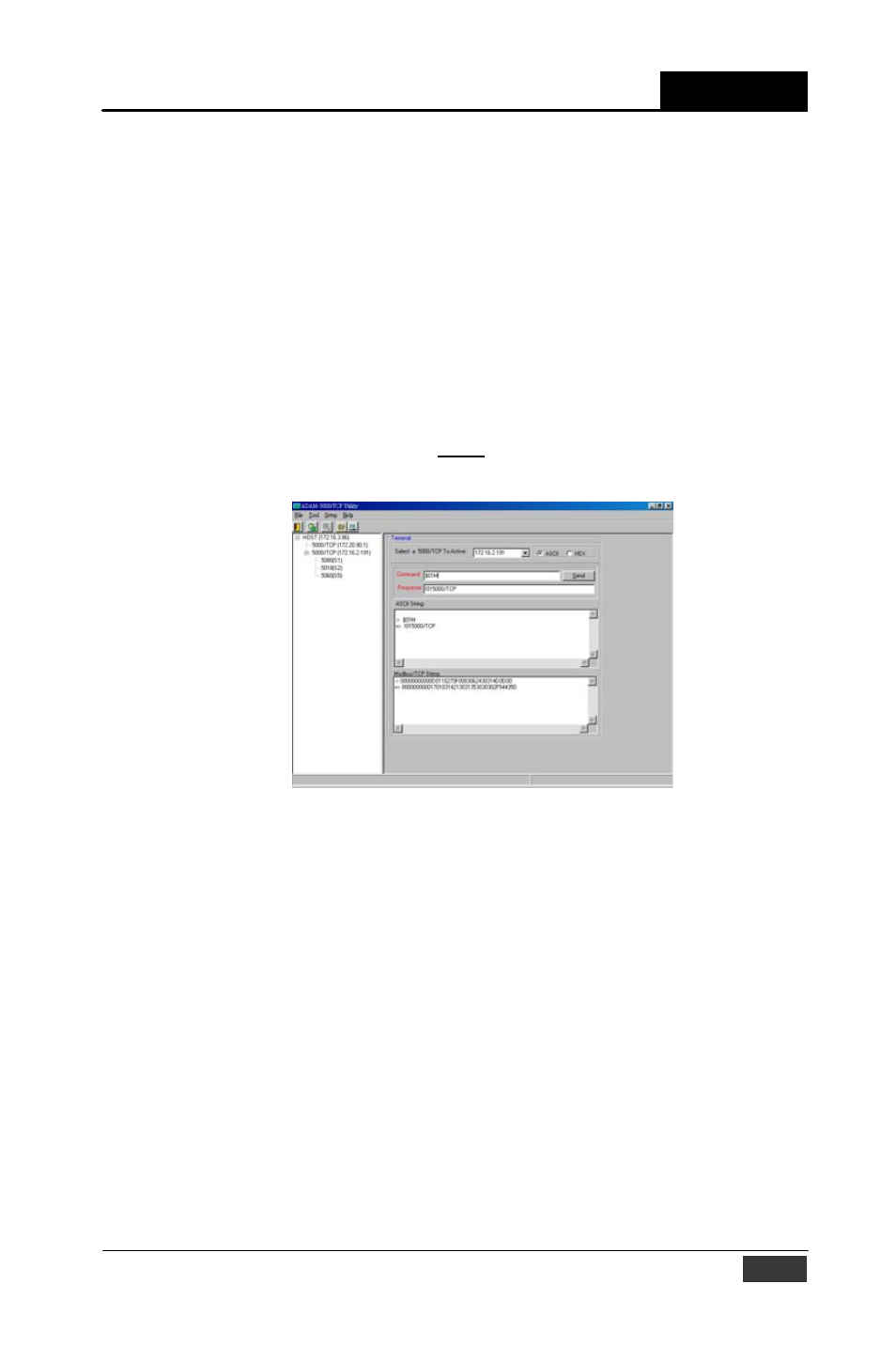

Figure 5-23: Command Emulation
ADAM-5000/TCP User’s Manual 5-19
