Grounding Reference
1-5 Single Point Grounding
Appendix C
Single Point Grounding
ADAM
401 3
ADAM
401 4
ADAM
401 7
ADAM
402 1
+24 V
Power
+16 V +18 V +20 V +22 V
Supply
Those devices will influence each other
with swiftly load change.

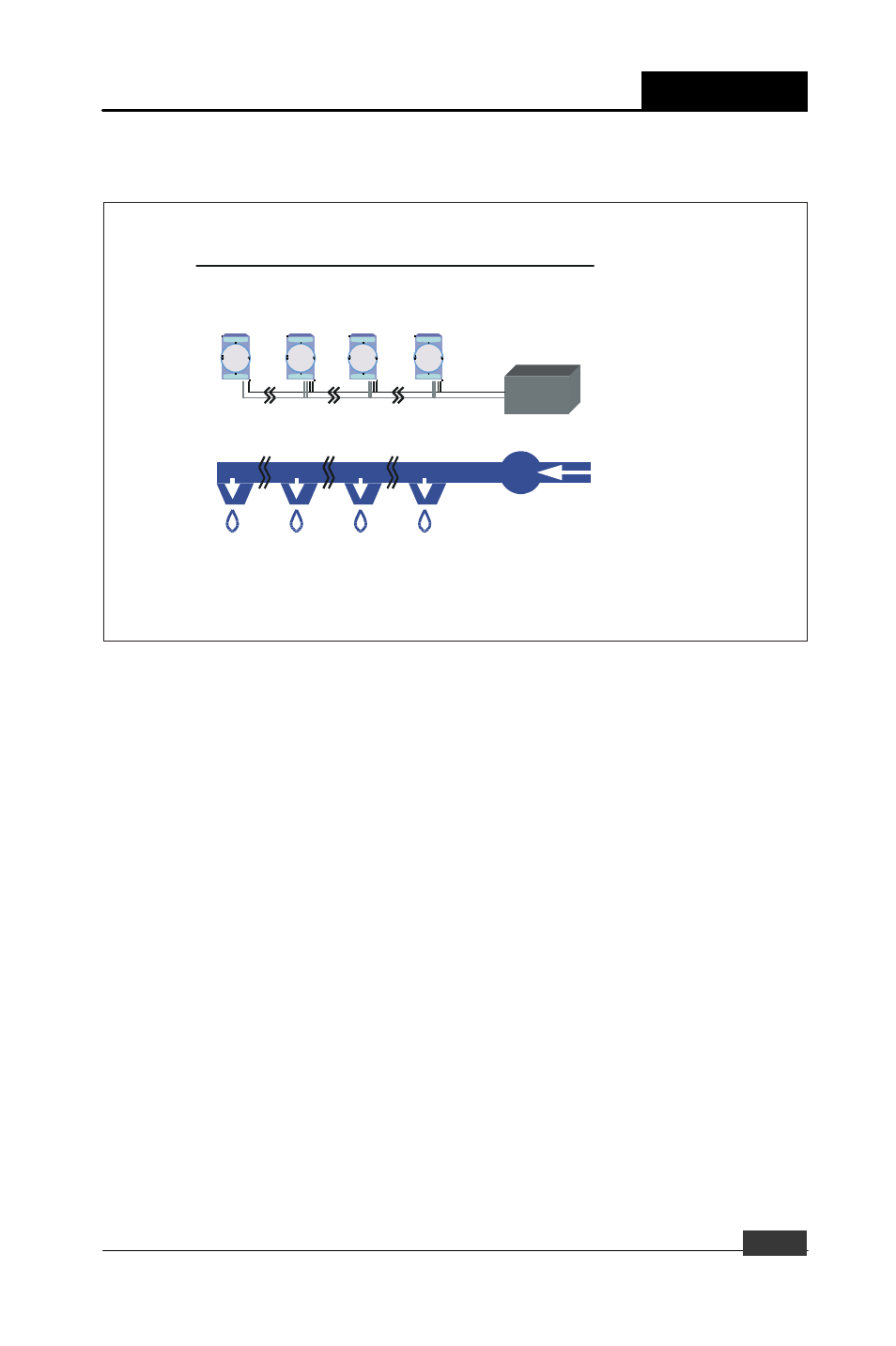

Figure C-7: Single point grounding (1)
• What’s Single Point Grounding? Maybe you have had an unpleasant
experience while taking a hot shower in Winter. Someone turns on a hot
water faucet somewhere else. You will be impressed with the cold water!
The bottom diagram above shows an example of how devices will influ-
ence each other with swift load change. For example, normally we turn on
all the four hydrants for testing. When you close the
hydrant 3 and hydrant 4, the other two hydrants will get more flow. In
other words, the hydrant cannot keep a constant flow rate.
