Chapter 6 Planning Your Application Program
$aaSiCjArrff
Name Configuration
Description Sets the output range, data format and slew rate for a
specified channel of a specified analog output mod-
ule in a specified system.
Syntax $aaSiCjArrff(cr)
$ is a delimiter character.
aa (range 00-FF) represents the 2-character hexadeci-
mal address of the ADAM-5000/TCP system
you want to configure. SiCj identifies the I/O slot i (i :
0 to 7) and the channel j (j : 0 to 3) of the module you
want to configure. A is I/O module configuration
command. rr represents the 2-character hexadecimal
code of the output range. (See Appendix B)

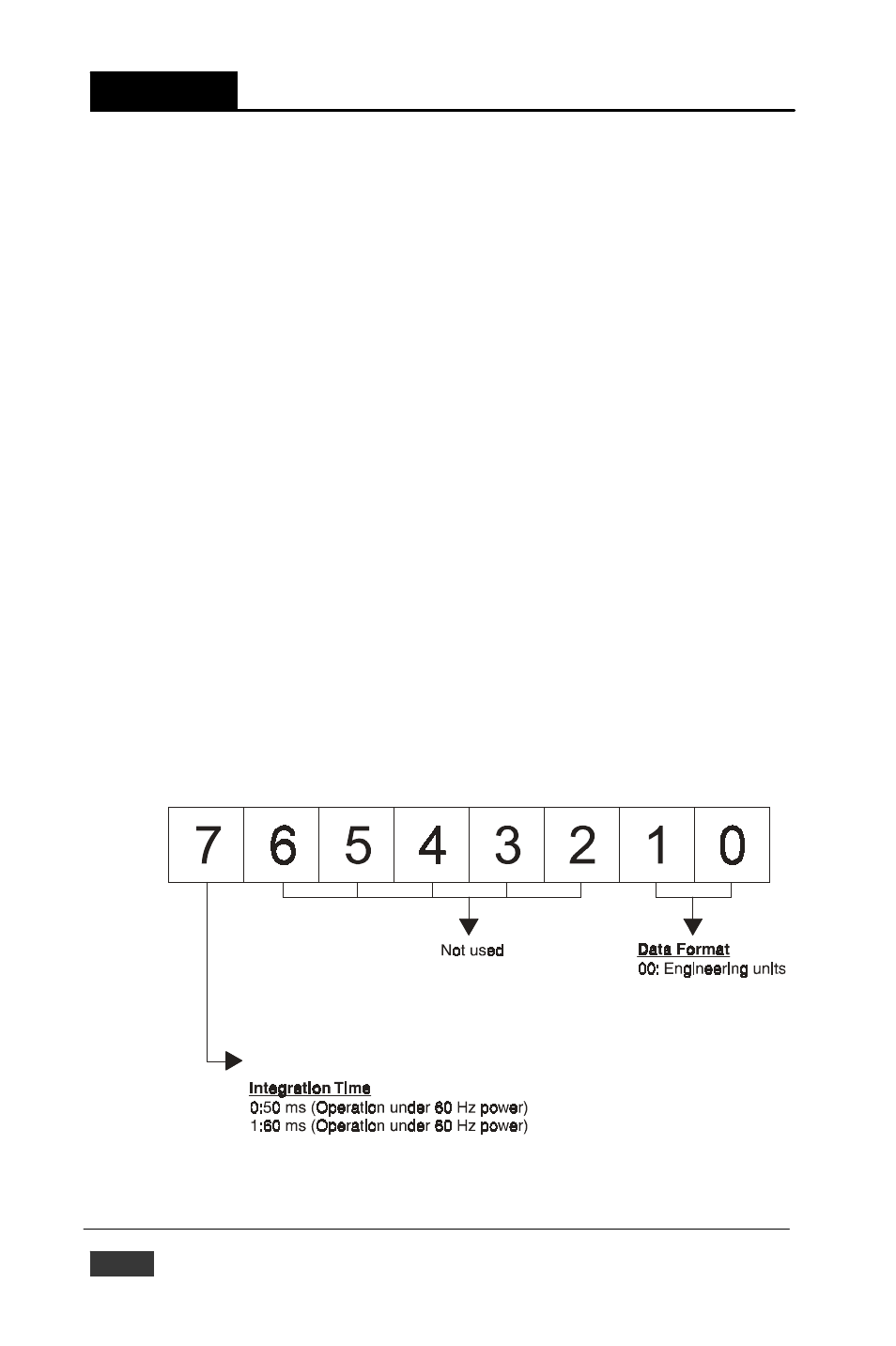

ff is a hexadecimal number that equals the 8-bit pa-
rameter representing the status of data format and
slew rate. Bits 0 and 1 represent data format. Bits
2,3,4,5 represent slew rate. The layout of the 8-bit
parameter is shown in Figure 6-4. The other bits are
not used and are set to 0.
(cr) is the terminating character, carriage return (0Dh)
Figure 6-5: The other bits are not used and are set to 0.
6-128 ADAM-5000/TCP User’s Manual
