Hardware Installation Guide Chapter 3
Serial Network
Working as an Ethernet Data Gateway, the ADAM-5000/TCP Series
provides an RS-485 interface to integrate serial devices for various
applications. Adopting by Modbus standard protocol, it solves the
communication problem between different networks and different
devices. Mean while, users can extend their system scope by
integrating up to 32 nodes of ADAM-5511 or other Modbus products,
such as meters, card readers, loadcell, and so on.
ADAM
ADAM 5000/TCP
Ethernet I/O
+Vs
GND
COM
DATA+
DATA -
Ethernet
RS-485 Network
Up to 32 nodes
ADAM-5511
Modbus
Meter
3’rd party
Modbus Device

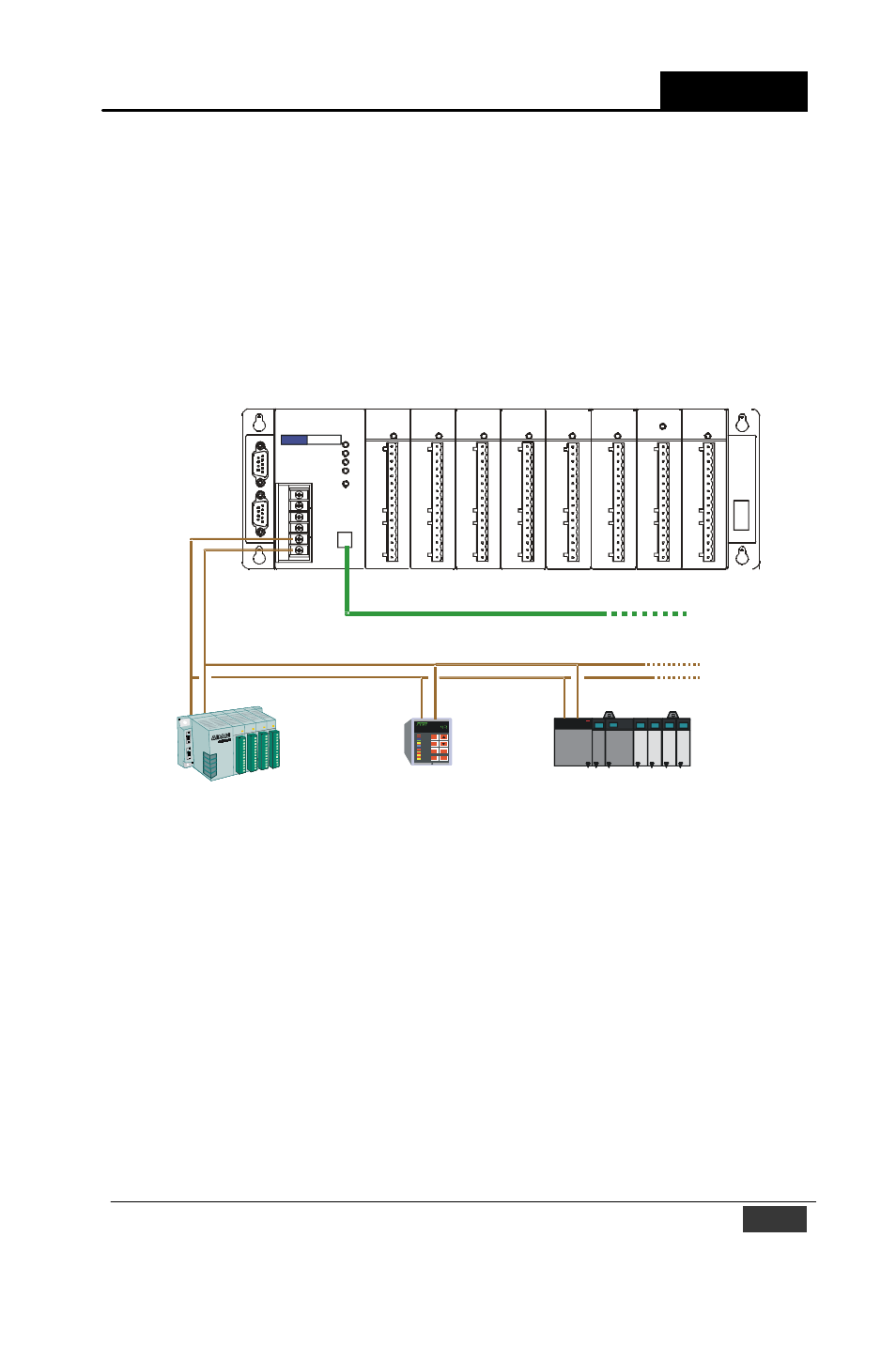

Figure 3-9 Serial Network Connection Note: The
address of ADAM-5000/TCP Series on the RS-485 network will be
always node 1. Any Modbus devices integrated in this network should
be addressed from node 2 to 33.
ADAM-5000/TCP User’s Manual 3-9
