Chapter 3 Hardware Installation Guide
3-4 Wiring and Connections
This section provides basic
information on wiring the power supply, I/O units, and network
connection.
3-4-1 Power supply wiring
Although the ADAM-5000/TCP Series systems are designed for a
standard industrial unregulated 24 V DC power supply, they accept
any power unit that supplies within the range of +10 to +30 VDC. The
power supply ripple must be limited to 200 mV peak-to-peak, and the
immediate ripple voltage should be maintained between +10 and +30
VDC. Screw termi- nals +Vs and GND are for power supply wiring.
Note: The wires used should be sized at least 2 mm.
Power Supply
+ +Vs
+10~+30 V
DC - GND
COM
DATA+
DATA-

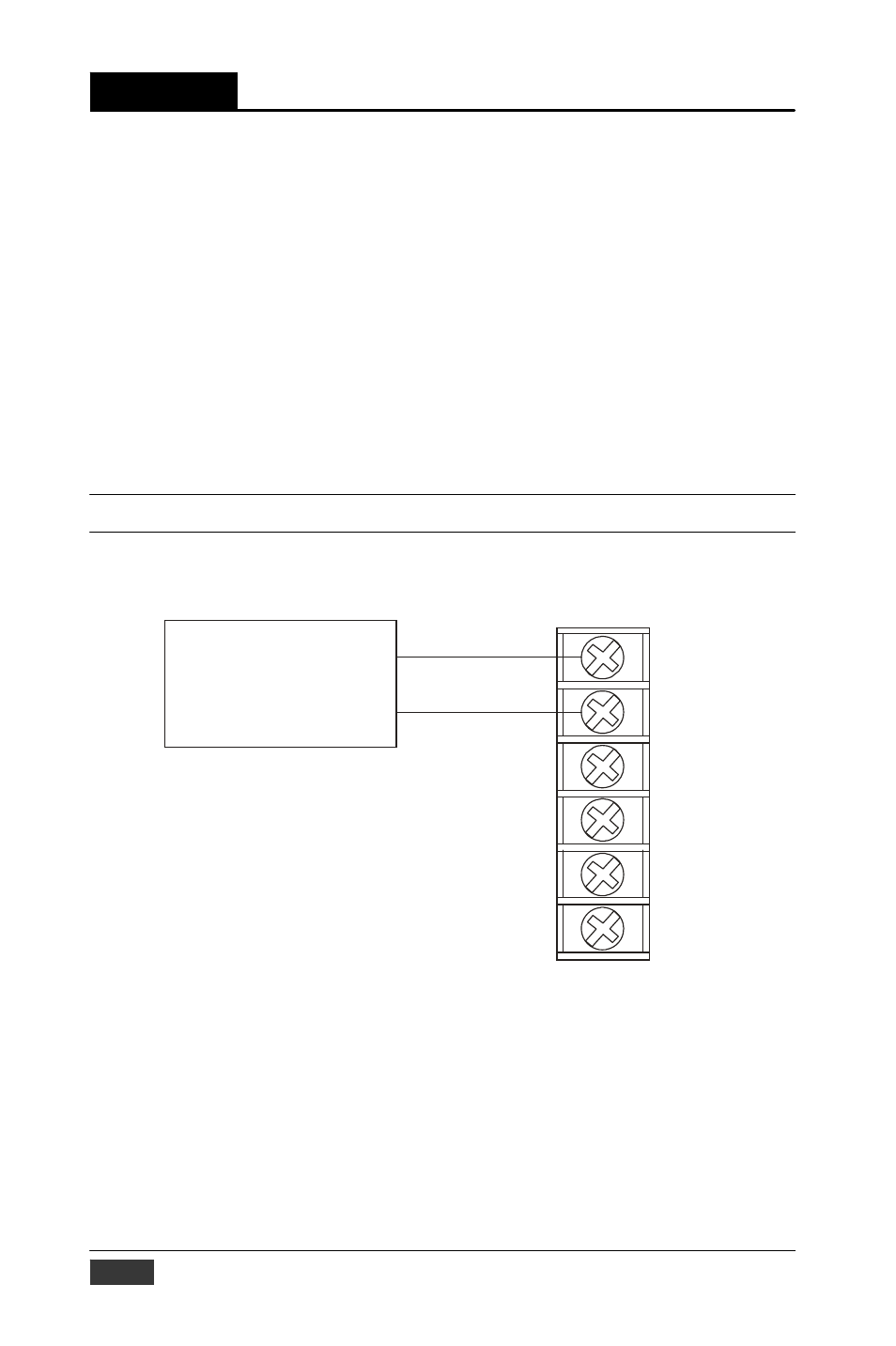

Figure 3-6: ADAM-5000/TCP power wiring
