2-3 Selecting Link Terminal and Cable

Ethernet Network

Use the RJ-45 connector to connect the Ethernet port of the ADAM-
5000/TCP Series to the Hub. The cable for connection should be Category 3
(for10Mbps data rate) or Category 5 (for 100Mbps data rate) UTP/STP
cable, which is compliant with EIA/TIA 586 specifications. Maximum
length between the Hub and any ADAM-5000/TCP Series is up to 100
meters (approx. 300ft)

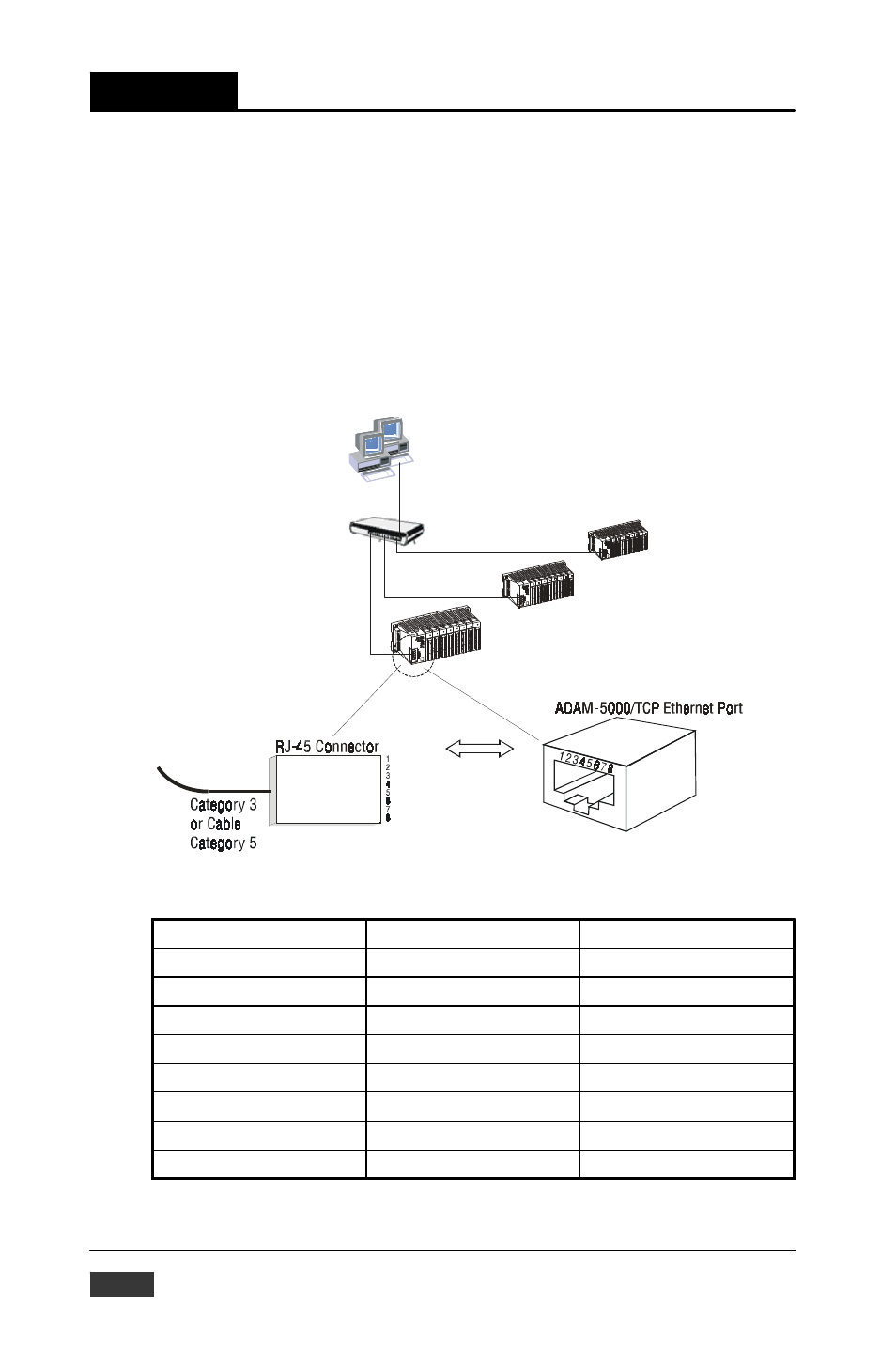

Figure 2-2: Ethernet Terminal and Cable Connection

Pin number

Signal

Function

RD+

Receive (+)

RD-

Receive (-)

TD+

Transmit (+)

(Not Used)

TD-

Transmit (-)

(Not Used)

Table 2-5: Ethernet RJ-45 port Pin Assignment

2-8

ADAM-5000/TCP User’s Manual
