Chapter 5

System Hardware Configuration

5-3-5 Alarm Setting

To satisfy the needs of various applications,

ADAM-5000/TCP Series system provides Alarm setting function for
Analog Input and Counter Module. Users can set High/Low limit value
to identify the alarm status and trig- ger a digital output as an event
handling function.

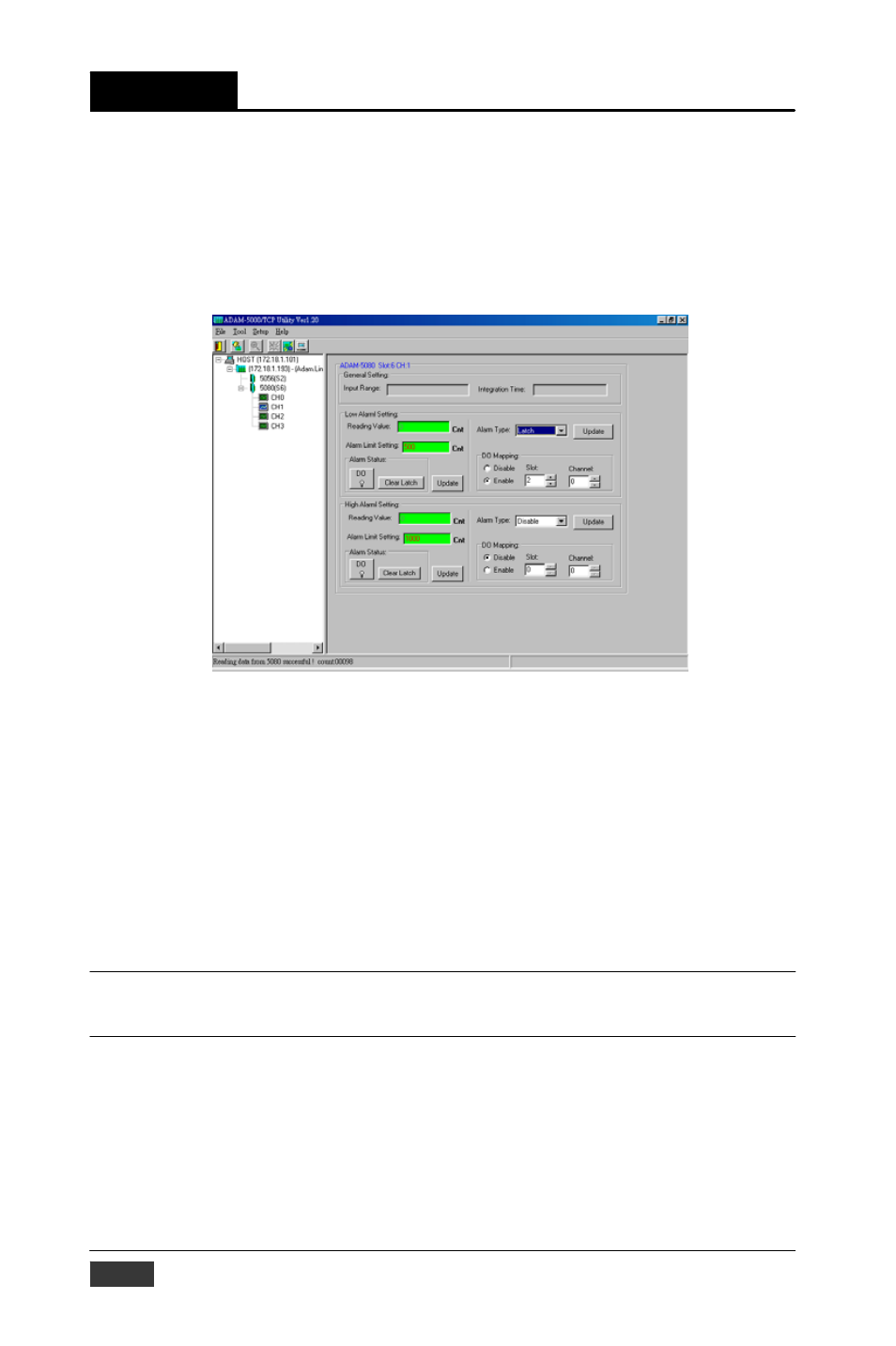

Figure 5-16: Alarm Setting for Analog Input and Counter Modules

There are three alarm types in Analog Input Modules:

Disable: ADAM-5000/TCP Series dose not executive alarm

diagnosing func- tion.

Momentary: When the Input value is over or under the High/Low limit,

the alarm signal will be sent only once.

Latch: When the input value is over or under the High/Low limit, the

alarm signal will be latched till clicking the “Clear Latch” button.

Note:

The alarm types of ADAM-5080 include “Disable” and “Latch
only.
