Page 63
63
ATmega161(L)
1228C–AVR–08/02
Serial Peripheral
Interface – SPI
The Serial Peripheral Interface (SPI) allows high-speed synchronous data transfer
between the ATmega161 and peripheral devices or between several AVR devices. The
ATmega161 SPI features include the following:
•
Full-duplex, 3-wire Synchronous Data Transfer
•
Master or Slave Operation
•
LSB First or MSB First Data Transfer
•
Seven Programmable Bit Rates
•
End-of-Transmission Interrupt Flag
•
Write Collision Flag Protection
•
Wake-up from Idle Mode (Slave Mode Only)
•
Double-speed (CK/2) Master SPI Mode

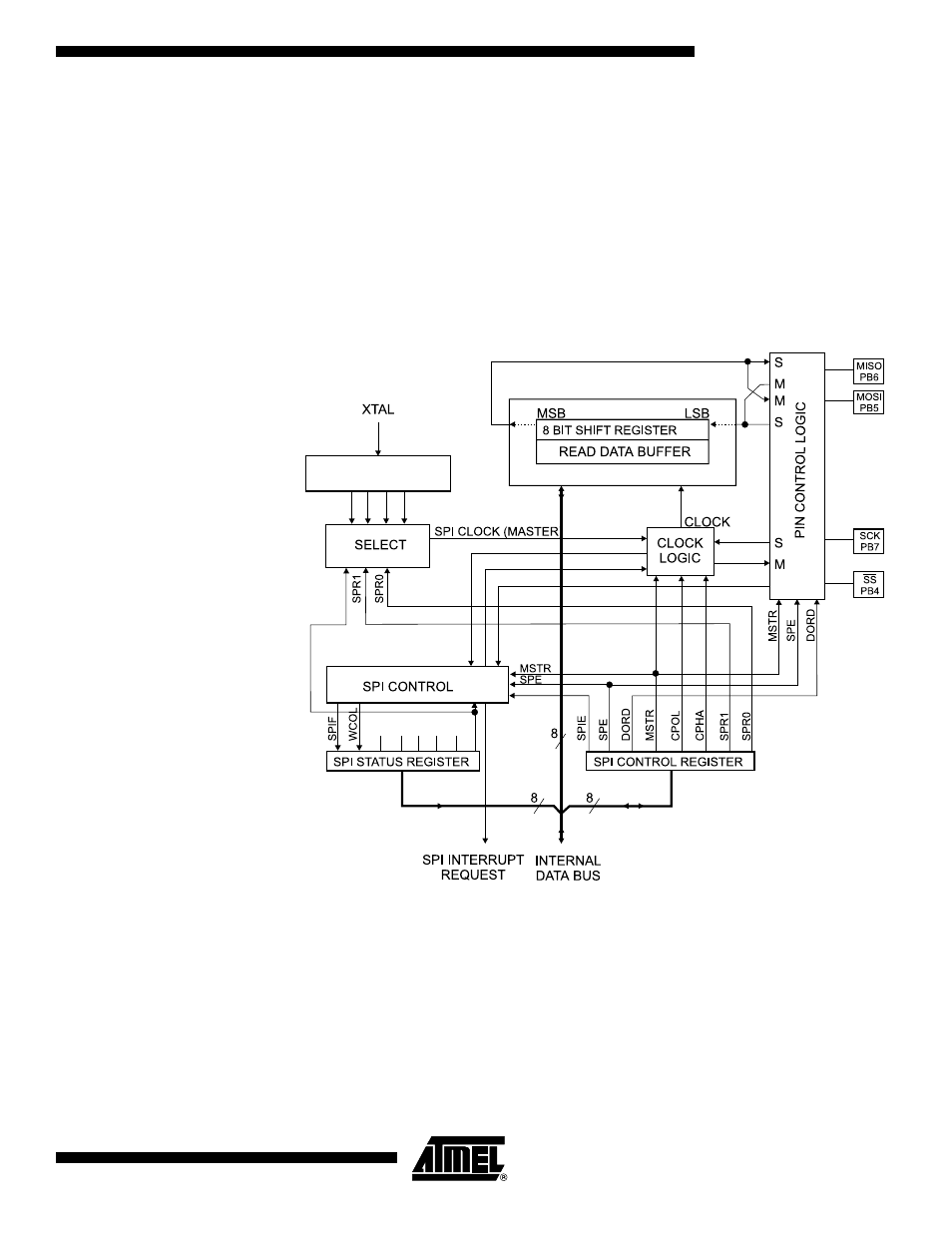

Figure 40. SPI Block Diagram
SPI2X
SPI2X
DIVIDER
/2/4/8/16/32/64/128
