58

ATmega161(L)

1228C–AVR–08/02

Watchdog Timer

The Watchdog Timer is clocked from a separate On-chip Oscillator that runs at 1 MHz.
This is the typical value at V

CC

= 5V. See characterization data for typical values at other

V

CC

levels. By controlling the Watchdog Timer prescaler, the Watchdog Reset interval

can be adjusted (see Table 20 for a detailed description). The WDR (Watchdog Reset)
instruction resets the Watchdog Timer. Eight different clock cycle periods can be
selected to determine the reset period. If the reset period expires without another
Watchdog Reset, the ATmega161 resets and executes from the Reset Vector. For tim-
ing details on the Watchdog Reset, refer to page 28.

To prevent unintentional disabling of the Watchdog, a special turn-off sequence must be
followed when the Watchdog is disabled. Refer to the description of the Watchdog Timer
Control Register for details.

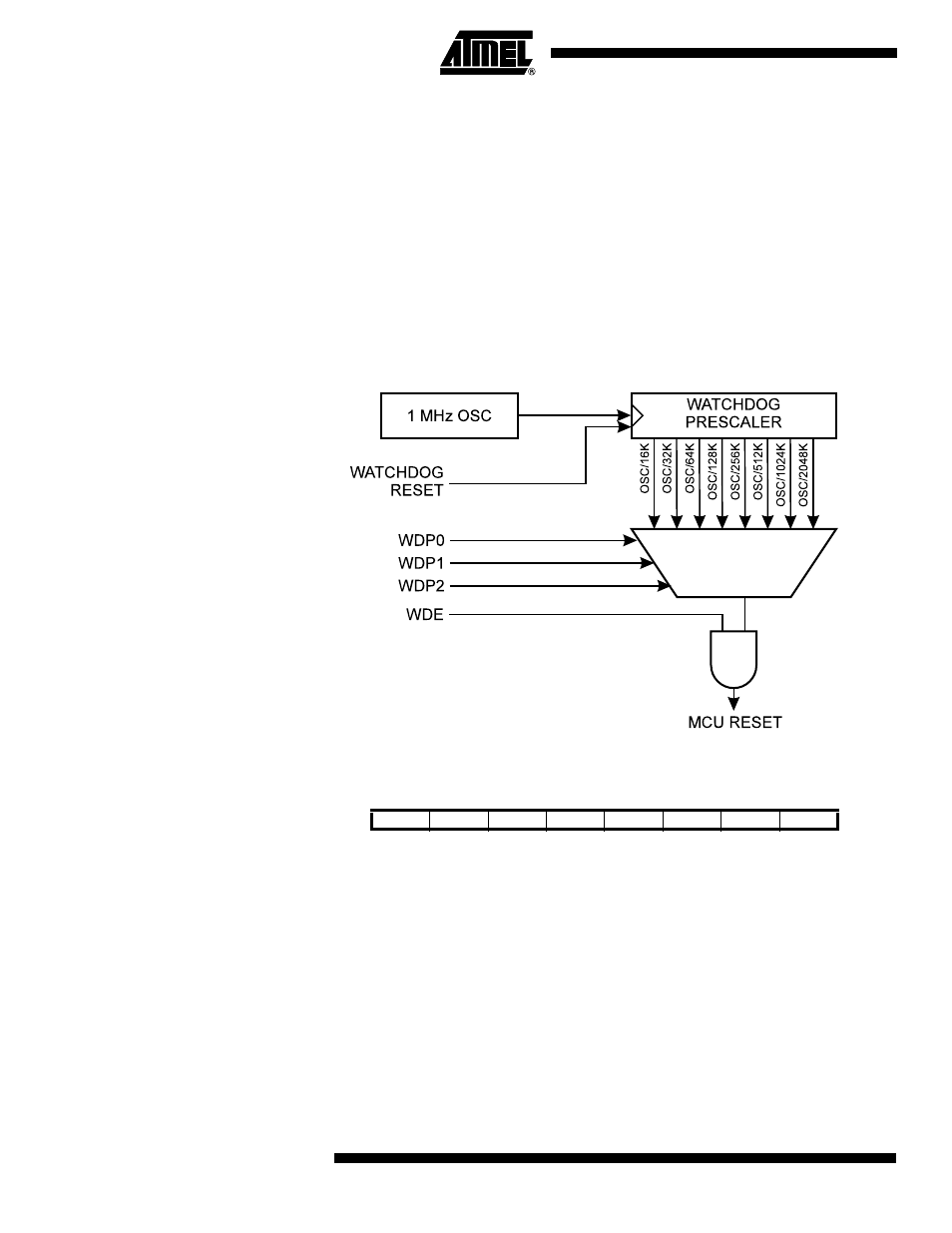

Figure 39. Watchdog Timer

Watchdog Timer Control
Register – WDTCR

• Bits 7..5

Res: Reserved Bits

These bits are reserved bits in the ATmega161 and will always read as zero.

• Bit 4

WDTOE: Watchdog Turn-off Enable

This bit must be set (one) when the WDE bit is cleared. Otherwise, the Watchdog will
not be disabled. Once set, hardware will clear this bit to zero after four clock cycles.
Refer to the description of the WDE bit for a Watchdog disable procedure.

• Bit 3

WDE: Watchdog Enable

When the WDE is set (one), the Watchdog Timer is enabled and if the WDE is cleared
(zero), the Watchdog Timer function is disabled. WDE can only be cleared if the

Bit

7

6

5

4

3

2

1

0

$21 ($41)

WDTOE

WDE

WDP2

WDP1

WDP0

WDTCR

Read/Write

R

R

R

R/W

R/W

R/W

R/W

R/W

Initial Value

0

0

0

0

0

0

0

0
