156
ATmega128(L)
2467B–09/01
When the modulator is enabled the type of modulation (logical AND or OR) can be
selected by the PORTB7 register. Note that the DDRB7 controls the direction of the port
independent of the COMnx1:0 bit setting.
Timing Example Figure 73 illustrates the modulator in action. In this example the Timer/Counter1 is set to
operate in fast PWM mode (non-inverted) and Timer/Counter2 uses CTC waveform
mode with toggle compare output mode (COMnx1:0 = 1).

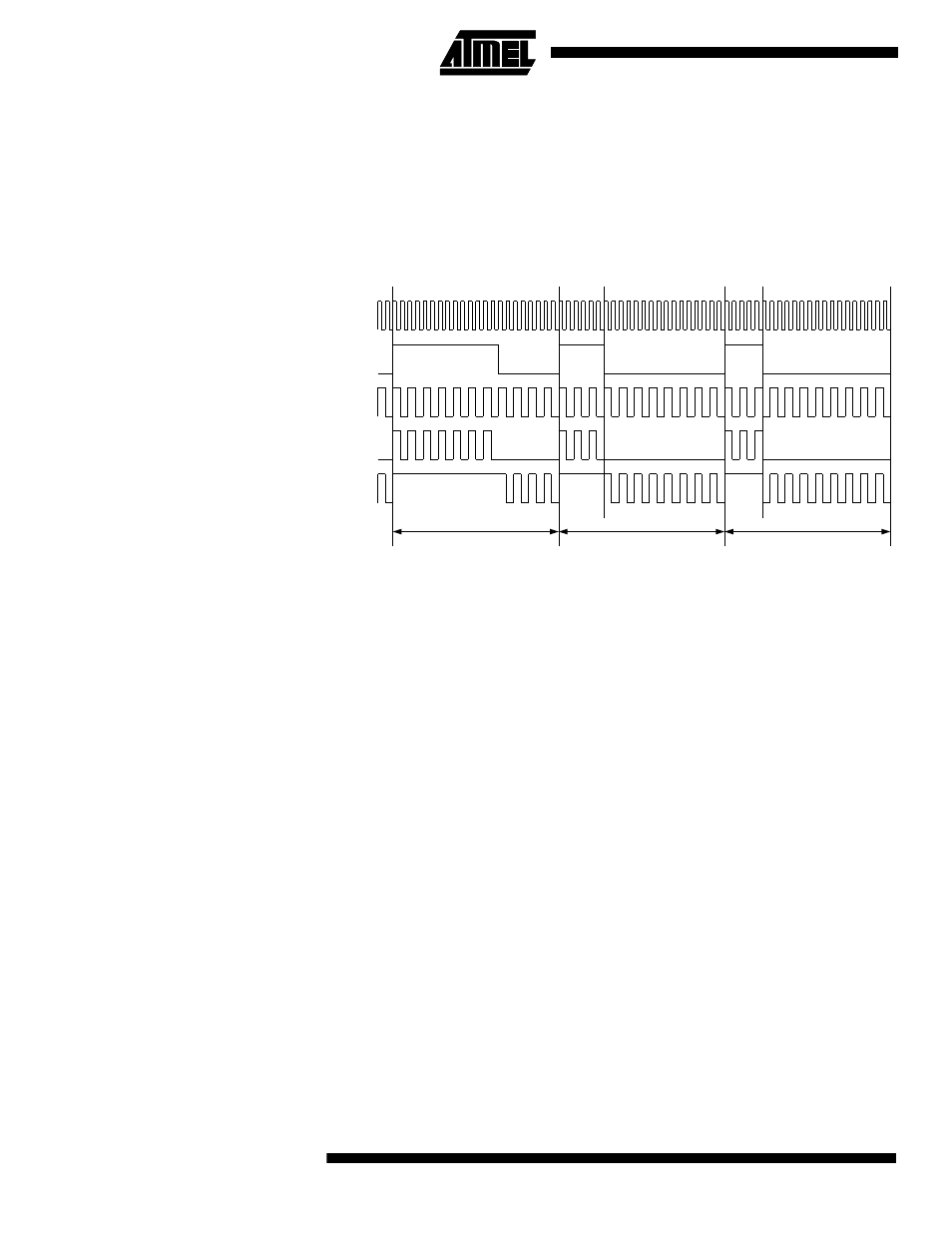

Figure 73. Output Compare Modulator, Timing Diagram
In this example, Timer/Counter2 provides the carrier, while the modulating signal is gen-
erated by the output compare unit C of the Timer/Counter1.
The resolution of the PWM signal (OC1C) is reduced by the modulation. The reduction
factor is equal to the number of system clock cycles of one period of the carrier (OC2).
In this example the resolution is reduced by a factor of two. The reason for the reduction
is illustrated in
Figure 73 at the second and third period of the PB7 output when
PORTB7 equals zero. The period 2 high time is one cycle longer than the period 3 high
time, but the result on the PB7 output is equal in both periods.
1 2
OC2
(CTC Mode)
OC1C
(FPWM Mode)
PB7
(PORTB7 = 0)
PB7
(PORTB7 = 1)
(Period)
3
clk
I/O
