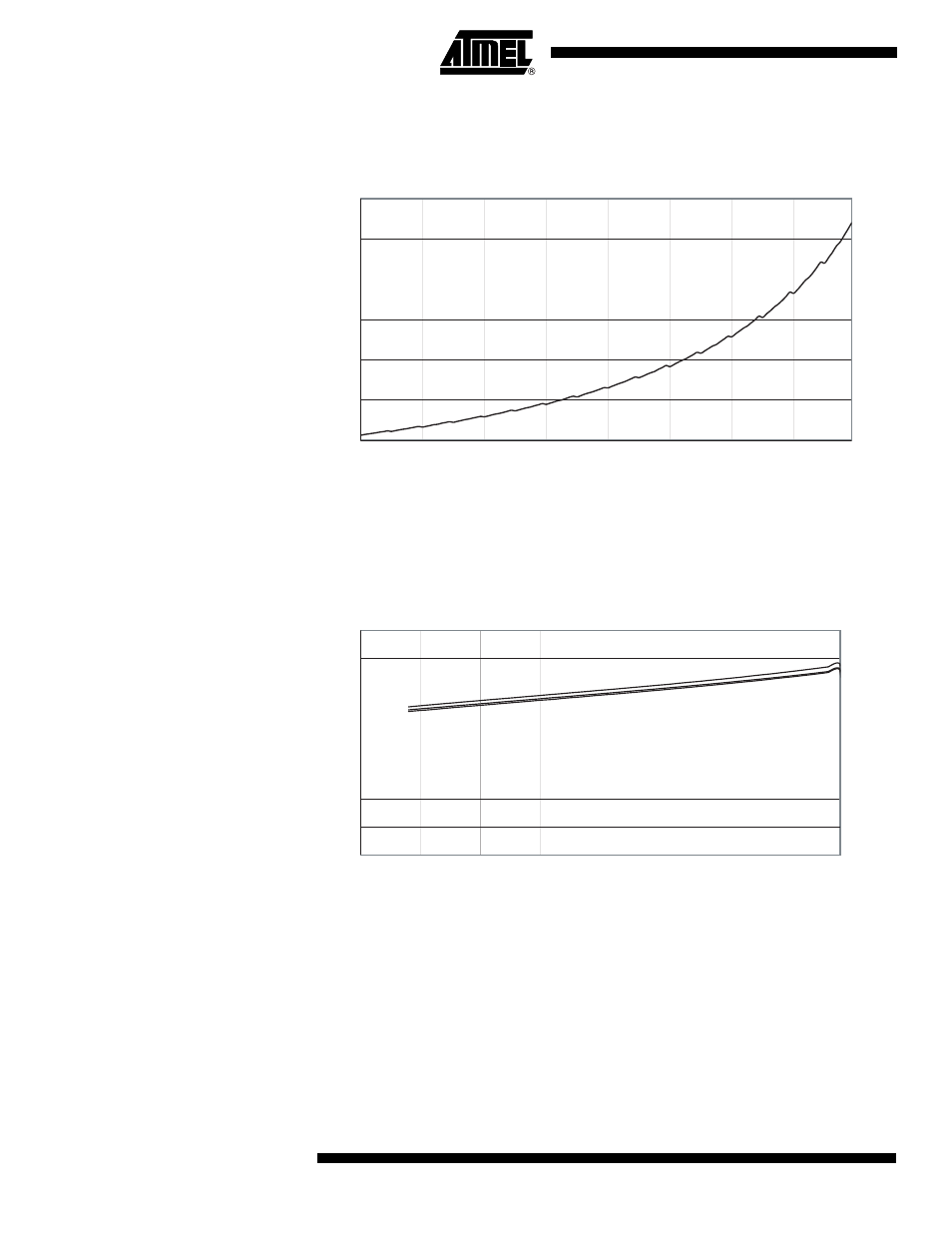

Figure 169. Calibrated 8 MHz RC Oscillator Frequency vs. Osccal Value
Current Consumption of
Peripheral Units Figure 170. Brownout Detector Current vs. V
CC
CALIBRATED 8MHz RC OSCILLATOR FREQUENCY vs. OSCCAL VALUE
4
6
8
10
12
14
16
0 16 32 48 64 80 96 112
OSCCAL VALUE
F
RC
(MHz)
BROWNOUT DETECTOR CURRENT vs. V
CC
-5
0
5
10
15
20
25
30
35
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I CC
(uA)
25 °C
-40 °C
85 °C
