104

ATmega162/V

2513E–AVR–09/03

Each half period of the external clock applied must be longer than one system clock
cycle to ensure correct sampling. The external clock must be guaranteed to have less
than half the system clock frequency (f

ExtClk

< f

clk_I/O

/2) given a 50/50% duty cycle. Since

the edge detector uses sampling, the maximum frequency of an external clock it can
detect is half the sampling frequency (Nyquist sampling theorem). However, due to vari-
ation of the system clock frequency and duty cycle caused by Oscillator source (crystal,
resonator, and capacitors) tolerances, it is recommended that maximum frequency of an
external clock source is less than f

clk_I/O

/2.5.

An external clock source can not be prescaled.

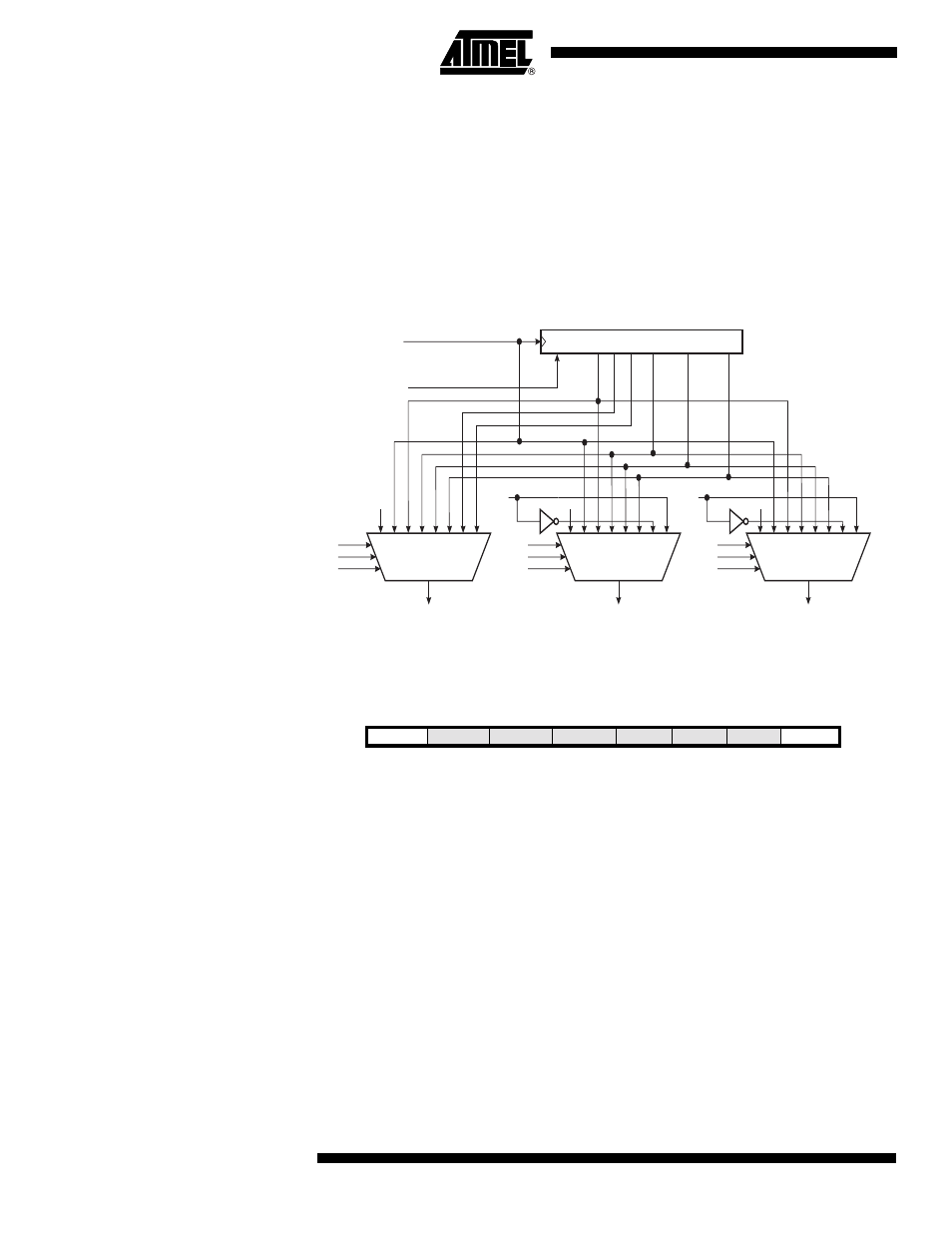

Figure 45. Prescaler for Timer/Counter0, Timer/Counter1, and Timer/Counter3

(1)

Note:

1. The synchronization logic on the input pins (

Tn/T0)

is shown in Figure 44.

Special Function IO Register –
SFIOR

• Bit 7 – TSM: Timer/Counter Synchronization Mode

Writing the TSM bit to one activates the Timer/Counter Synchronization mode. In this
mode, the value that is written to the PSR2 and PSR310 bits is kept, hence keeping the
corresponding prescaler reset signals asserted. This ensures that the corresponding
Timer/Counters are halted and can be configured to the same value without the risk of
one of them advancing during configuration. When the TSM bit is written to zero, the
PSR2 and PSR310 bits are cleared by hardware, and the Timer/Counters start counting
simultaneously.

• Bit 0 – PSR310: Prescaler Reset Timer/Counter3, Timer/Counter1, and

Timer/Counter0

When this bit is one, the Timer/Counter3, Timer/Counter1, and Timer/Counter0 pres-
caler will be reset. This bit is normally cleared immediately by hardware, except if the
TSM bit is set. Note that Timer/Counter3, Timer/Counter1, and Timer/Counter0 share
the same prescaler and a reset of this prescaler will affect all three timers.

PSR321

Clear

clk

T1

TIMER/COUNTER1 CLOCK SOURCE

0

CS10

CS11

CS12

T1

clk

T0

TIMER/COUNTER1 CLOCK SOURCE

0

CS00

CS01

CS02

T0

clk

T3

TIMER/COUNTER3 CLOCK SOURCE

0

CS30

CS31

CS32

10-BIT T/C PRESCALER

CK

CK/8

CK/64

CK/256

CK/1024

CK/16

CK/32

Bit

7

6

5

4

3

2

1

0

TSM

XMBK

XMM2

XMM1

XMM0

PUD

PSR2

PSR310

SFIOR

Read/Write

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

Initial Value

0

0

0

0

0

0

0

0
