EVS IPDirector Version 5.8 - July 2010 Part 7 User's Manual - Manual (Page 44)

IPDirector V.5.8 – User Manual – Part 7: Editing - IPEdit
EVS Broadcast Equipment – July 2010
Issue 5.8.B
31
H
OW
?

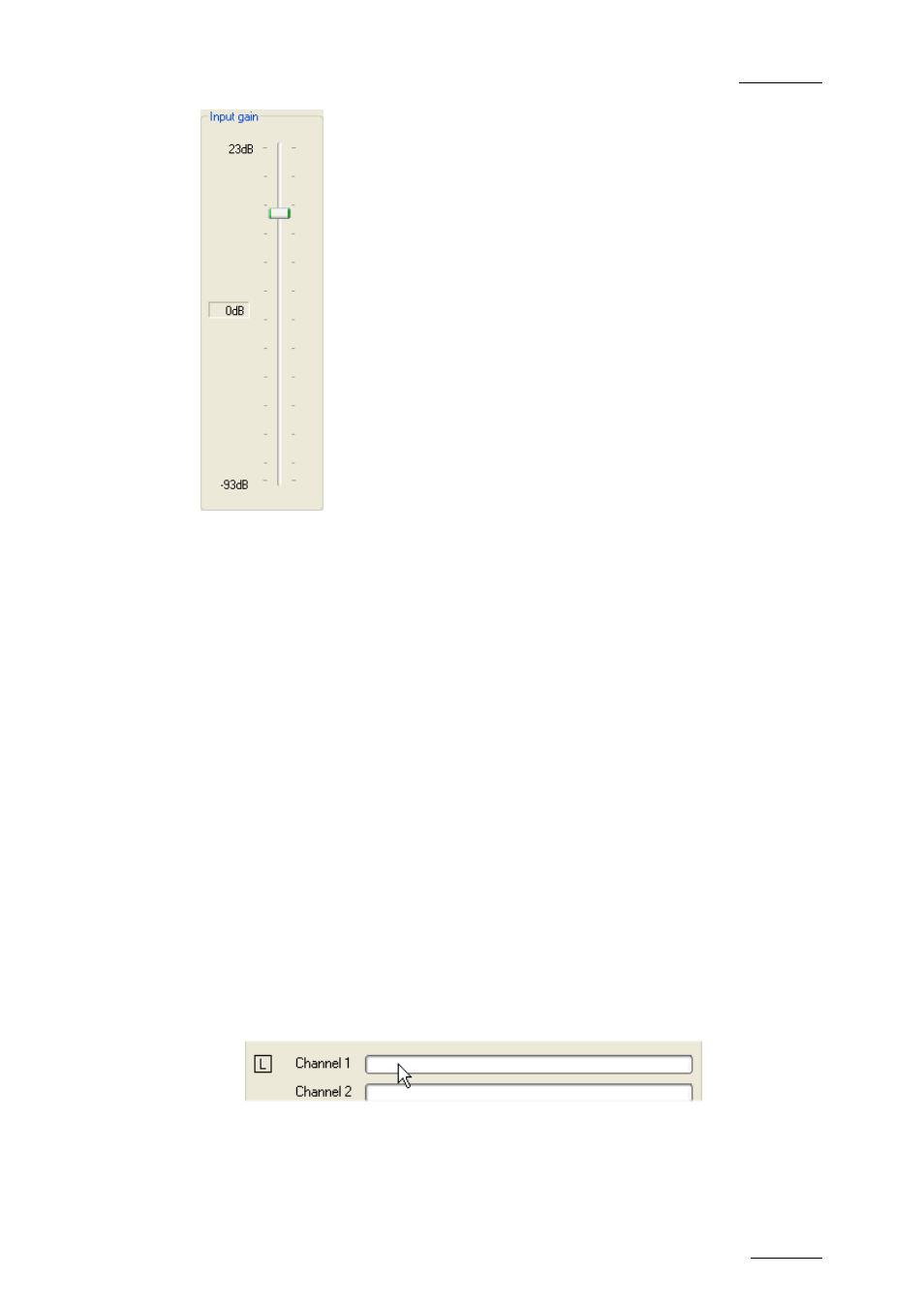

To adjust the audio level output to the headphones, proceed as follows:
• Move the slider up or down on the scale to specify how many dBs you want to
add to or remove from the initial audio level of the media to be played.
The audio level gain or reduction is displayed in the field in the middle of the Input
Gain range.
3.9.4 A
SSIGNING THE
A
UDIO
C
HANNELS TO THE
H
EADPHONES
W
HERE
?
You can select the audio channels you want to assign to the right and left
headphones in the Audio Channels area of the AVH Config. window.
H
OW
?
To assign the audio channels to the headphones, proceed as follows:
1. Left-click the white bar next to the channel you want to associate to the left
ear.
2. Right-click the white bar next to the channel you want to associate to the
right ear.
