Issue 5.8.B IPDirector V.5.8 – User Manual – Part 7: Editing - IPEdit
EVS Broadcast Equipment - July 2010
156
2.

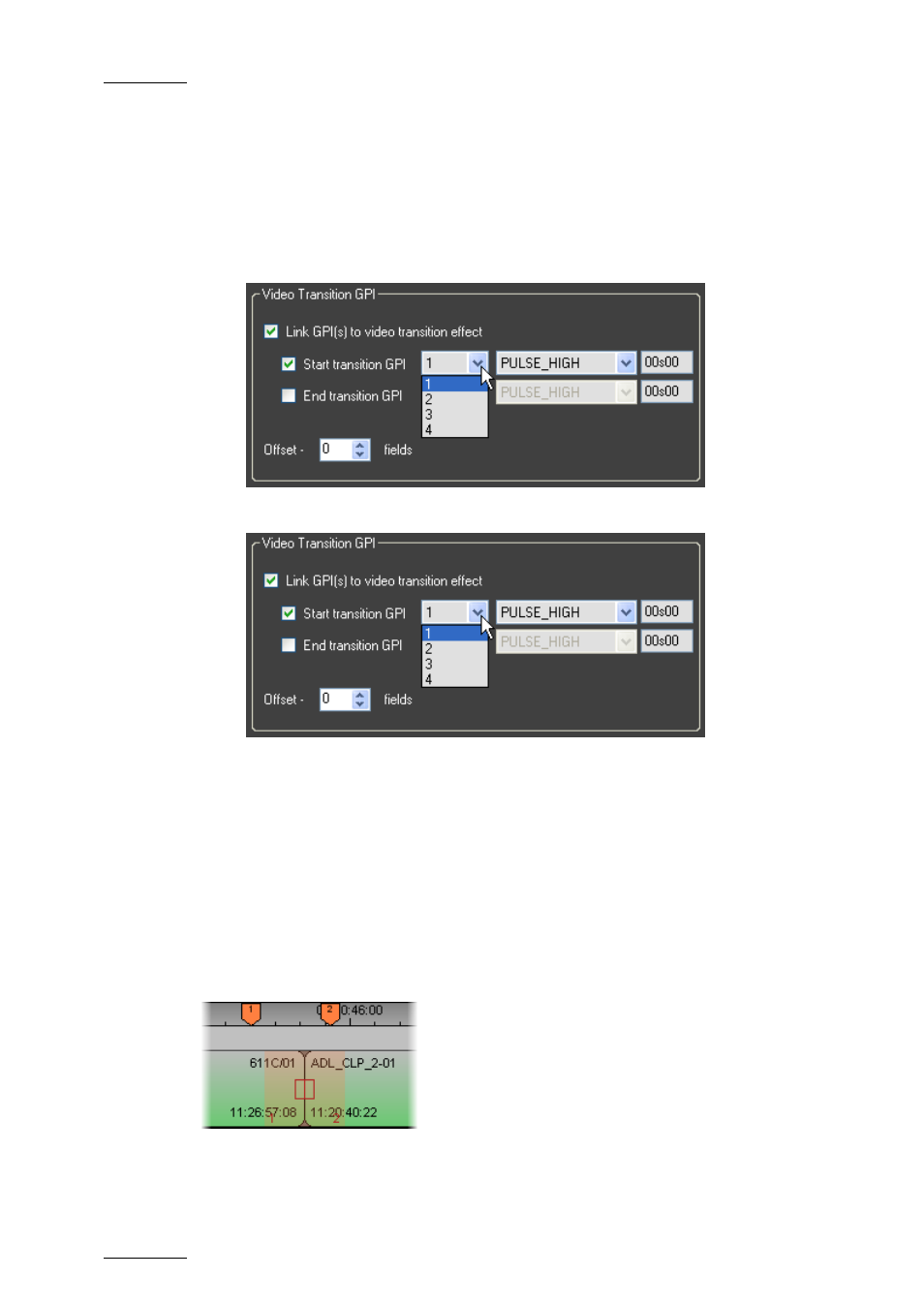

In the Video Transition GPI group box, tick the check box Link GPI(s) to
video transition effect.
3. Tick the Start Transition GPI check box to a GPI at the beginning of the
transition effect.
The two drop-down lists on the right of the check box become available.
4. In the first drop-down list, select the number of the GPI OUT to be used:
5. In the second drop-down list, select the type of the GPI OUT to be used:
6. If you need to associate a GPI OUT to the end of the transition, apply steps
3 to 5 to the End Transition GPI.
7. If you want the GPI to be sent to the external device before the start and
the end of the transition effect, specify the number of fields for the advance
in the GPI offset spin box.
8. Click the Add or Modify button.
When the transition effect is added to the timeline, the Start transition and End
transition GPIs are displayed on the Timecode bar as orange markers. The GPI
number is mentioned on the marker and the marker position takes the advance into
account:
