Garmin G1000 Pilot’s Guide for the Mooney M20M/M20R/M20TN 190-00647-00 Rev. A 2-6
FLIGHT INSTRUMENTS
ATTITUDE INDICATOR
NOTE: Some supplemental PFD information disappears when pitch exceeds +30˚/-20˚ or bank exceeds 65˚.
Attitude information is displayed over a virtual blue sky and brown ground with a white horizon line. The
Attitude Indicator displays the pitch, roll, and slip/skid information.
1 Roll Pointer
2 Roll Scale
3 Horizon Line
4 Aircraft Symbol
5 Land Representation
6 Pitch Scale
7 Slip/Skid Indicator
8 Sky Representation
9 Roll Scale Zero

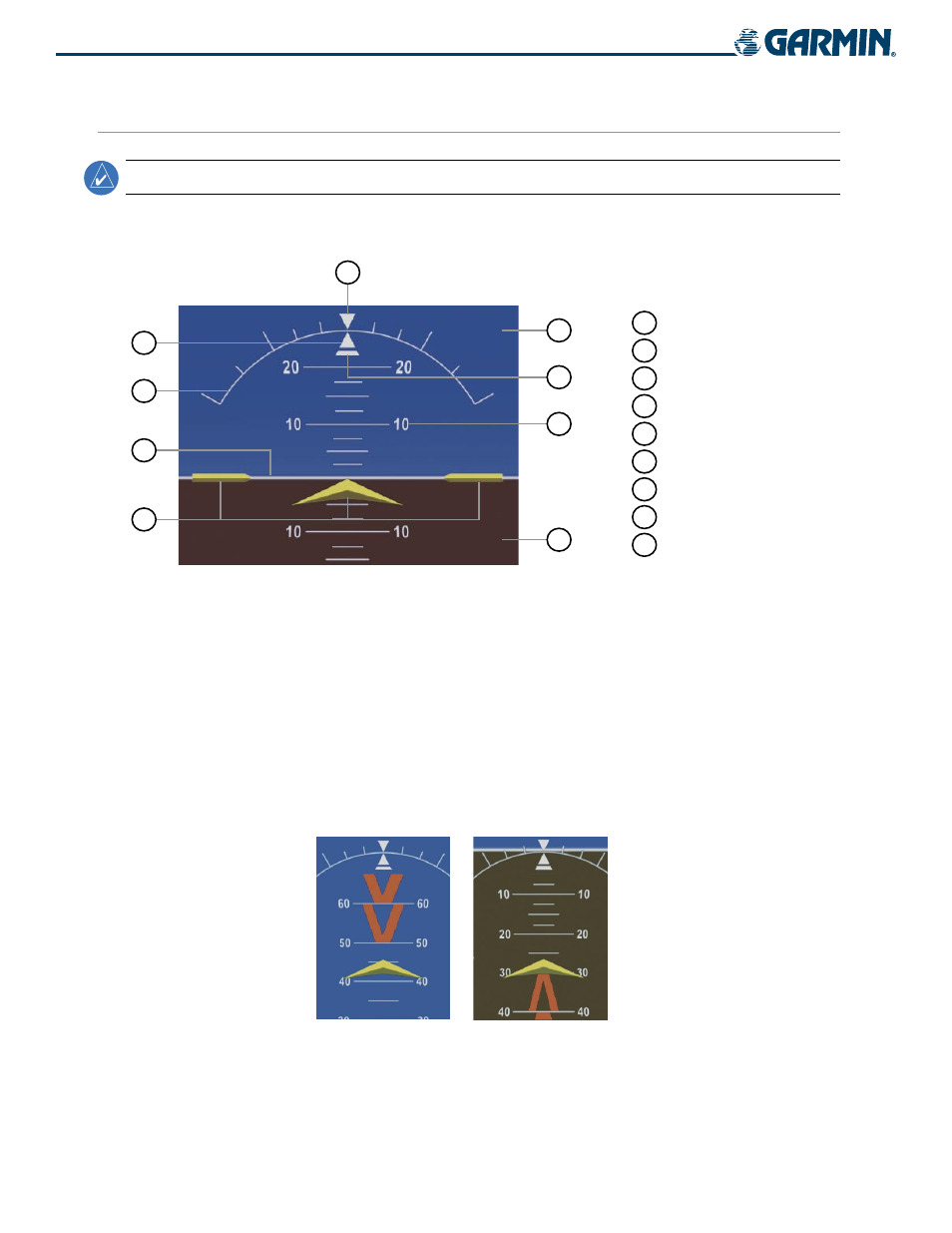

Figure 2-7 Attitude Indicator
5
6
8
7
2
4
3
9
1
PITCH INDICATION
The horizon line is part of the pitch scale. Above and below the horizon line, major pitch marks and numeric
labels are shown for every 10˚, up to 80˚. Minor pitch marks are shown for intervening 5˚ increments, up
to 25˚ below and 45˚ above the horizon line. Between 20˚ below to 20˚ above the horizon line, minor pitch
marks occur every 2.5˚.
Red extreme pitch warning chevrons pointing toward the horizon are displayed, starting at 50˚ above and
30˚ below the horizon line.
Figure 2-8 Pitch Attitude Warnings
Nose Low Nose High
