HAZARD AVOIDANCE

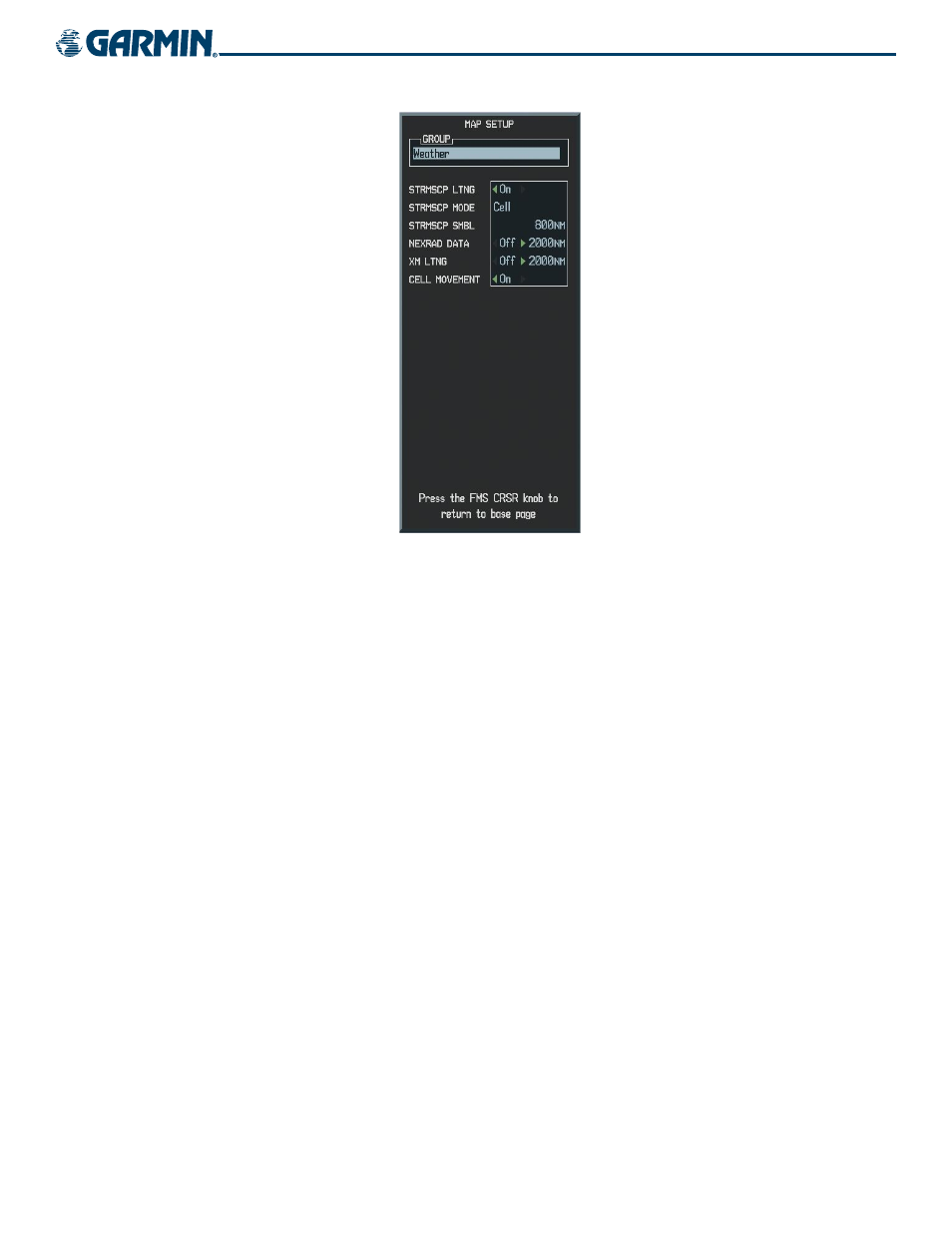

Figure 6-38 Navigation Map Group Menu
CELL AND STRIKE MODE ON THE NAVIGATION MAP
On the Navigation Map, cell mode identifies cells of lightning activity (Figure 6-39). Stormscope identifies
clusters of electrical activity that indicate cells. Strike mode indicates the approximate location of lightning
strikes.
Selecting the ‘cell’ or ‘strike’ mode on the Navigation Map:
1)
Press the MENU Key.
2)
With ‘Map Setup’ selected, press the ENT Key.
3)
Select the ‘Weather’ group.
4)
Press the ENT Key. The cursor flashes on ‘STRMSCP LTNG’.
5)
Turn the
large FMS
Knob to select ‘STRMSCP MODE’.
6)
Turn the
small
FMS Knob to change between ‘CELL’ and ‘STRIKE’ options. When an item is selected, press the
ENT Key.
7)
Press the
FMS
knob to return to the Navigation Map Page.
