SYSTEM OVERVIEW
In addition to the main page groups accessed exclusively using the FMS Knob, there are pages for flight
planning (FPL) and loading procedures (PROC) which are accessed by key. In some instances, softkeys may be
used to access the Procedure Loading pages.
The Flight Plan pages are accessed using the FPL Key on the MFD. Main pages within this group are selected
by turning the small FMS Knob.

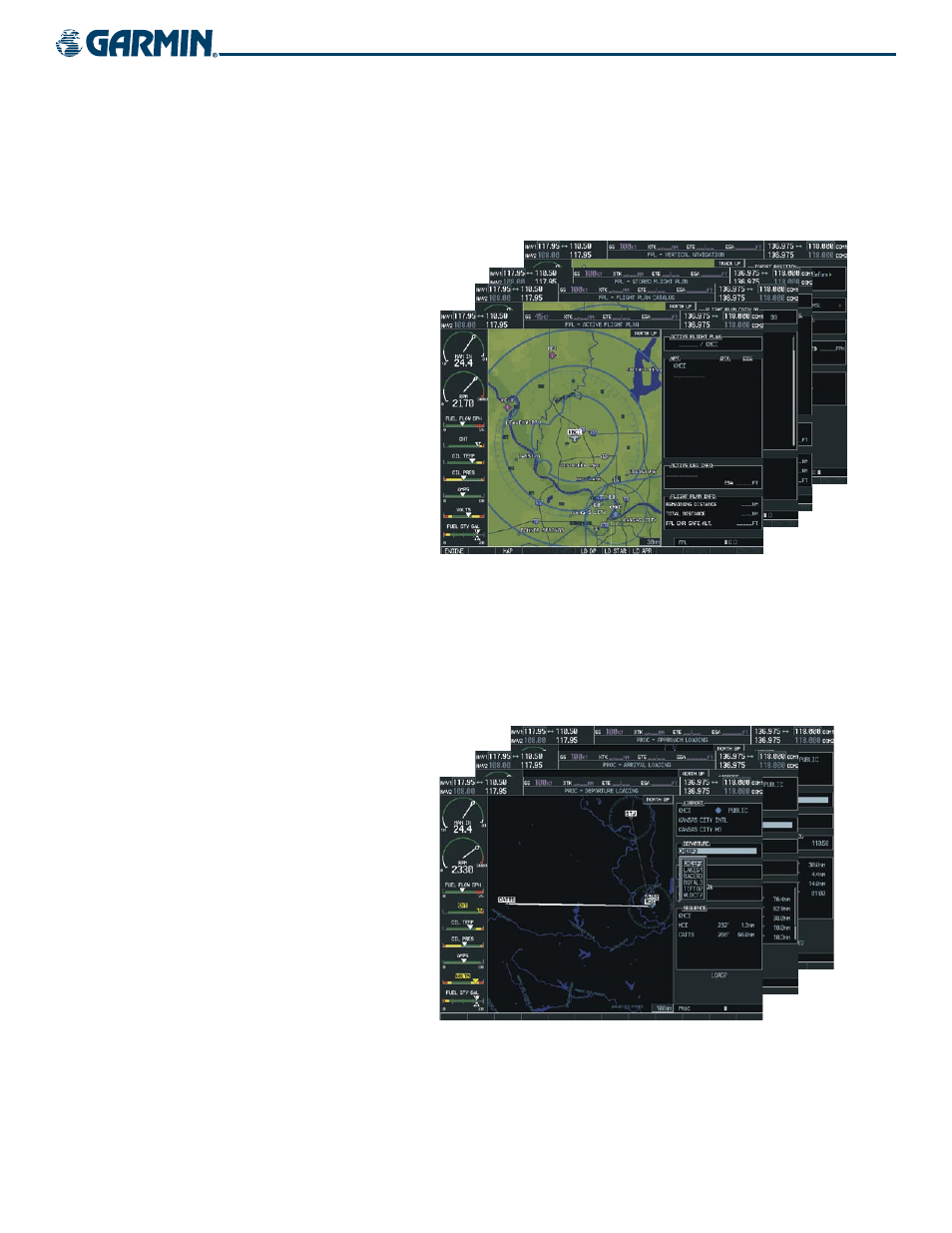

Figure 1-27 Flight Plan Pages
• Flight Plan Page Group (FPL)
Active Flight Plan
Flight Plan Catalog
- Stored Flight Plan
(NEW Softkey)
Vertical Navigation
The Procedure Loading pages may be accessed at any time on the MFD by pressing the PROC Key. A menu
is initialized, and when a departure, approach, or arrival is selected, the appropriate Procedure Loading page is
opened. These pages can also be accessed from the Active and Stored Flight Plan pages using the LD softkeys.
Turning the FMS Knob does not scroll through the Procedure Loading pages (note the single page icon in the
lower right corner).
Figure 1-28 Procedure Loading Pages
• Procedure Loading Page Group (PROC)
Departure Loading
Arrival Loading
Approach Loading
Information on optional electronic checklist pages is offered later in this section. Checklist pages may be
accessed from any page on the MFD using the CHKLIST Softkey.
