560
APPENDIX b
The Display Database Softkey (Figure B-7) is used to place the cursor in the Database Window. Upon
first press of the Display Database Softkey, the softkey will change to a selected state (black text on gray
background) and the cursor will appear in the Database Window. At this point the user can scroll through
all databases in the Database Window to view status information. If the Display Database Softkey is pressed
repeatedly, the softkey will cycle through PFD1, PFD2, and MFD. Database status information in the Database
Window will reflect the database of the selected PFD or MFD. After a successful sync and restart, verify that
the proper databases are now in use on the AUX–System Status Page (Figure B-8).
If an error occurs during the synchronization, an error message will be displayed, followed by the affected
display in the Sync Status section of the Database Window (Figure B-9). If a synchronization completes on
one display, but an error occurs on another, the error message will be displayed with the affected diaplay
listed after it. When an error message (Table B-1) is displayed, the problem must be corrected before the
synchronization can be completed. A power cycle is required to restart synchronization when ‘Card Full’ or
‘Err’ is shown.

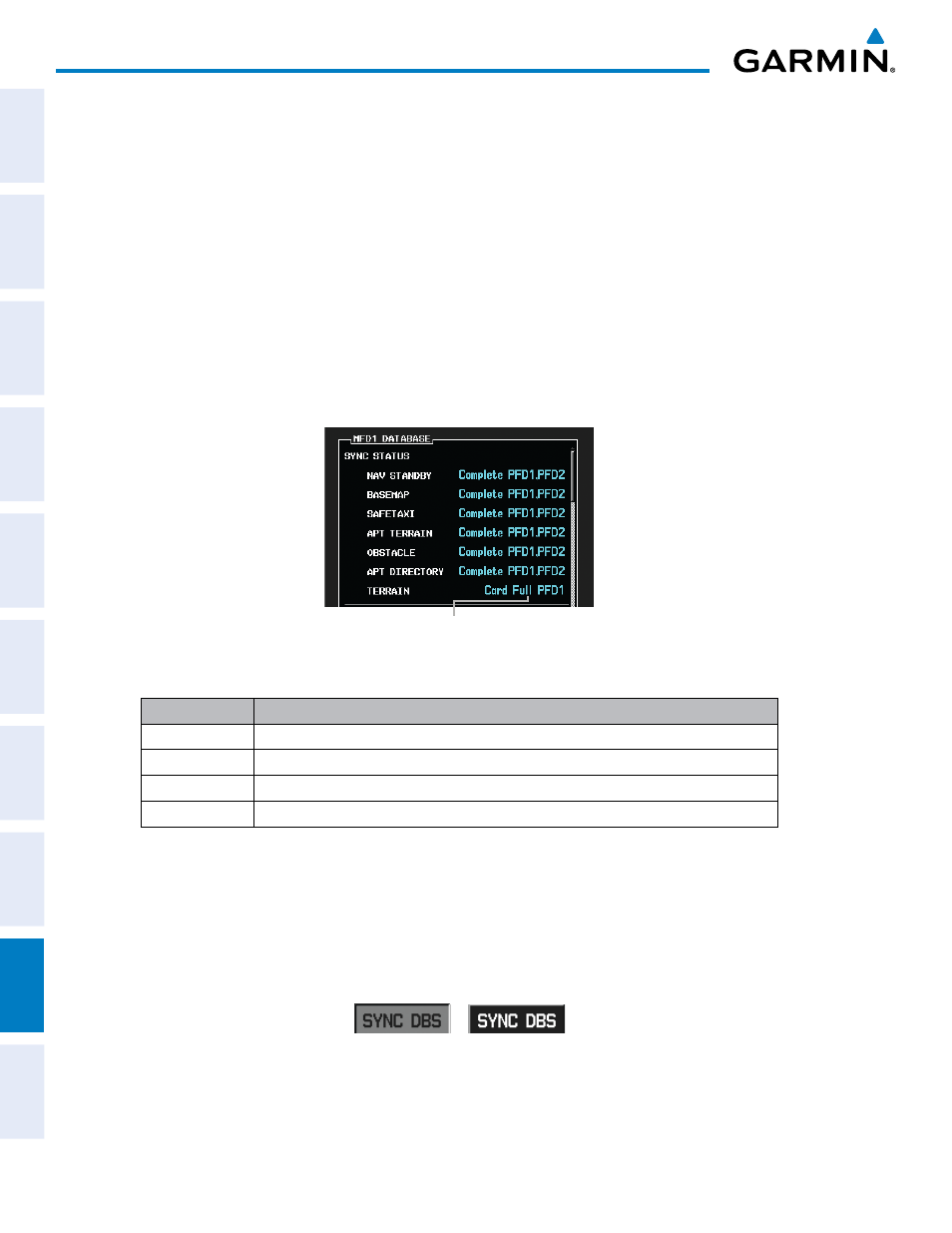

Figure B-9 Synchronization Error Message
Database Synchronization Error Message
Error Message Description
Canceled An active synchronization has been canceled using the SYNC DBS Softkey
Card Full SD card does not contain sufficient memory
Err Displayed for all other errors that may cause the synchronization process to be halted
Timeout System timed-out prior to the database transfer completing
Table B-1
The SYNC DBS Softkey (Figure B-10) on the AUX–System Status Page allows the flight crew control over
the automatic database synchronization feature. When database synchronization is enabled, the SYNC DBS
Softkey is displayed as black text on gray background. When database synchronization is disabled, the
softkey is displayed as white text on black background. If the SYNC DBS Softkey is pressed while a database
synchronization is in progress, the current synchronization process will be canceled.
Figure B-10 SYNC DBS Softkey
Disabled Enabled
