Garmin G1000 Pilot’s Guide for the Piper PA-46 Mirage/Matrix 190-01108-00 Rev. B 382
HAZARD AVOIDANCE
SY
STEM
O
VER
VIEW
FLIGHT
INSTRUMENTS
EICAS
AUDIO P
ANEL
& CNS
FLIGHT
MANA
GEMENT
HAZARD
AV
OID
ANCE
AFCS
ADDITIONAL FEA
TURES
APPENDICES
INDEX
SY
STEM
O
VER
VIEW
FLIGHT
INSTRUMENTS
EICAS
AUDIO P
ANEL
& CNS
FLIGHT
MANA
GEMENT
HAZARD
AV
OID
ANCE
AFCS
ADDITIONAL FEA
TURES
APPENDICES
INDEX
Required Terrain Clearance
0
100
200
300
400
500
600
700
800
0 5 10 15 20 25 30
Distance From Runway (NM)
Required Terrain Clearance (FT)
RTC Level (FT) RTC Descending (FT)

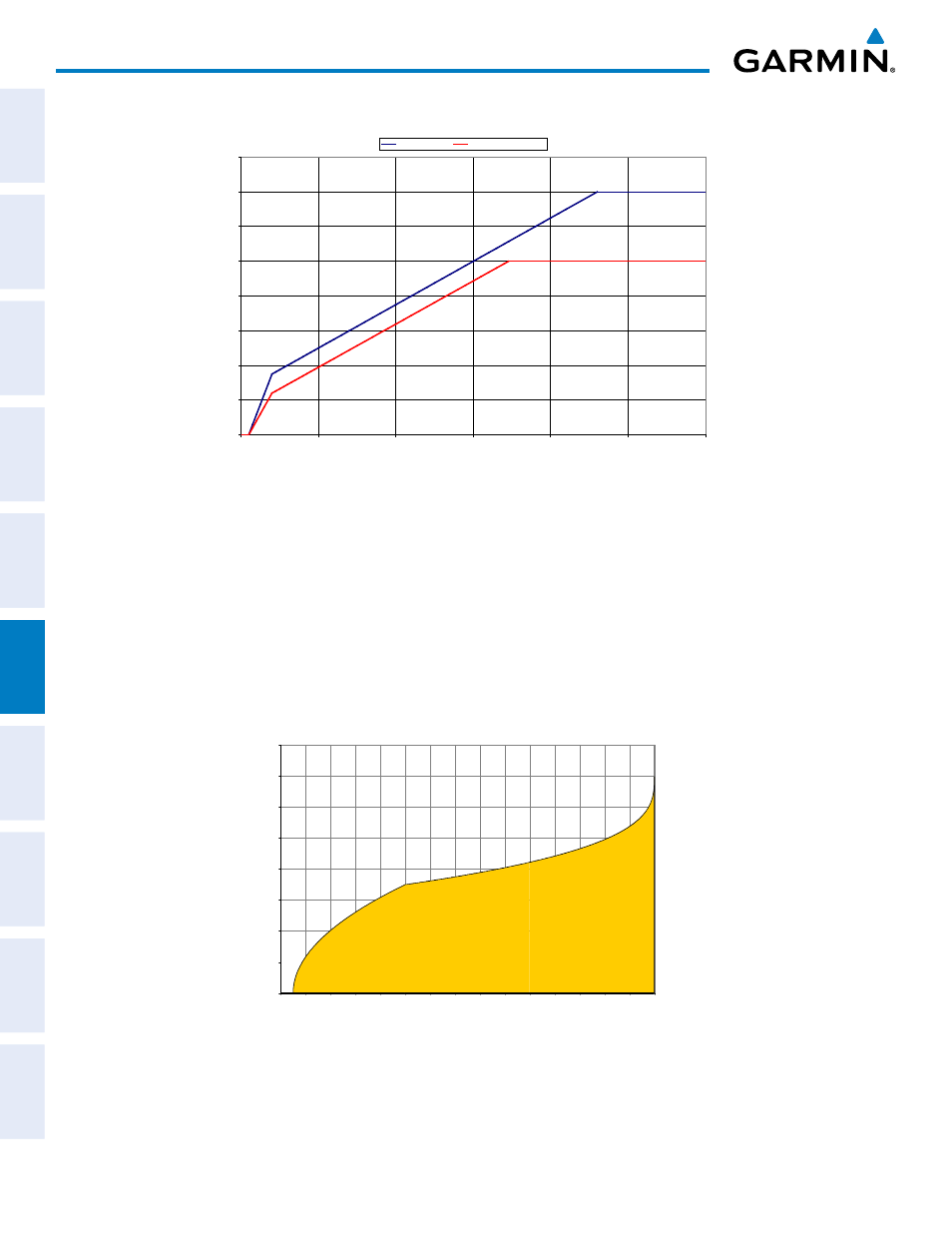

Figure 6-101 FLTA Alert Minimum Terrain and Obstacle Clearance Values
Distance From Runway (NM)
Minimum
Terr
ain/Obstacle Clear
ance (FT)
FLTA alerts are automatically inhibited when the aircraft is less than 200 feet above the destination runway
elevation while within 0.5 nm of the approach runway or the aircraft is between runway ends.
PREMATURE DESCENT ALERTING
A Premature Descent Alert (PDA) is issued when the system detects that the aircraft is significantly
below the normal approach path to a runway (Figure 6-102).
PDA alerting begins when the aircraft is below 700 feet AGL within 15 nm of the destination airport and
ends when the aircraft is 0.5 nm from the runway threshold.
Figure 6-102 PDA Alerting Threshold
0
100
200
300
400
500
600
700
800
0 1 2 3 4 5 6 7 8 9
10 11 12 13 14 15
Height
Above Destination (F
eet)
Distance to Destination (NM)
PDA ALERTING AREA
PDA and FLTA aural and visual alerts can be manually inhibited. Discretion should be used when
inhibiting TAWS-B and the system should be enabled when appropriate. When TAWS-B is inhibited, the
alert annunciation ‘TAWS INH’ is shown on the PFD and MFD (Figure 6-103).
