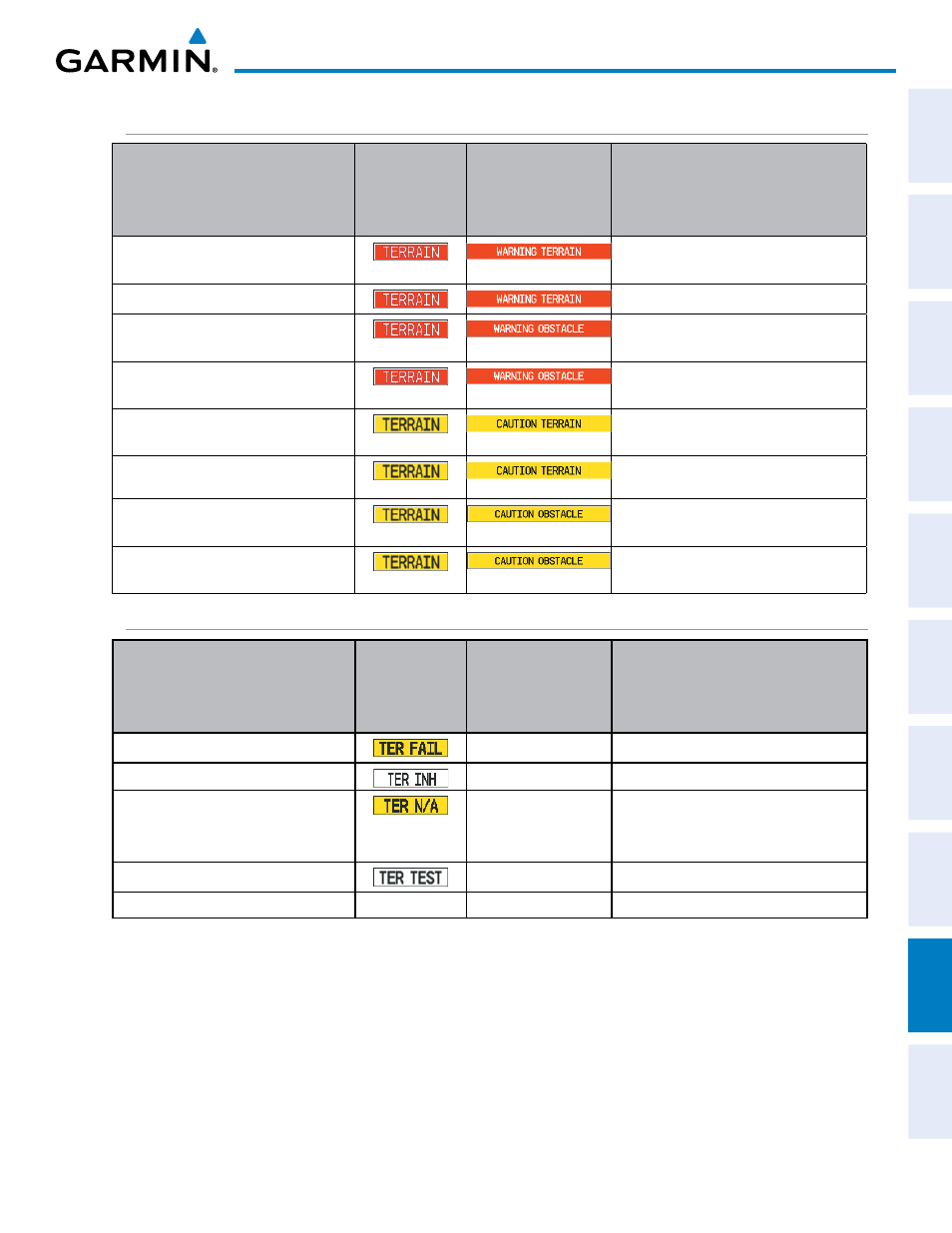

APPENDIX A
TERRAIN-SVS ALERTS
Alert Type
PFD/MFD
TERRAIN-SVS
Page
Annunciation
MFD
Pop-Up Alert
Aural Message
Reduced Required Terrain Clearance
Warning (RTC) “Warning; Terrain, Terrain”
Imminent Terrain Impact Warning (ITI) “Warning; Terrain, Terrain”
Reduced Required Obstacle Clearance
Warning (ROC) “Warning; Obstacle, Obstacle”
Imminent Obstacle Impact Warning
(IOI) “Warning; Obstacle, Obstacle”
Reduced Required Terrain Clearance
Caution (RTC) “Caution; Terrain, Terrain”
Imminent Terrain Impact Caution (ITI) “Caution; Terrain, Terrain”
Reduced Required Obstacle Clearance
Caution (ROC) “Caution; Obstacle, Obstacle”
Imminent Obstacle Impact Caution
(IOI) “Caution; Obstacle, Obstacle”
TERRAIN-SVS SYSTEM STATUS ANNUNCIATIONS
Alert Type
PFD/MFD
TERRAIN-SVS
Page
Annunciation
MFD
Pop-Up Alert
Aural Message
System Test fail None “Terrain System Failure”
Terrain Alerting is disabled None None
No GPS position or excessively
degraded GPS signal None “Terrain System Not Available”
“Terrain Available” will be heard when
sufficient GPS signal is received.
System Test in progress None None
System Test pass None None Chime
