Maps other than the Weather Data Link Page use settings based on those selected for the Navigation Map
Page.
Setting up and customizing weather data for the Navigation Map Page:
1)
Select the Navigation Map Page.
2)
Press the MENU Key.
3)
With Map Setup highlighted, press the ENT Key (Figure 6-6).
4)
Turn the small FMS Knob to select the Weather Group and press the ENT Key (Figure 6-7).
5)
Turn the large FMS Knob or press the ENT Key to scroll through product selections (Figure 6-8).
6)
Turn the small FMS Knob to scroll through options for each product (ON/OFF, range settings).
7)
Press the ENT Key to select an option.
8)
Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings.

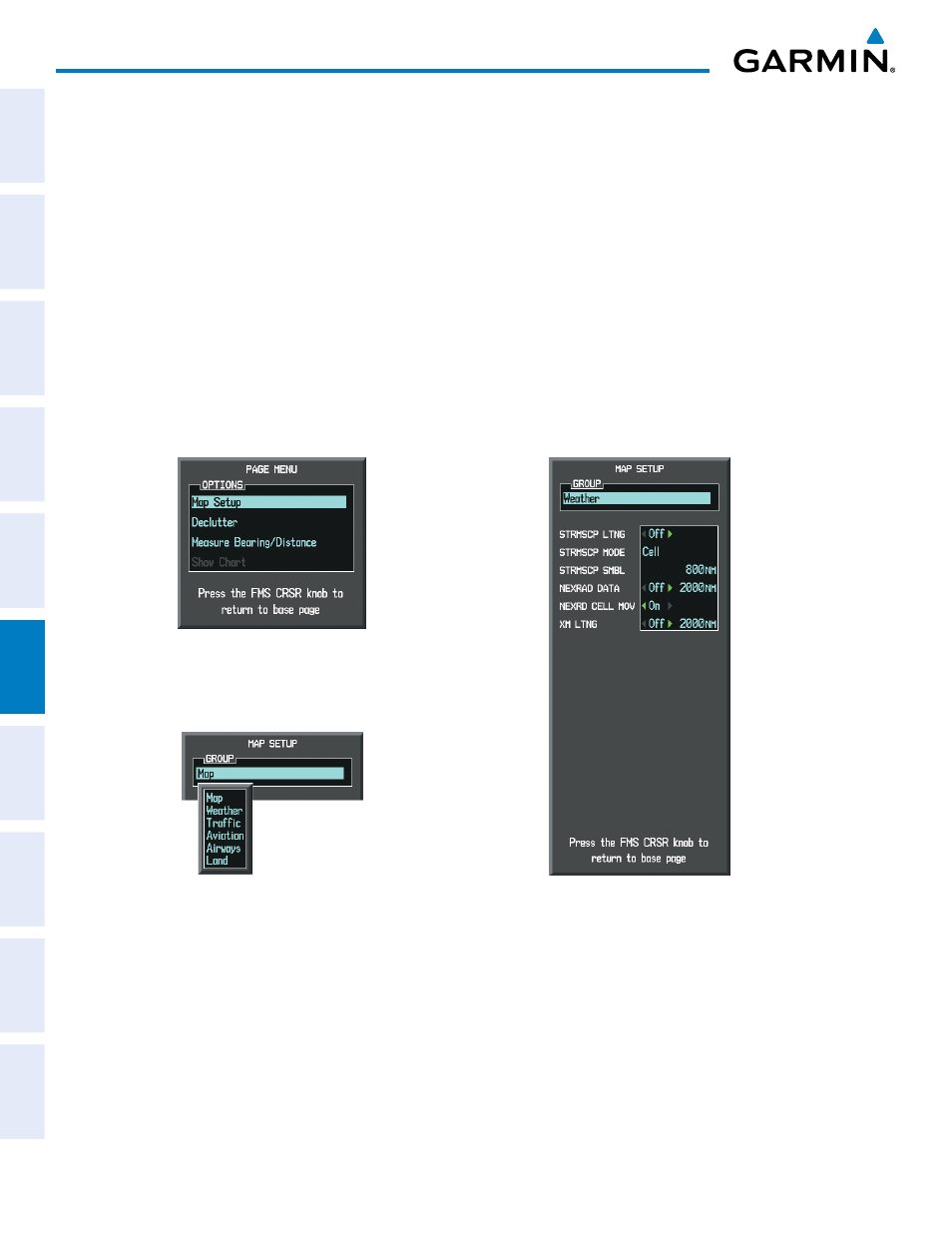

Figure 6-7 Navigation Map Page Setup Menu
Figure 6-6 Navigation Map Page Menu
Figure 6-8 Navigation Map Page Setup Menu, Weather Group
