Manual frequency tuning from the MFD/PFD Control Unit
1) Press the COM Key to select the COM frequency box.
2) Turn the NAV/COM Knob to tune the desired frequency in the COM Tuning Box (large knob for MHz; small knob
for kHz).
3) Press the Frequency Transfer Key to transfer the frequency to the active field.

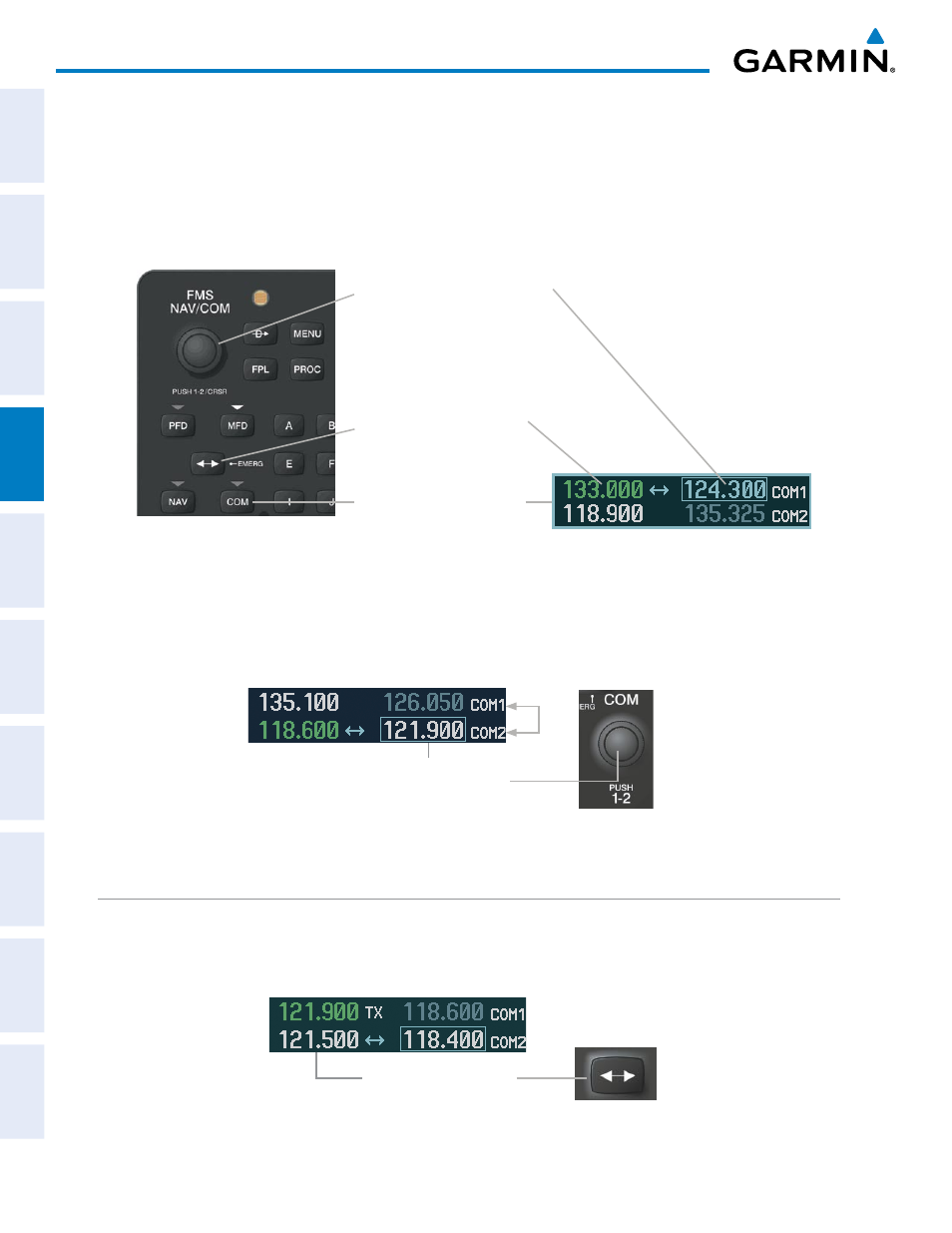

Figure 4-8 Frequency Tuning from the MFD/PFD Control Unit
Second, Turn the NAV/COM Knob
to Enter a Frequency into the
COM Standby Frequency Field
Third, Press the Frequency
Transfer Key to Move the
Frequency to the Active Field
First, Press the COM Key to
Place the Tuning Selection
Box on the COM frequencies
SELECTING THE RADIO TO BE TUNED
Press the small COM Knob to transfer the frequency tuning box and Frequency Transfer Arrow between the
upper and lower radio frequency fields.
Figure 4-9 Switching COM Tuning Boxes
Press the COM Knob to
Switch the Tuning Box From
One COM Radio to the Other
QUICk-TUNING AND ACTIVATING 121.500 MHZ
Pressing and holding the COM Frequency Transfer Key for two seconds automatically loads the emergency
COM frequency (121.500 MHz) in the active field of the COM radio selected for tuning (the one with the
transfer arrow). In the example shown, pressing the Audio Panel COM2 MIC Key activates the transceiver.
Figure 4-10 Quickly Tuning 121.500 MHz
Press for Two Seconds to
Load 121.500 MHz
