In the example shown in Figure 8-26, the Class B Chart is selected. Pressing the ENT Key displays the
Charlotte Class B Airspace Chart (Figure 8-27).

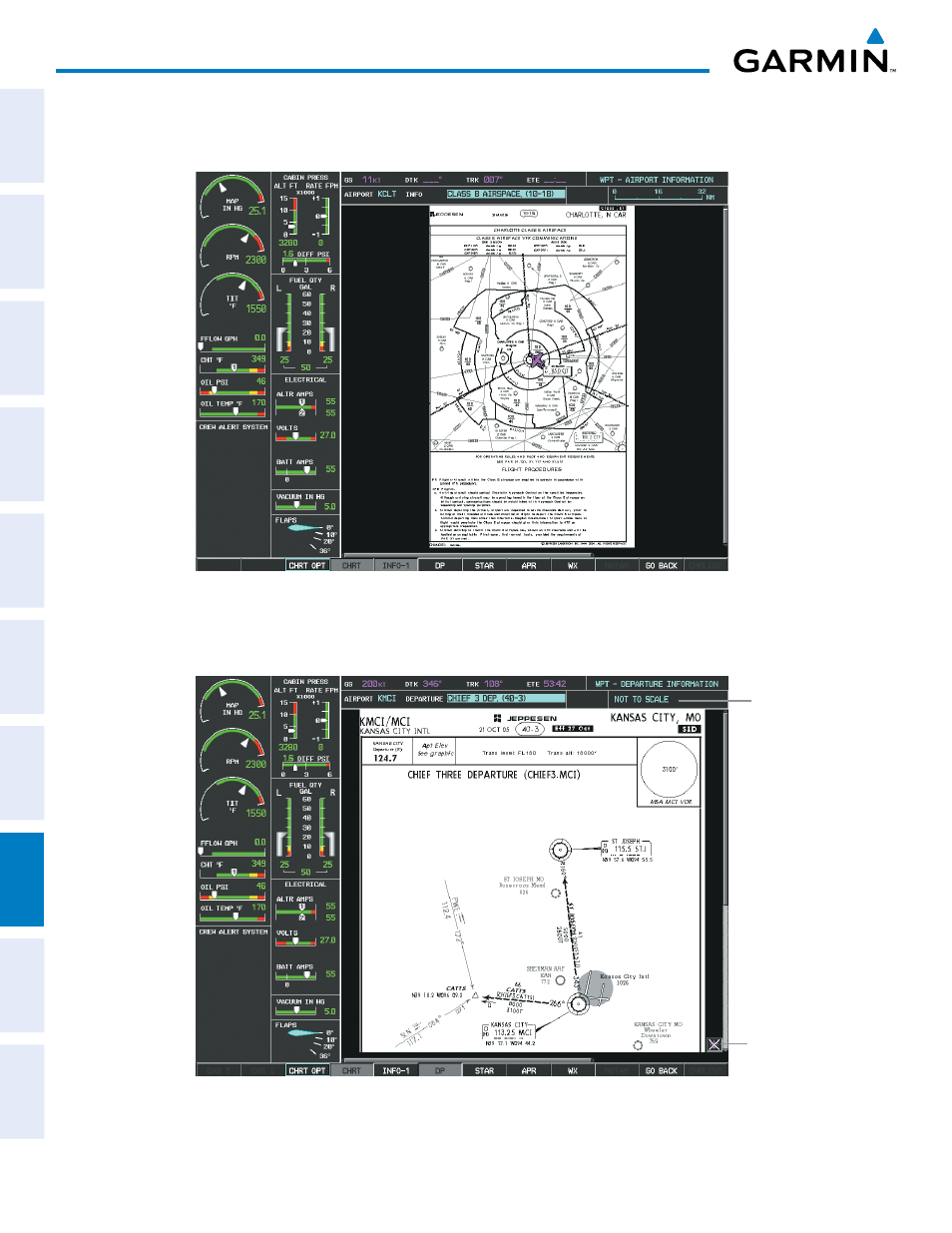

Figure 8-27 Airport Information Page, Class B Chart Selected from INFO View
Selecting the DP Softkey displays the Departure Procedure Chart if available.
Chart Not
To Scale
Aircraft Not
Shown Icon
Figure 8-28 Departure Information Page
