Garmin G1000 Pilot’s Guide for the Piper PA-46 Mirage/Matrix 190-01108-00 Rev. B 410
AUTOMATIC FLIGHT CONTROL SYSTEM
SY
STEM
O
VER
VIEW
FLIGHT
INSTRUMENTS
EICAS
AUDIO P
ANEL
& CNS
FLIGHT
MANA
GEMENT
HAZARD
AV
OID
ANCE
AFCS
ADDITIONAL FEA
TURES
APPENDICES
INDEX
AFCS STATUS bOX
Flight director mode annunciations are displayed on the PFDs when the flight director is active. Flight
director selection and autopilot and yaw damper statuses are shown in the center of the AFCS Status Box.
Lateral flight director modes are displayed on the left and vertical on the right. Armed modes are displayed in
white and active in green.
GPS is
Selected
Navigation
Source
Command
Bars
Vertical
Speed
Reference
Selected
Altitude

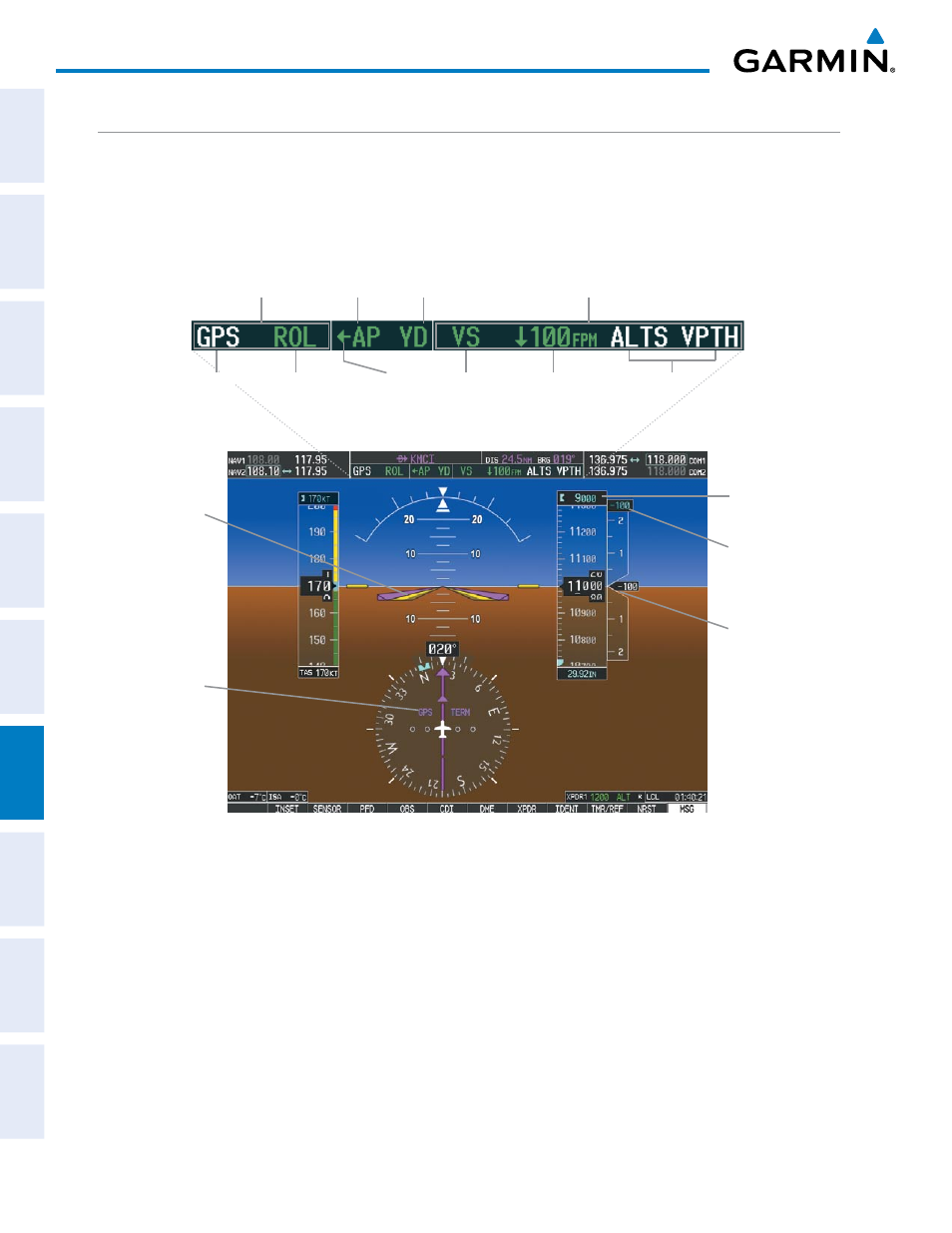

Figure 7-2 PFD AFCS Display
AFCS Status Box
Flight Director
Indicator Arrow
Active Active
Yaw
Damper
Status Lateral Modes
Autopilot
Status Vertical Modes
Mode
Reference
Armed Armed
Vertical
Speed
Reference
Bug
