Displaying XM Lightning information:
1) Select the MAP Softkey (for the PFD Inset Map, select the INSET Softkey). This step is not necessary on the
Weather Data Link Page.
2) Select the XM LTNG Softkey (LTNG Softkey on the Weather Data Link Page).
To display the XM Lightning legend on the Weather Data Link Page, select the LEGEND Softkey when XM
Lightning is selected for display.
Figure 6-19 Lightning Legend
CELL MOVEMENT

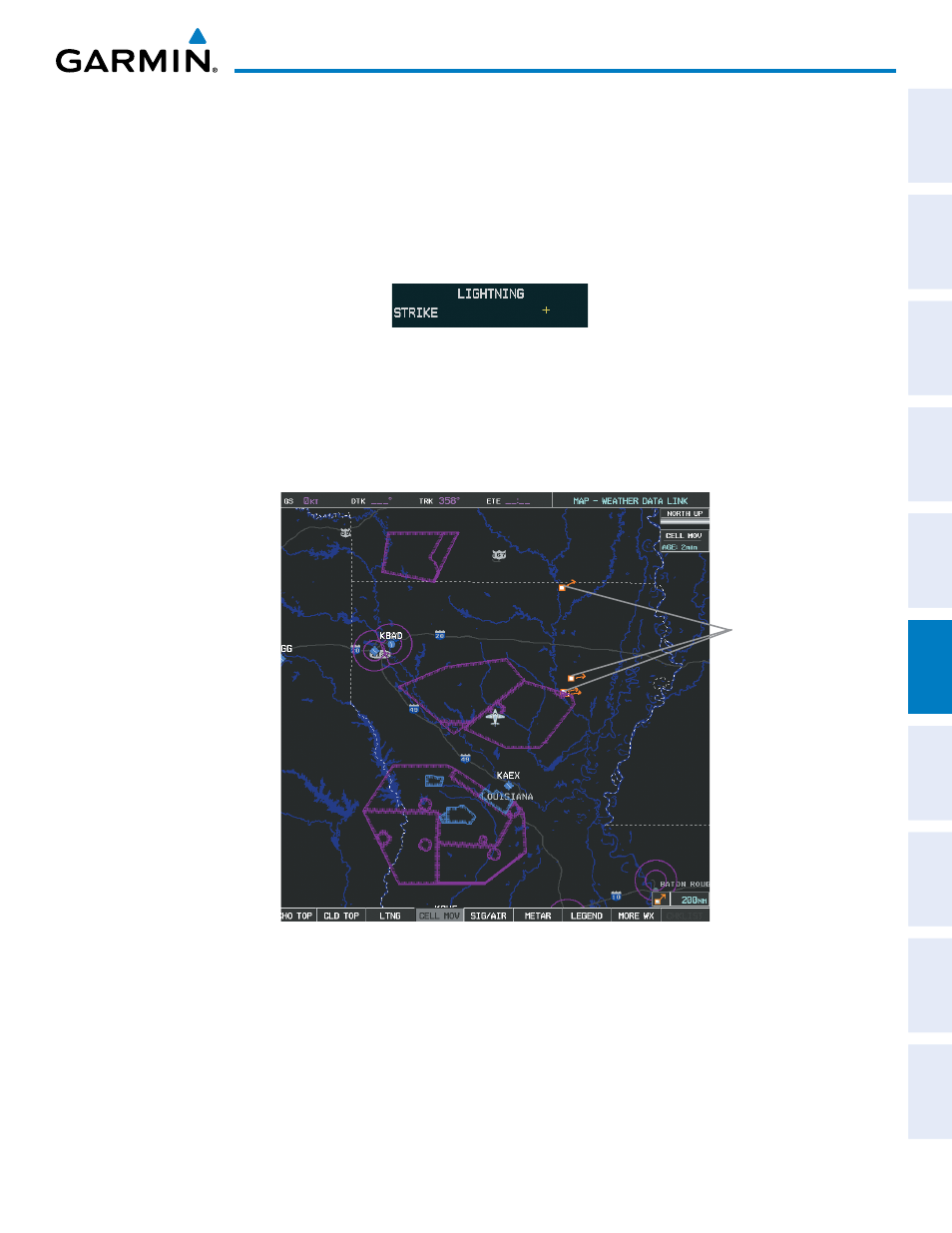

Cell Movement data (Figure 6-20) shows the location and movement of storm cells as identified by the
ground-based system. Cells are represented by yellow squares, with direction of movement indicated with
short, orange arrows.
Figure 6-20 Cell Movement Data
Storm
Cells
On most applicable maps, Cell Movement data is selected for display along with NEXRAD. On the Weather
Data Link Page, Cell Movement data can be selected independently. Cell Movement data can be displayed
on the following maps:
• PFD Inset Map
•Navigation Map
• AUX - Trip Planning Page
• Nearest Pages
