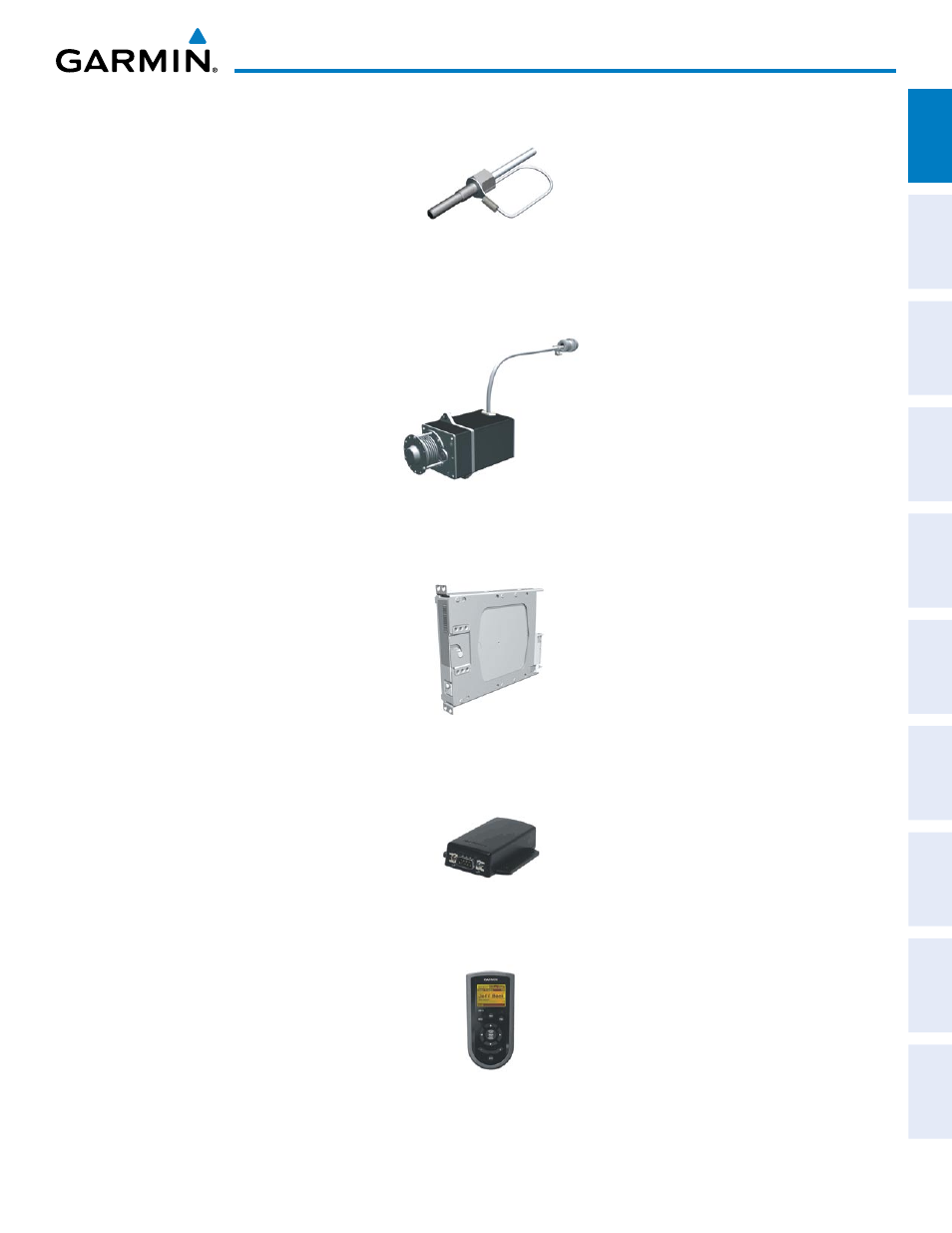

• GTP 59 (2) – Provides Outside Air Temperature (OAT) data to the on-side GDC 74A.
• GSA 81 (3), GSA 80 (1) and GSM 85A (4) – The GSA 81/80 servos are used for the automatic control of roll,
pitch, and yaw, and pitch trim. These units interface with each GIA 63W.
The GSM 85A servo gearbox is responsible for transferring the output torque of the GSA 81 servo actuator to
the mechanical flight-control surface linkage.
• GDL 69A (1)(optional) – A satellite radio receiver that provides real-time weather information to the G1000
MFD (and, indirectly, to the inset map of the PFD) as well as digital audio entertainment. The GDL 69A
communicates with PFD1 via HSDB connection. A subscription to the XM Satellite Radio service is required to
enable the GDL 69A capability.
• GRT 10 (1, optional) – A transceiver that provides wireless functionality to the GDL 69A for use of the GRC 10
Remote Control.
• GRC 10 (1, optional) – A wireless hand-held unit that provides remote control of the XM Radio functions.
