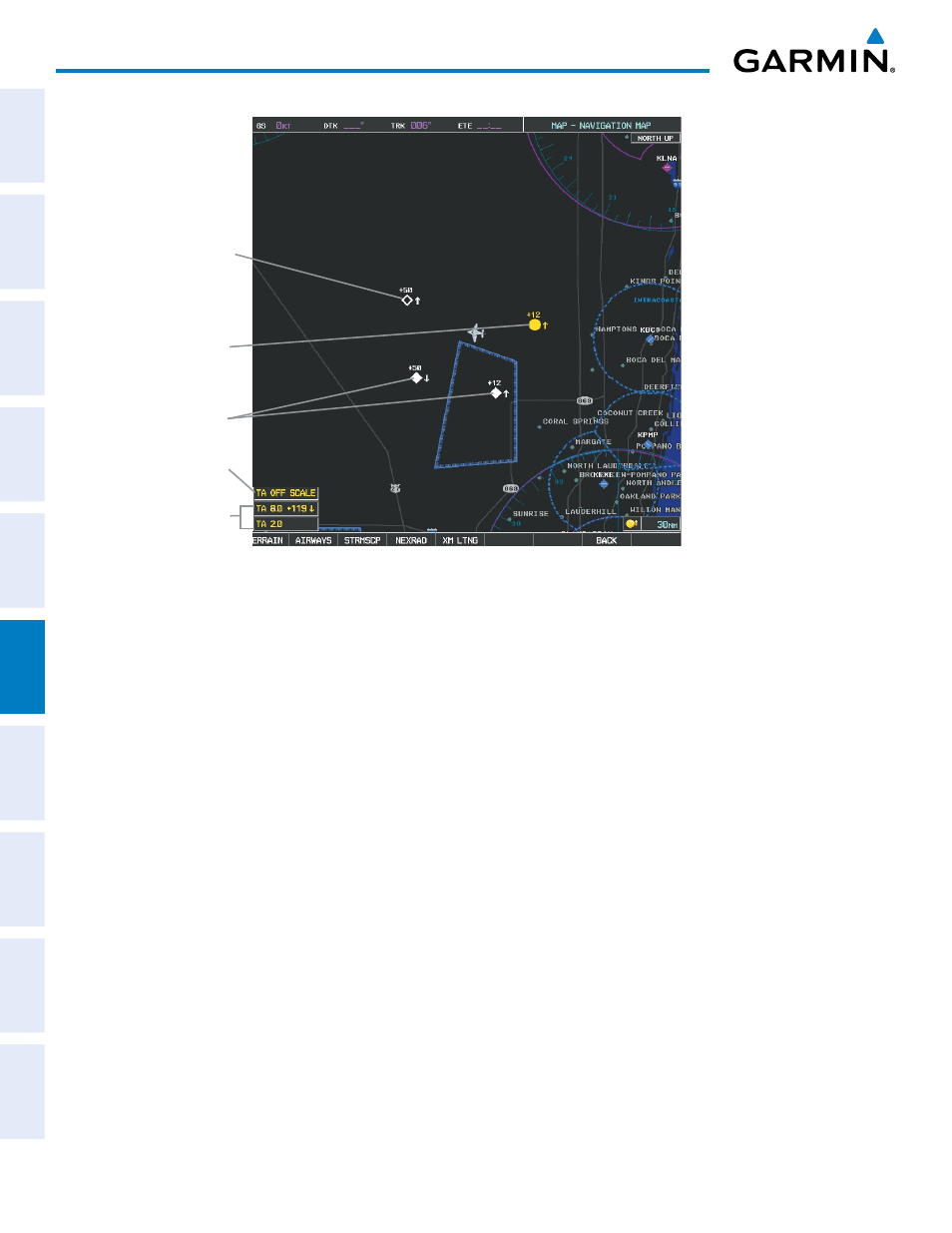

Figure 6-115 TAS Traffic on Navigation Map
TA Off Scale
Banner
Non-Bearing
Traffic Advisories
Non-Threat
Traffic, 5000'
Above,
Climbing
Proximity
Traffic
Traffic
Advisory,
1200' Above,
Climbing
Displaying traffic information (PFD Inset Map):
1) Select the INSET Softkey.
2) Select the TRAFFIC Softkey to display traffic data on the inset map (TRFC-1).
3) Select the softkey again to display the traffic-only inset (TRFC-2).
4) Select the softkey again to remove traffic data.
The Navigation Map Page Setup Menu also controls the display of traffic. The setup menu controls the map
range settings. Traffic data symbols and labels can be decluttered from the display. If a map range larger than
the map range setting is selected, the data is removed from the map. Maps besides the Traffic Map Page use
settings based on those selected for the Navigation Map Page.
