190-01108-00 Rev. B Garmin G1000 Pilot’s Guide for the Piper PA-46 Mirage/Matrix 91
ENGINE INDICATION AND CREW ALERTING SYSTEM
SY
STEM
O
VER
VIEW
FLIGHT
INSTRUMENTS
EICAS
AUDIO P
ANEL
& CNS
FLIGHT
MANA
GEMENT
HAZARD
AV
OID
ANCE
AFCS
ADDITIONAL
FEA
TURES
APPENDICES
INDEX
CYLINDER HEAD TEMPERATURE
The Cylinder Head Temperature (CHT) gauge (Figure 3-9) is shown below the fuel flow gauge. It displays
the head temperature of the hottest cylinder (number shown in the triangular pointer) in °F shown along a
horizontal bar. A caution or warning is issued for excessive CHT.
The Sys-CHT Page (Figure 3-9) displays the CHT Bar Graph Display for all cylinders. To access the
Sys-CHT Page, select the SYSTEM Softkey on the MFD, or turn the large FMS Knob to the Sys-CHT Page.
Head temperatures are shown in °F; a readout for each cylinder is shown at the top of the graph. A cylinder
with a normal range CHT appears as a white bar, while a caution or warning range in shown as a yellow or red
bar respectively. The CHT Bar Graph Display can be removed by selecting the SYSTEM Softkey again, or by
turning the large FMS Knob to choose another page.

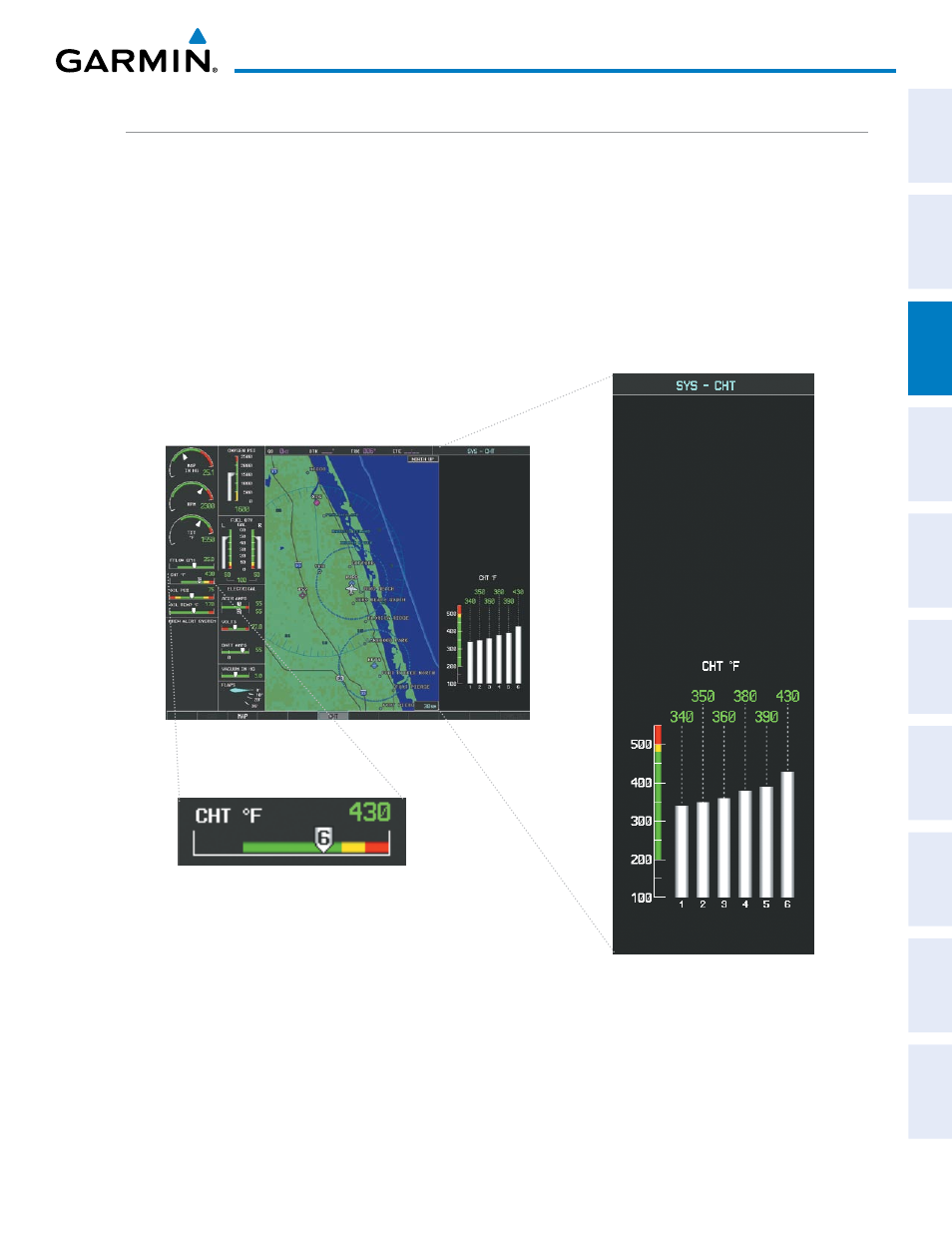

Figure 3-9 Cylinder Head Temperature Gauge and Sys - CHT Page Bar Graph Display
